14
Instruments

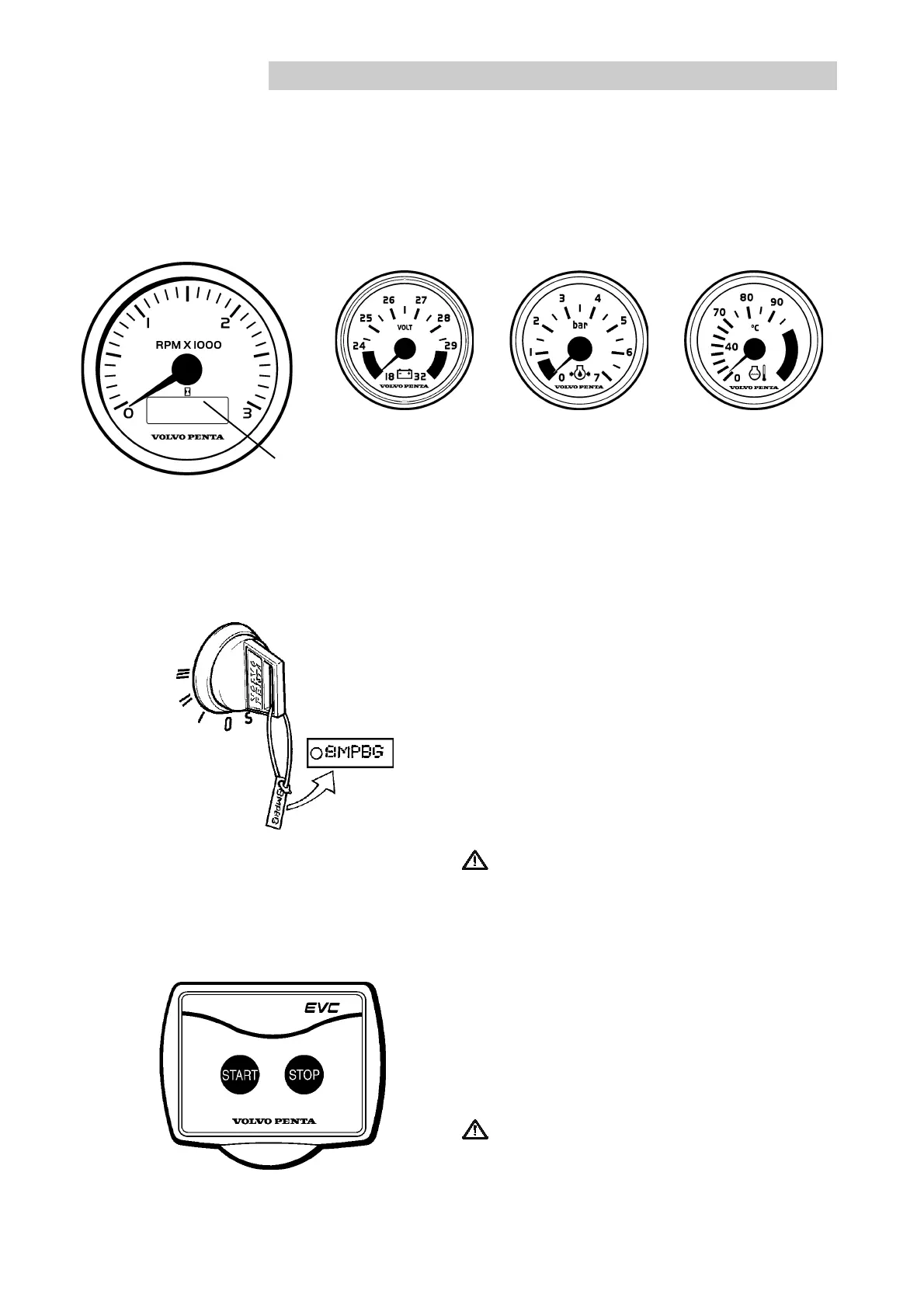

This chapter describes the instrument and control panels sold by Volvo Penta for your engine.
If you want to supplement the instrumentation, or if your boat is equipped with instruments not described here, or
you are not sure about their function, please contact your Volvo Penta dealer.
1. Tachometer
2. Voltmeter
3. Oil pressure gauge
4. Temperature gauge
5. Hours counter
Ignition lock
A tab with the key code accompanies the ignition keys,
and is used to order extra ignition keys. Do not store the
code where it is accessible to unauthorized persons.
S = Stop position.
0 = Key can be inserted and removed.
I = System voltage on (drive position).
II = Not used.
III = Start position.
IMPORTANT! Read the starting instructions in the
“Engine starting” chapter.
2.
3.
4.
5.
1.
Instruments
Start/stop panel
The start/stop panel is used to start or stop the
engine. The starter key in the main control panel must
be in position “I” (driving position) for the engine to
start. The engine can only be stopped if the control
panel is activated.
IMPORTANT! Read the starting instructions in
the “Engine starting” chapter.
