22
Controls

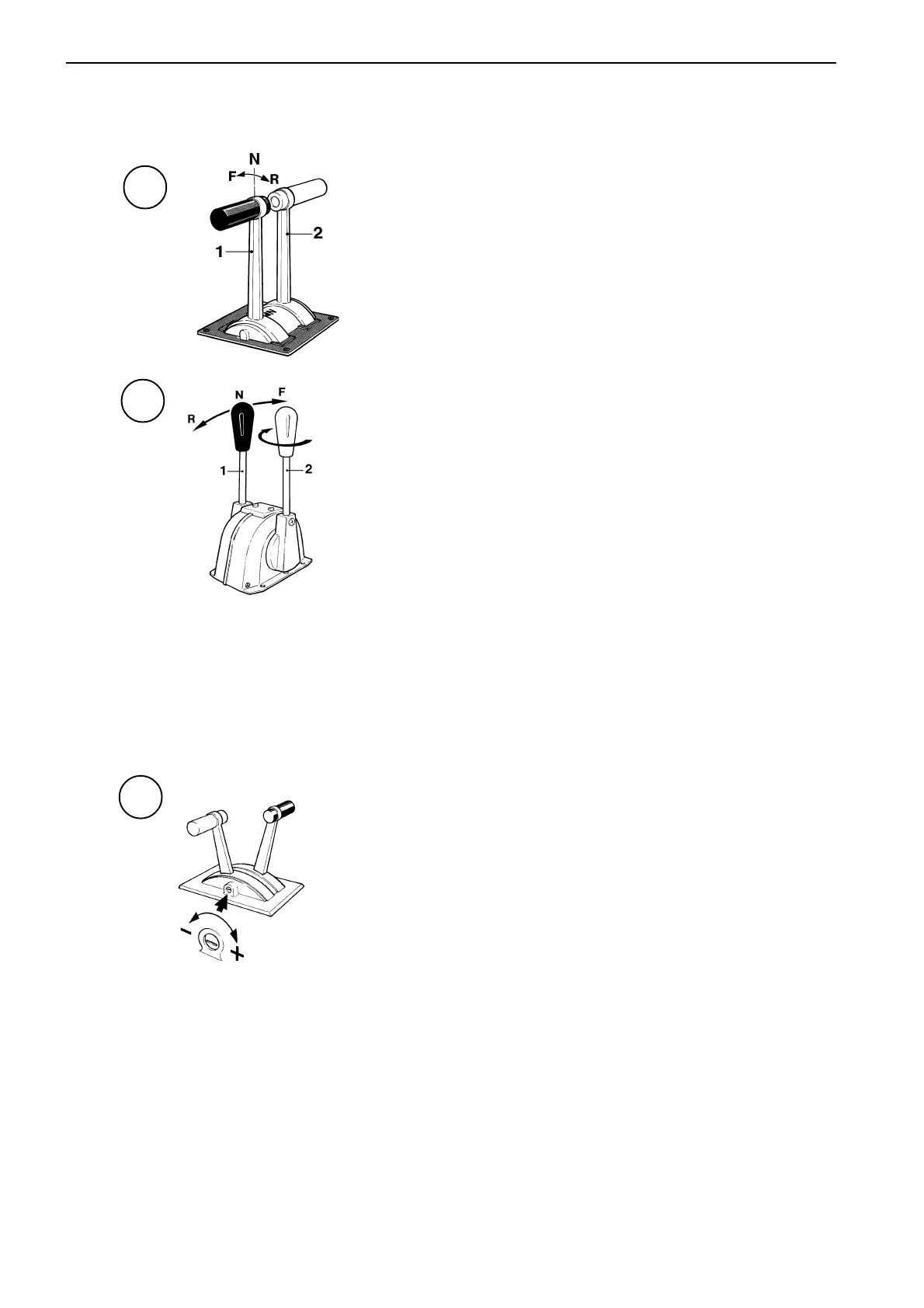

Two lever control. Mechanical
Operation
The two lever control has separate levers for shifting (1) and
speed control (2).
The control has a neutral position switch that only allows the
engine to be started with the reversing gear in neutral.
Black lever (1):
N = Neutral position. Reversing gear is disengaged.
F = Reversing gear engaged for movement ahead.
R = Reversing gear engaged for movement astern.
Red lever (2):
Engine speed control.
A
B
A
Friction brake
The control has an adjustable friction brake for speed con-
trol.
Adjust the friction brake by turning the screw (control A) or
lever (control B).
Turn clockwise (+) for heavier lever movement or anti-
clockwise (–) for lighter lever movement.
