Depth Offset
1 Go from the settings menu to Set Offset and press
to reach the setting.
2
Use to set the depth compensation value
so that it corresponds to the boat's lowest point or
the waterline. The echo-sounder can be placed
anywhere between these two points.
Set the echo-sounder/waterline or echo-sounder/
lowest point distance to the depth to be displayed.
The distance between the echo-sounder (B) and
the water line (A) has a positive (+) value.
The distance between the echo-sounder (B) and
the boat's lowest point (C) has a negative (–)
number.
Press
to confirm the setting.
Depth Alarm
When the depth is less than the alarm setting, a
message will be shown on the display, followed by an
audible signal.
The message will be displayed every 30 seconds until
the depth exceeds the alarm level.
Confirm the alarm by pressing
.
Signal fault
If the signal from the depth alarm is lost, e.g. if the
sensor is not working, a message is displayed stating
that the signal has been lost.

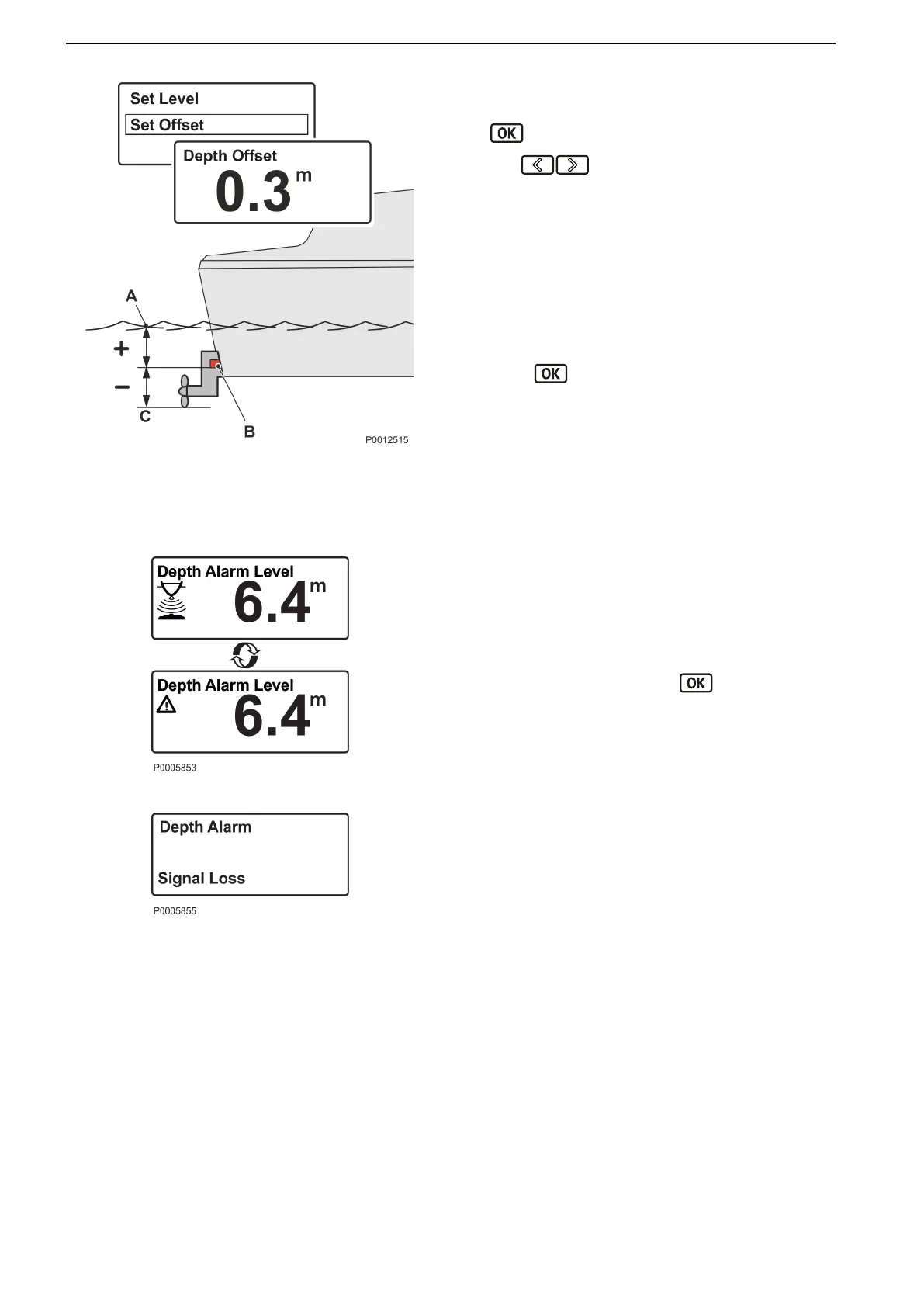

Set Offset
A Waterline
B Echo-sounder
C Lowest point
Depth Alarm
Depth Alarm / Signal Loss
Calibration and Settings
