Volvo V50 2012 - Distribution Box in Engine Compartment F11-F20

TP 39212202 C30/S40 (04-)/V50/C70 (06-) 2012 12
Fuses

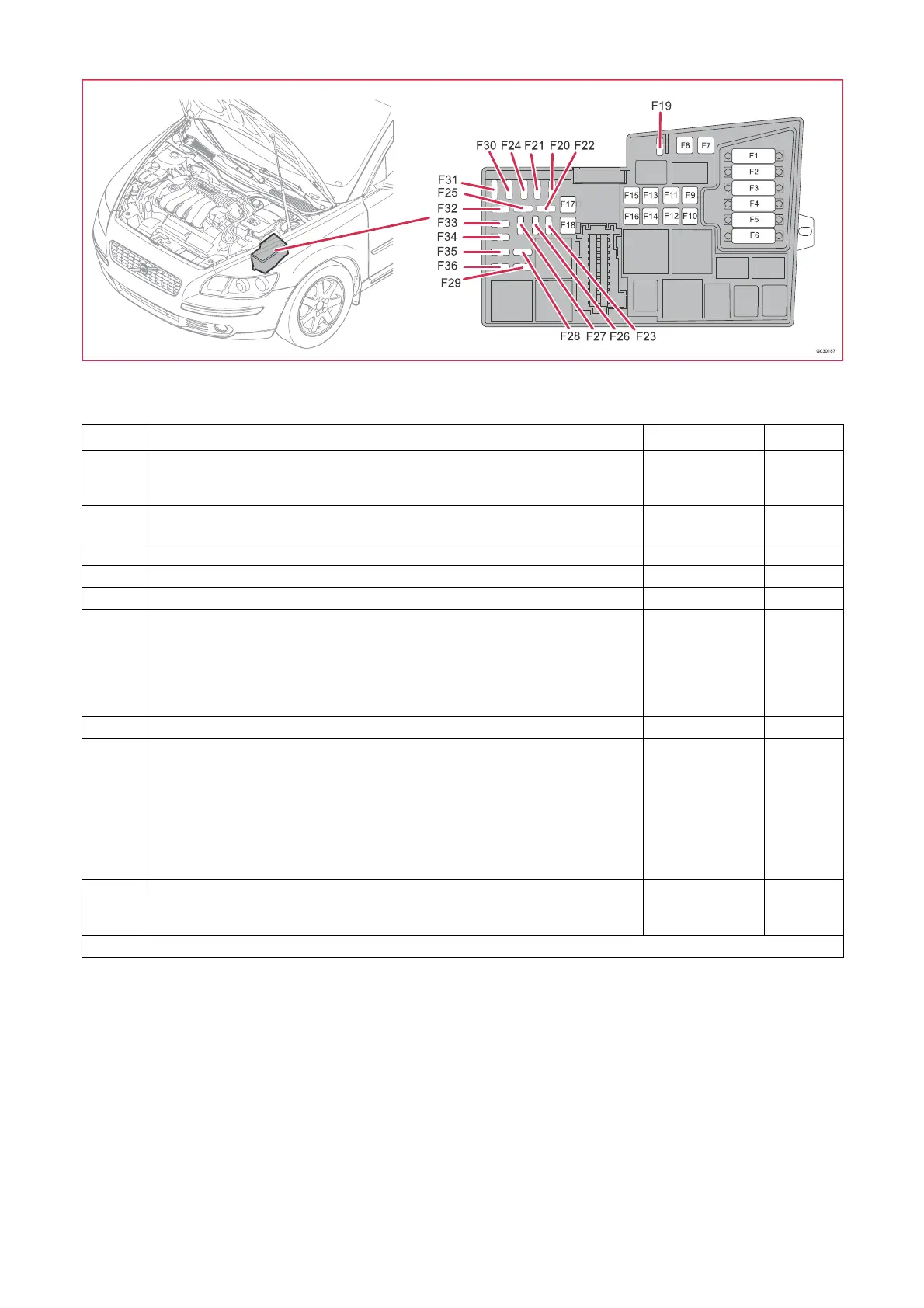

Distribution box in engine compartment F11-F20
15/31 Distribution box in engine compartment
No. Fuse function via A
F11 2/182 Relay, headlight washer motor
4/59 Convertible Roof Module (CRM), C70
6/104 Pump, high pressure headlight washer
-
-
2/182
20
F12 2/82 Relay, heated rear window
9/2 Heated rear window
-
2/82, 16/141
30
F13 6/25 Starter motor 2/35 30
F14 4/110 Trailer Module (TRM) - 40
F15 4/59 Convertible Roof Module (CRM), C70 30
F16 2/159 Infotainment relay, S40/V50/C30
16/105 Audio module (AUD), S40/V50/C30
F22 Fuse, Distribution box in engine compartment, S40/V50/C30
F43 Fuse in the Central Electronic Module (CEM), S40/V50/C30
F64 Fuse in the Central Electronic Module (CEM), S40/V50/C30
F65-F67 Fuses in the Central Electronic Module (CEM), S40/V50/C30
-
-
-
-
-
2/159
30
F17 6/1 Wiper Motor Module (WMM) - 30
F18 2/80 Relay, reversing lights
2/89 Relay, interior lighting
4/56 Central Electronic Module (CEM)
F46-F47 Fuses in the Central Electronic Module (CEM)
F56-F57 Fuses in the Central Electronic Module (CEM)
F79 Fuse in the Central Electronic Module (CEM)
F81-F83 Fuses in the Central Electronic Module (CEM)
F86 Fuse in the Central Electronic Module (CEM)
-
-
-
2/89
-
2/80
-
2/89
40
F20 2/17 Relay, horn
16/10 Horn 1
16/11 Horn 2
-
2/17
2/17
15
continues
