TP 39212202 C30/S40 (04-)/V50/C70 (06-) 2012 15
Fuses

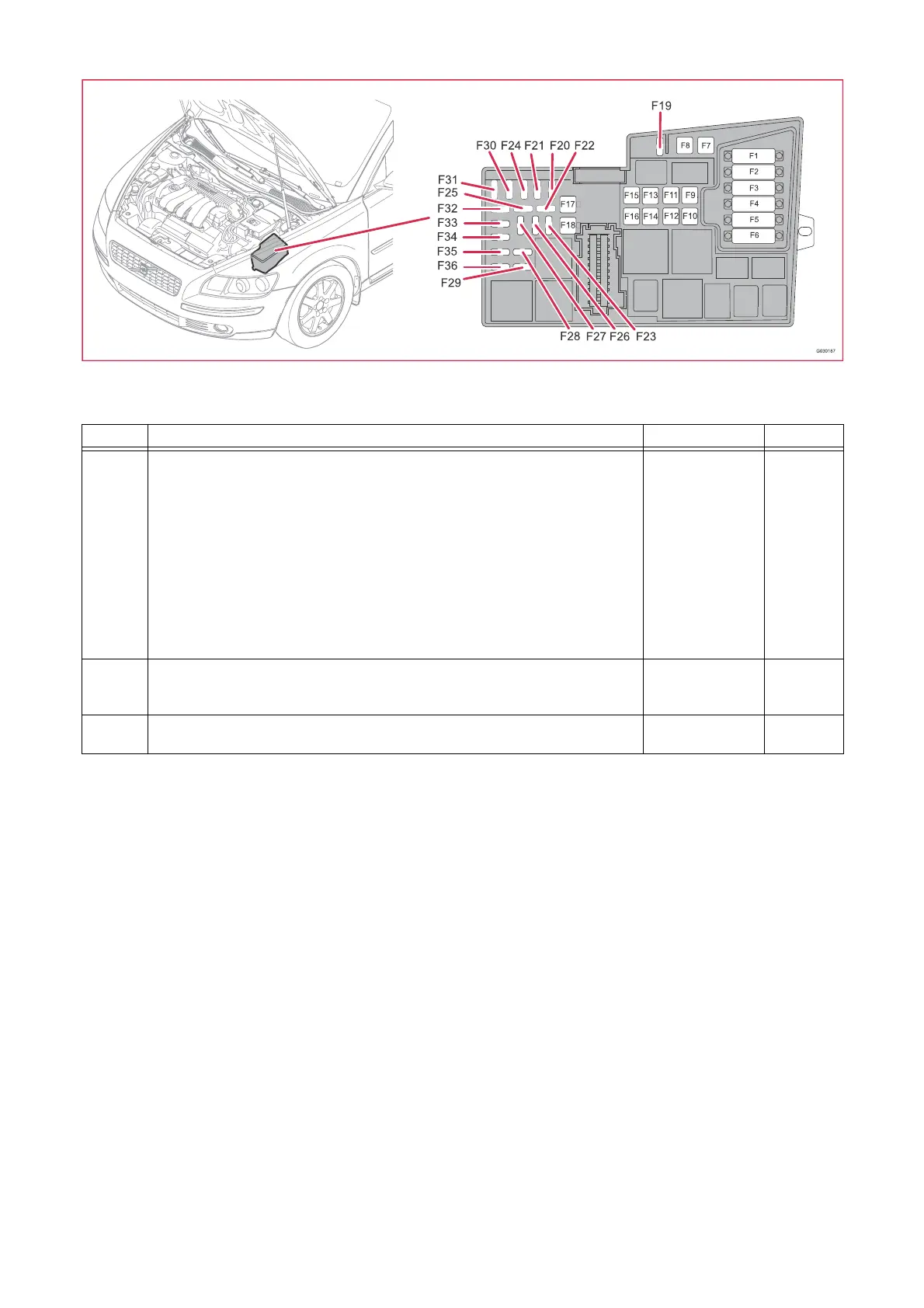

Distribution box in engine compartment F35-FH1
15/31 Distribution box in engine compartment
No. Fuse function via A
F35 2/22 Relay, climate control system
4/46 Engine Control Module (ECM), 5-Cyl. Diesel
6/67 Fuel leakage control pump, 5-Cyl.
7/17 Mass air flow sensor (MAF), 5-Cyl. Gasoline, 4-Cyl. Diesel
8/18 EVAP valve, Gasoline
8/19 Solenoid, variable valve timing, intake, 5-Cyl. Gasoline
8/28 Turbocharger control valve, 2.5l Turbo
8/65 Pressure switch, power steering, 1.6l
8/81 Solenoid, variable valve timing, exhaust, 2.5l Turbo
8/82 Solenoid, variable turbo geometry, 4-Cyl. Diesel
8/113 Bypass valve, EGR cooling
9/32 PTC resistor, crankcase ventilation 5-Cyl. Gasoline
-
-
2/22
-
-
-
-
-
-
-
-
-
15
F36 4/46 Engine Control Module (ECM)
7/15 Front heated oxygen sensor, 5-Cyl. Diesel
7/51 Accelerator pedal sensor
-
-
-
10
FH1 10/65 Auxiliary light, front right
10/69 Auxiliary light, front left
2/64
2/64
20
