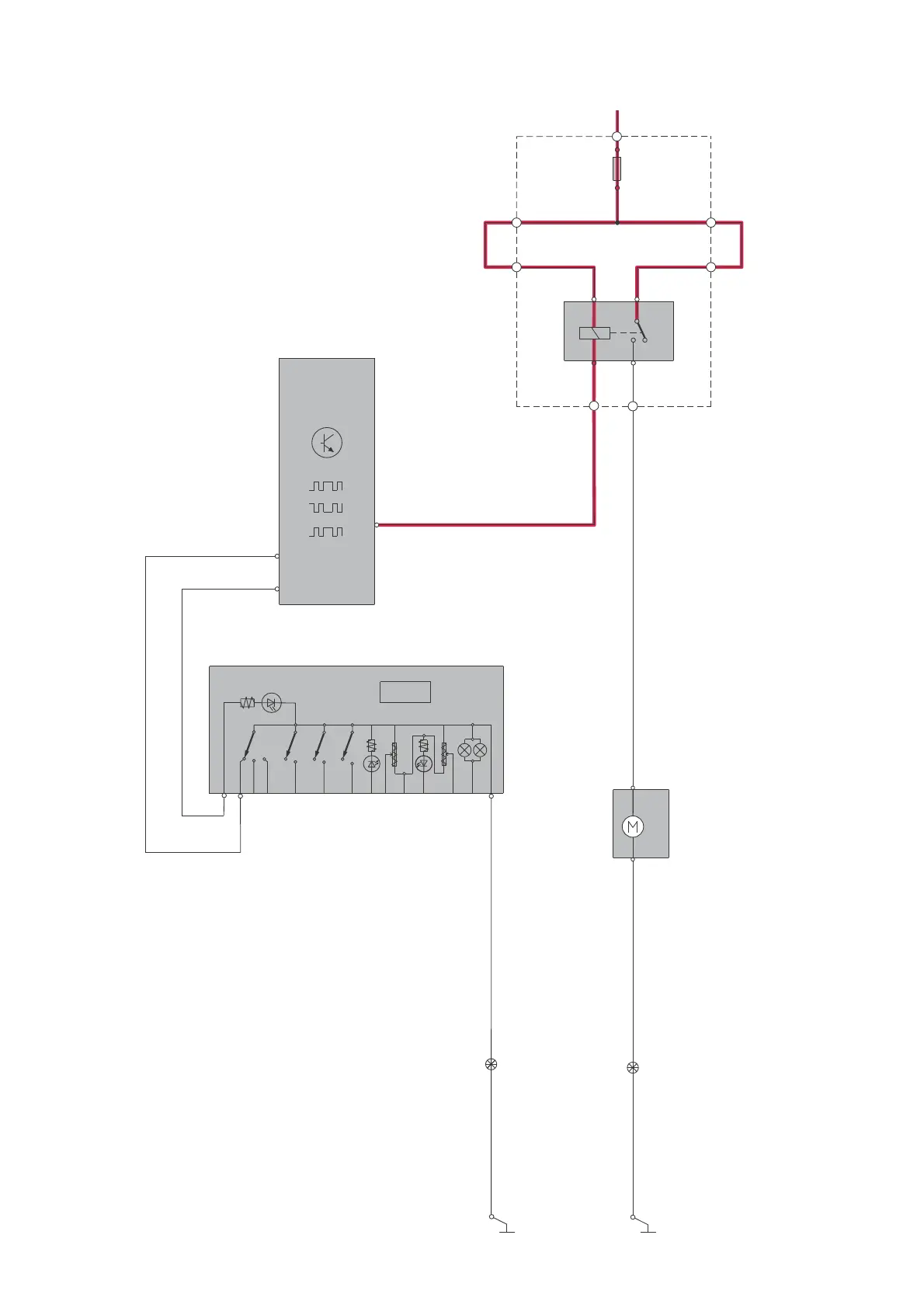

TP 392122
02 C30/S40 (04
-)/V50/C70
(06-) 2012
98
Group 36 Additional
electrical equipment
Wa
s
h
e
r
h
e
a
d
l
i
g
h
t
s
30+
1
F1
1
2
CEM
CAN
OG-BK
G:1
1
A:40
BK-RD
BK-GN
RD-WH
B:2
1(86)
3(30)
2/182
2(85)
R9
5(87)
RD-BK
63/108
31/1
10
6/104
GN-YE
31/6
BK
BK
63/6
4/56
LIN
BK
BK
1
2
15/31
14
6
11
3/1
1
1
0
1
2
SUPPLY
POS 0
POS 1
POS 2
FRONT FOG
REAR FOG
FUEL LID
RF IND.
HEADL LEV
PWR
FF IND.
REOST LEV
ILLUM
GND
LIGHTS ON
FF = FRONT FOG
RF = REAR FOG
G030004
97
99
Table of Contents
Default Chapter
2
Vehicles with SRS (Airbag)/Sips Bag/IC (Inflatable Curtain)
2
Table of Contents
3
Electrical Distribution 1:2
9
Fuses
11
Engine Compartment Distribution Box F1-F10
11
Distribution Box in Engine Compartment F11-F20
12
Distribution Box in Engine Compartment F21-F31
13
Distribution Box in Engine Compartment F32-F34
14
Distribution Box in Engine Compartment F35-FH1
15
Main Fuse Box Battery
16
Fuse Holder MIDI
17
Central Electronic Module (CEM) F43-F48
18
Central Electronic Module (CEM) F49-F61
19
Central Electronic Module (CEM) F62-F69
20
Central Electronic Module (CEM) F73-F85
21
Central Electronic Module (CEM) F86
22
Battery PF1-PF2
23
Relays
24
Ignition Switch and Relays
24
Distribution Box in Engine Compartment R1-R14
25
Engine Compartment
26
Central Electronic Module (CEM) R15-R18
27
Central Electronic Module (CEM) R1-R11B
28
Other Relays
29
Ground Connections
30
Overview
30
31/3 - 31/10 Cont
31
Grounded to Chassis
37
Overview Locations
38
Control Modules
39
Overview Designations
39
Central Electronic Module (CEM) 1:2
40
Data Communication, Low Speed CAN 1:2
42
Data Communication High Speed CAN
44
Data Communication most
45
Data Communication, LIN 1:2
46
Ignition Switch (SCU)
48
Accessory Electronic Module (AEM)
49
Group 26 Cooling System
50
Cooling Fan
50
Group 27 Engine Controls
51
Cruise Control 4-Cyl
51
Tp 39212202 C30/S40 (04-)/V50/C70 (06-)
51
Cruise Control 5-Cyl
52
Start/Stop Function
53
Group 28 Ignition System/Control System
54
Engine Management System, 4-Cyl. 1.6L 1:2
54
Engine Management System, 4-Cyl. 2.0L 1:2
56
Engine Management System, 5-Cyl. Turbo 1:2
58
Engine Management System Diesel, 4-Cyl. 1.6L D4162T 1:2
60
Engine Management System Diesel, 5-Cyl. 2.0L 1:3
62
Emission Control 4-Cyl. 1.6L
65
Emission Control 4-Cyl. 2.0L
66
Emission Control 5-Cyl
67
Group 32 Alternator and Voltage Regulator
68
Power Supply 4-Cyl
68
Power Supply 5-Cyl
69
Group 33 Starting System
70
Starting System 4-Cyl
70
Starting System 5-Cyl
71
Group 35 Lighting
72
High and Low Beam
72
Active Headlight, (Dual Xenon)
73
Running Light/Parking Light, Tail Lights S40/V50
74
Running Light/Parking Light, Tail Lights
75
(Dual Xenon) S40/V50
75
Running Light/Parking Light, Tail Lights C30/C70
76
Running Light/Parking Light, Tail Lights
77
(Dual Xenon) C30/C70
77
Brake Lights S40/V50
78
Brake Lights C30/C70
79
Reversing Lights S40/V50
80
Reversing Lights C30/C70
81
Fog Lights S40/V50
82
Fog Lights C30/C70
83
Fog Lights RHD Japan S40/V50
84
Fog Lights RHD Japan C30/C70
85
Interior Lighting C30/S40/V50 1:2
86
Interior Lighting C70 1:2
88
Follow-Me-Home Lighting
90
Instrument and Control Illumination
91
Auxiliary Lights
92
Group 36 Additional Electrical Equipment
93
Direction Indicator and Hazard Warning Flashers S40/V50
93
S40/V50
93
Direction Indicator and Hazard Warning Flashers
94
(Dual Xenon) S40/V50
94
Direction Indicator and Hazard Warning Flashers C30/C70
95
C30/C70
95
Direction Indicator and Hazard Warning Flashers (Dual Xenon) C30/C70
96
Wiper/Washer Windshield
97
Washer Headlights
98
Wiper/Washer Rear Window C30/V50
99
Rain Sensor
100
Parking Assistance
101
Keyless Vehicle C30/S40/V50 1:2
102
Keyless Vehicle C70 1:2
104
Immobilizer/Steering Column Lock (SCL)
106
Horn
107
Anti-Theft Alarm C30
108
Anti-Theft Alarm S40/V50
109
Anti-Theft Alarm C70
110
Alcohol Lock
111
Accessory Electronic Module (AEM) C30
112
Accessory Electronic Module (AEM), S40/V50/C70
113
Group 37 Wiring and Fuses
114
Outlet C30/S40/V50
114
12V Outlet, C70
115
Diagnostics System
116
Cable Harness Towbar/Tow Hitch 4-Pin S40/V50
117
Cable Harness Towbar/Tow Hitch 4-Pin C30
118
Cable Harness Towbar/Tow Hitch 7-Pin S40/V50
119
Cable Harness Towbar/Tow Hitch 7-Pin C30/C70
120
Cable Harness Towbar/Tow Hitch 13-Pin S40/V50/C70
121
S40/V50/C70
121
Cable Harness Towbar/Tow Hitch 13-Pin C30
122
Accessory USB Unit (AUU)
123
Group 38 Instruments
124
Driver Information Module
124
Seat Belt Reminder C30/S40/V50
125
Seat Belt Reminder C70
126
Group 39 Other
127
Audio C30/S40/V50
127
Alternative Connection Audio S40/V50
128
Audio C70
129
Audio High Performance/Premium Sound C30/S40/V50 1:2
130
Audio High Performance/Premium Sound C70 1:2
132
Tp 39212202 C30/S40 (04-)/V50/C70 (06-)
133
Cellular Phone 1:2
134
Multimedia & Traffic Information
136
Satellite Radio
137
Subwoofer C70
138
Navigation System, Portable
139
Bluetooth
140
Bluetooth Handsfree, Internal Amplifier
141
Bluetooth Handsfree, External Amplifier
142
Bluetooth Handsfree & AUU, Internal Amplifier
143
Bluetooth Handsfree & AUU, External Amplifier
144
Bluetooth Handsfree with AEM, Internal Amplifier, LHD
145
Bluetooth Handsfree with AEM, Internal Amplifier, RHD
146
Bluetooth Handsfree with AEM, External Amplifier, LHD
147
Bluetooth Handsfree with AEM, External Amplifier, RHD
148
Group 43 Transmission
149
Automatic Transmission AW55-51
149
Automatic Transmission AWF21
150
Transmission M66
151
Automatic Transmission MPS6
152
Group 59 Brake System Brake Control System & STC
153
Brake Control System & DSTC
154
Group 64 Steering
155
Speed Dependent Power Steering
155
Central Locking Front Doors C30/S40/V50
156
Central Locking Rear Doors S40/V50
157
Central Locking C70
158
Group 83 Doors and Openings
159
Central Locking Trunk Lid/Tailgate C30
159
Central Locking Trunk Lid/Tailgate S40/V50
160
Central Locking Trunk Lid/Tailgate C70
161
Central Locking Storage Compartment C70
162
Child Safety Lock S40/V50
163
Central Locking Fuel Filler Flap
164
Signal Receiver Central Locking C30/S40/V50
165
Signal Receiver Central Locking C70
166
Power Windows Front Doors C30/S40/V50
167
Power Windows C70
168
Power Windows Rear Doors S40/V50
169
Power Sunroof C30/S40/V50
170
Power Roof C70
171
Group 84 Exterior Decorative Elements, Etc
172
Power Door Mirrors C30/S40/V50
172
Power Door Mirrors C70
173
Heated Door Mirrors
174
Heated Rear Window
175
Blind Spot Information System
176
Group 85 Interior Equipment
177
Power Driver's Seat with Memory Function LHD S40/V50
177
S40/V50
177
Power Driver's Seat with Memory Function RHD S40/V50
178
S40/V50
178
Power Driver's Seat with Memory Function LHD C30/C70
179
C30/C70
179
Power Driver's Seat with Memory Function, RHD C30/C70
180
C30/C70
180
Power Driver's Seat LHD
181
Power Driver's Seat RHD
182
Power Passenger Seat LHD S40/V50
183
Power Passenger Seat RHD S40/V50
184
Heated Seats
185
Group 87 Climate Control System
186
Climate Control System PTC-Elements
186
Climate Control System, 4-Cyl. Gasoline 1:2
187
Climate Control System, Diesel 1.6L 1:2
189
Climate Control System, 5-Cyl. 1:2
191
Parking Heater, Auxiliary Heater
193
Relay, Electric Engine Heater
194
Electric Engine Heater Flexifuel
195
Group 88 Internal Equipment
196
Rear-View Mirror with Automatic Dimming
196
Supplemental Restraint System C30/S40/V50 1:2
197
Supplemental Restraint System C70 1:2
199
Remote Control Garage Opening
201
Connectors
202
Branching Points
240
Cable Harness Routing in Vehicle
252
Engine Harness, Gasoline 4-Cyl.1.6L
252
Engine Harness, Gasoline 4-Cyl.2.0L
252
Engine Harness, Gasoline 5-Cyl. Turbo
253
Engine Harness, Diesel 1.6L
253
Tp 39212202 C30/S40 (04-)/V50/C70 (06-)
253
Harness Engine, Diesel 2.0L
254
Engine Compartment Harness, 4-Cyl
255
Engine Compartment Harness, 5-Cyl
255
Harness Dashboard, LHD
256
Harness Dashboard, RHD
256
Floor Harness, C30 LHD
257
Floor Harness, C30 RHD
258
Floor Harness, S40 LHD
259
Floor Harness, S40 RHD
260
Floor Harness, V50 LHD
261
Floor Harness, V50 RHD
262
Floor Harness, C70 LHD
263
Floor Harness, C70 RHD
264
Roof Harness, C30
265
Roof Harness, S40
265
Roof Harness, V50
266
Roof Harness, C70
266
Tunnel Harness, C30/S40/V50
267
Tunnel Harness, C70
267
Driver's Door Harness, C30
268
Passenger Door Harness, C30
268
Driver's Door Harness, S40/V50
269
Passenger Door Harness, S40/V50
269
Driver's Door Harness, C70
270
Driver's Door Harness Supplement, C70
270
Passenger Door Harness, C70
271
Passenger Door Harness Supplement, C70
271
Harness Rear Door, Right S40/V50
272
Harness Rear Door, Left S40/V50
272
Rear Side Panel Harness, Left C70
273
Rear Side Panel Harness, Right C70
273
Trunk Lid/Tailgate Harness, C30
274
Trunk Lid/Tailgate Harness, S40
274
Trunk Lid/Tailgate Harness, V50
275
Trunk Lid/Tailgate Harness, C70
275
Component Illustrations
276
Index 1:2
333
Table of Contents
334
List of Components 1:7
335
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Volvo V50 2012 and is the answer not in the manual?
Ask a question
Volvo V50 2012 Specifications
General
Brand
Volvo
Model
V50 2012
Category
Automobile
Language
English
Related product manuals
Volvo V50 2010
310 pages
Volvo 2010 V50
292 pages
Volvo 2011 V50
8 pages
Volvo V50 2004
208 pages
Volvo 2009 V50
286 pages
Volvo V50 2.4/140 (B5244S5)
2 pages
Volvo V50
322 pages
Volvo V60 2012
8 pages
Volvo C70 2012
8 pages
Volvo S60 2012
8 pages
Volvo 2012 XC60
374 pages
Volvo XC60 2012
308 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
