TP 39212202 C30/S40 (04-)/V50/C70 (06-) 2012 25
Relays

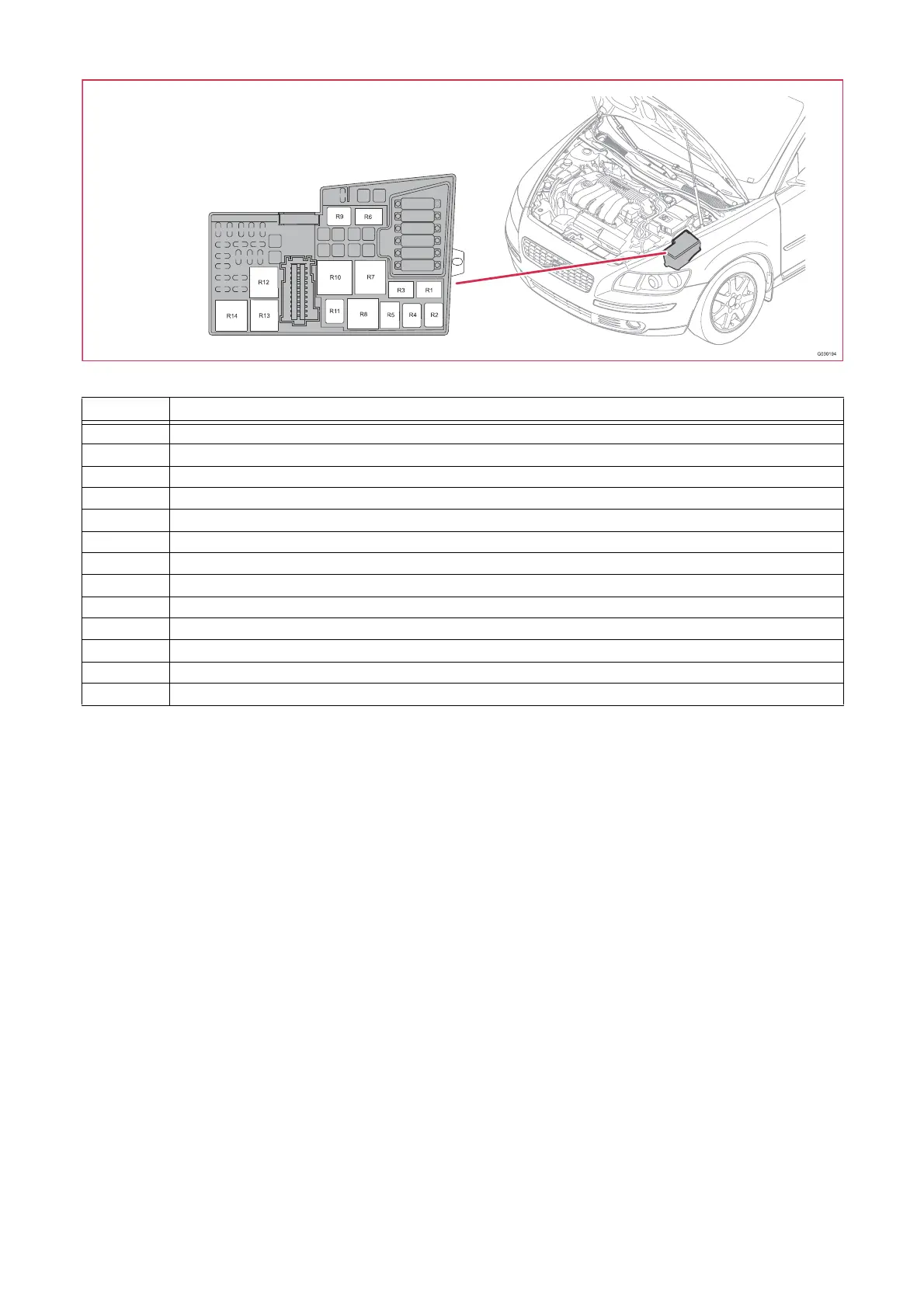

Distribution box in engine compartment R1-R14
15/31 Distribution box engine compartment
Pos Relay function
R1 2/239 Relay coolant pump
R2 2/17 Relay, horn
R3 2/133 Relay vacuum pump
R4 2/34 Relay, front fog lights
R5 2/142 Relay pre-heater fuel filter
R6 2/247 Relay autostart
R7 2/243 Secondary battery relay
R9 2/182 Relay, headlight washer motor
R10 2/82 Relay, heated rear window
R11 2/22 Relay, climate control system
R12 2/14 Relay, glow plug system
R13 2/35 Relay, starter motor
R14 2/32 Main relay, engine management system
