Volvo V70 2014 - Distribution Box in Engine Compartment F1-F7; Fuses

TP 39264202 V70(08-), XC70(08-) & S80(07-) 2014 © Volvo Car Corporation 2013 14
Fuses

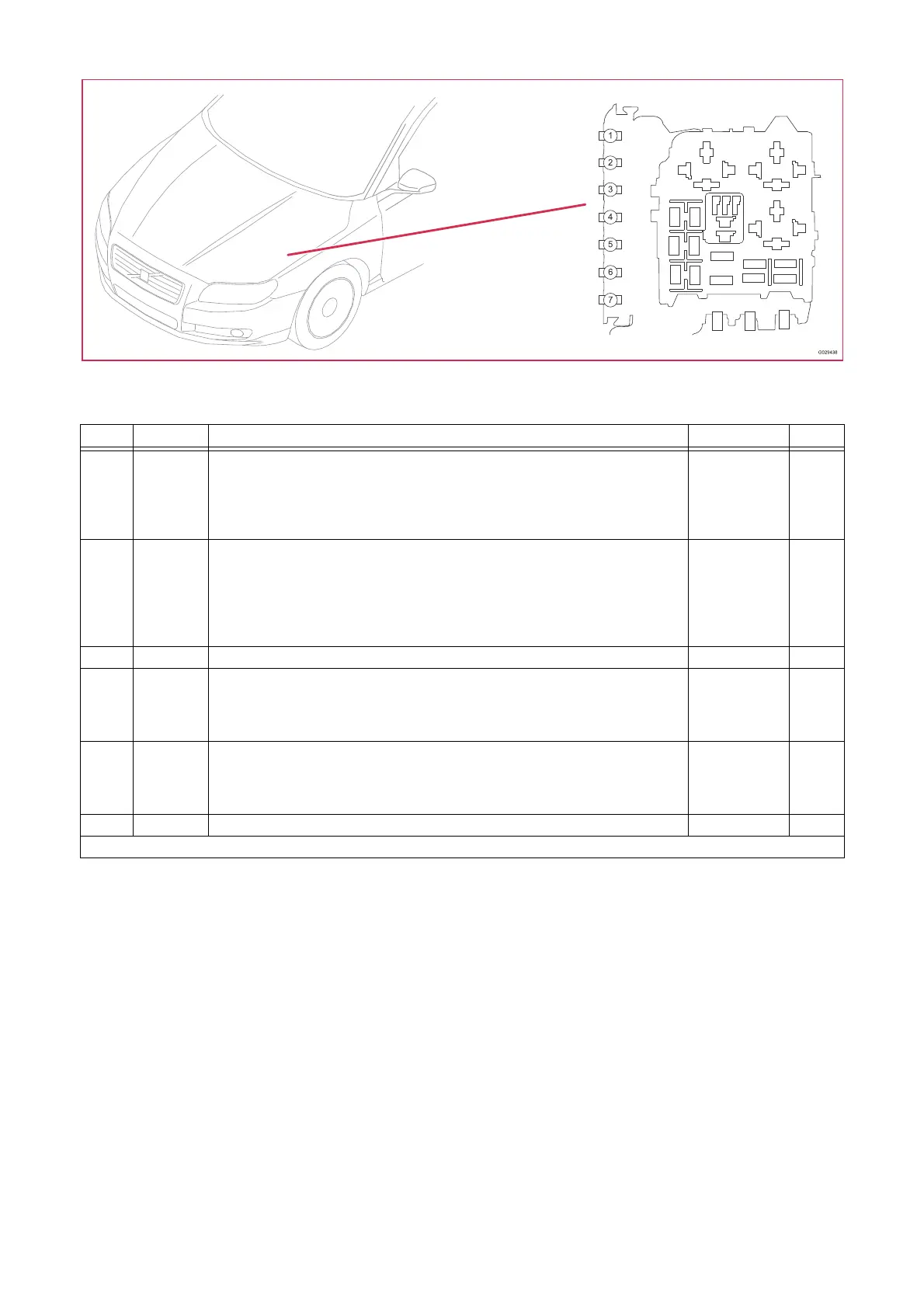

Distribution box in engine compartment F1-F7
15/31 Distribution box in engine compartment
No. No. Fuse function via A
F1 11A/1 4/56 Central Electronic Module (CEM)
F7 Fuse in the Central Electronic Module (CEM)
F9-F11 Fuses in the Central Electronic Module (CEM)
F21 Fuse in the Central Electronic Module (CEM)
F23 Fuse in the Central Electronic Module (CEM)
-
-
relay in CEM
-
-
50
F2 11A/2 4/56 Central Electronic Module (CEM)
F3-F6 Fuses in the Central Electronic Module (CEM)
F8 Fuse in the Central Electronic Module (CEM)
F12-F16 Fuses in the Central Electronic Module (CEM)
F22 Fuse in the Central Electronic Module (CEM)
F24 Fuse in the Central Electronic Module (CEM)
-
relay in CEM
relay in CEM
-
-
-
50
F3 11A/3 11D/A1-11D/A11 Fuses in distribution box cargo compartment - 60
F4 11A/4 2/193 Relay, comfort functions
4/56 Central Electronic Module (CEM)
11C/1-11C/15 Fuses in distribution box passenger compartment
11C/21-11C/22 Fuses in distribution box passenger compartment
-
2/193
-
2/193
60
F5 11A/5 2/88 Relay, 15-feed
4/56 Central Electronic Module (CEM)
11C/23-11C/25 Fuses in distribution box passenger compartment
11C/26-11C/30 Fuses in distribution box passenger compartment
-
2/88
2/88
2/88
60
F7 11A/7 9/42 PTC-element - 100
