TP 39264202 V70(08-), XC70(08-) & S80(07-) 2014 © Volvo Car Corporation 2013 32

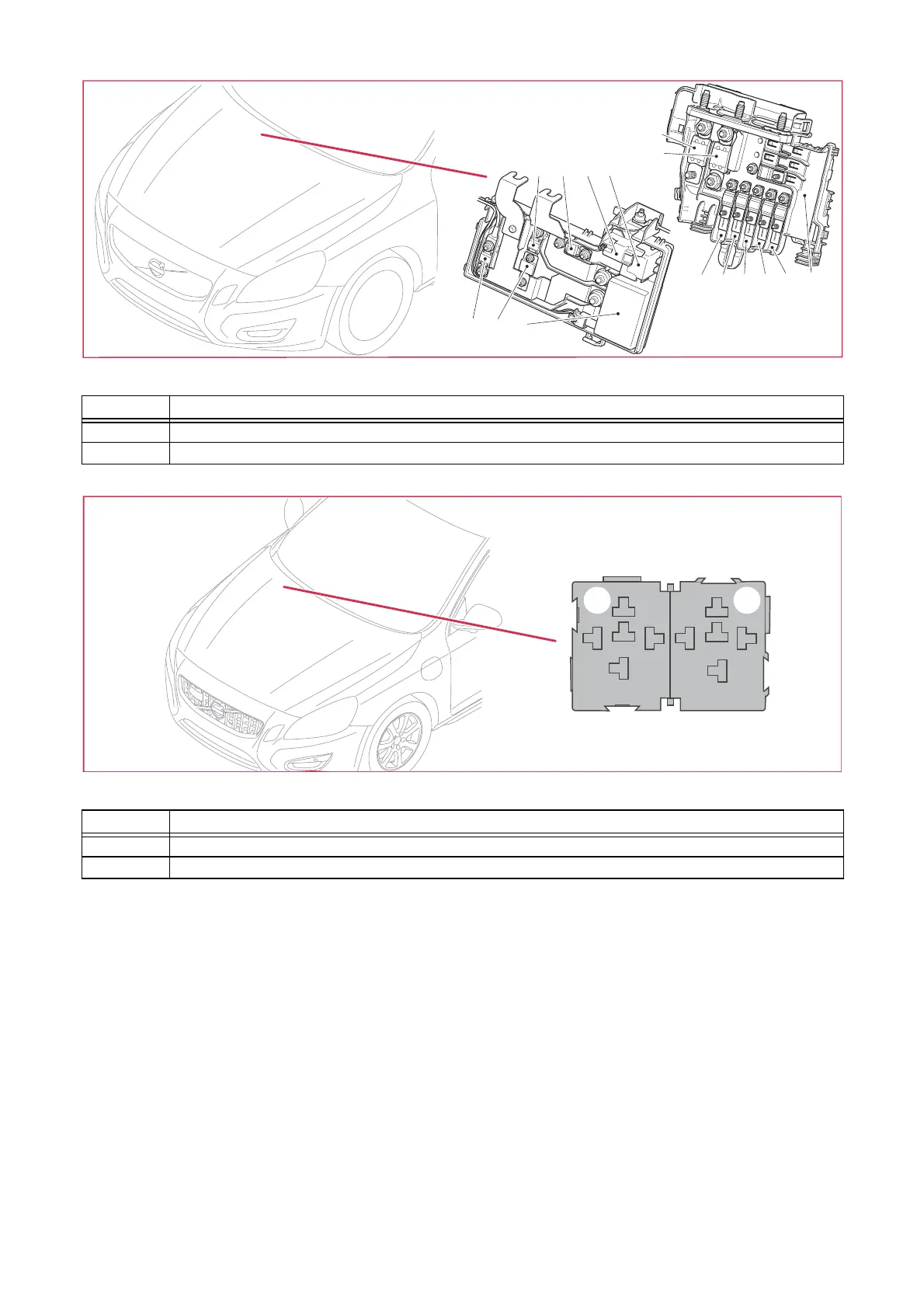

15/37 Distribution box engine compartment

15/46 Relay box engine compartment

Pos Relay function

R1 2/166 Battery relay

R2 2/246 Secondary battery relay

Pos Relay function

R1 2/81A Relay, heated windshield passenger side

R2 2/81B Relay, heated windshield driver’s side

MF1

D1F9 R1

F10 F11 F12

F2 F3 F4 F5

MF2

2/166

2/246

I01322215/37

15/46

H01546A

2/81B

2/81A

Relays

Relays in the engine compartment
