TP 39264202 V70(08-), XC70(08-) & S80(07-) 2014 © Volvo Car Corporation 2013 31

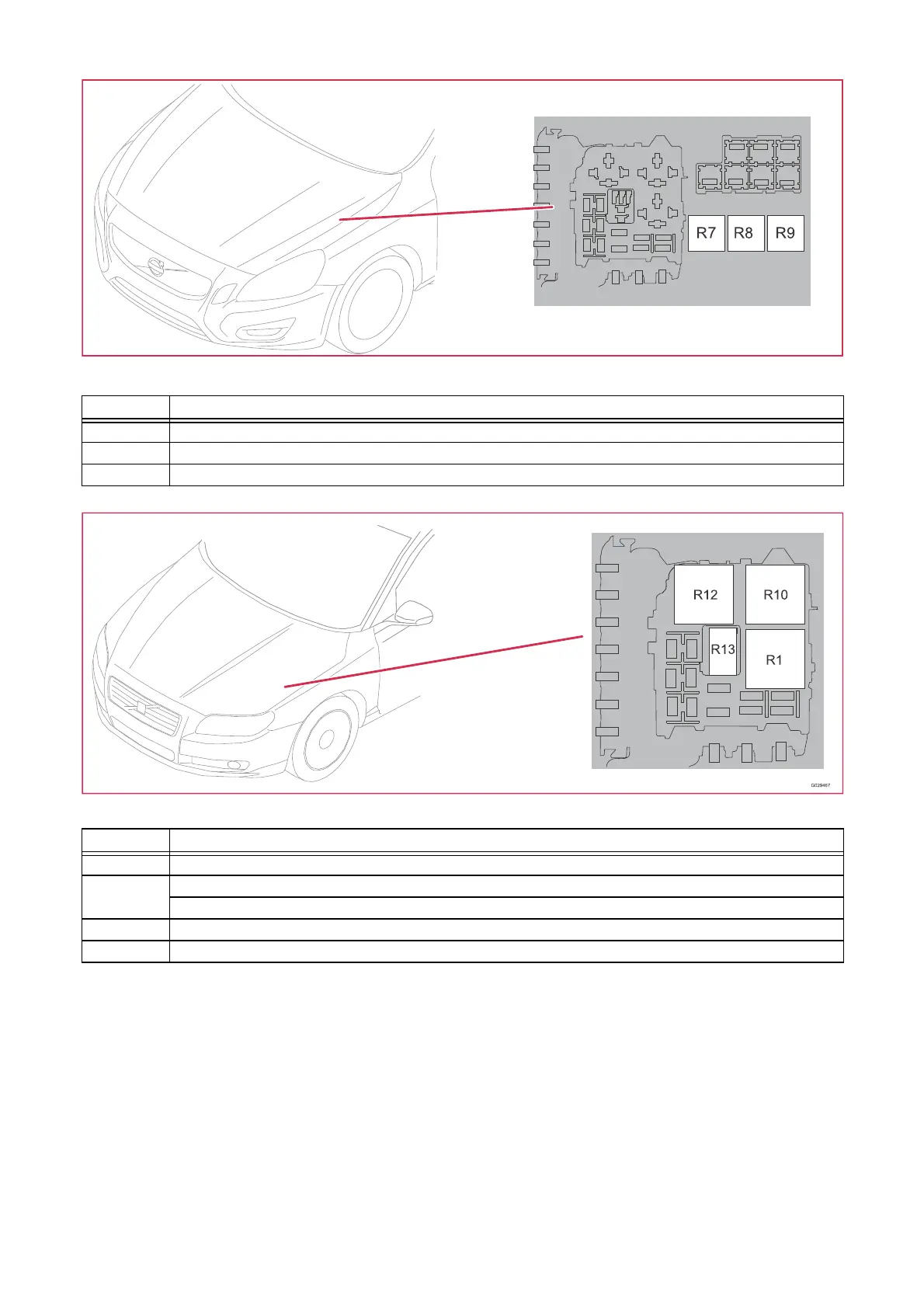

15/31 Distribution box engine compartment

Pos Relay function

R7 2/31 Relay, 15-feed

R8 2/17 Relay, horn

R9 2/182 Relay, headlight washer motor

Pos Relay function

R10 2/32 Main relay, engine management system

R11 2/14 Relay, diesel filter heater, 5-Cyl. Diesel

2/14 Relay, coolant pump, 4-Cyl. 1.6l Turbo MAN

R12 2/35 Relay, starter motor

R13 2/22 Relay, climate control system

I01946615/31

Relays

Relays in the engine compartment

Default Chapter3
