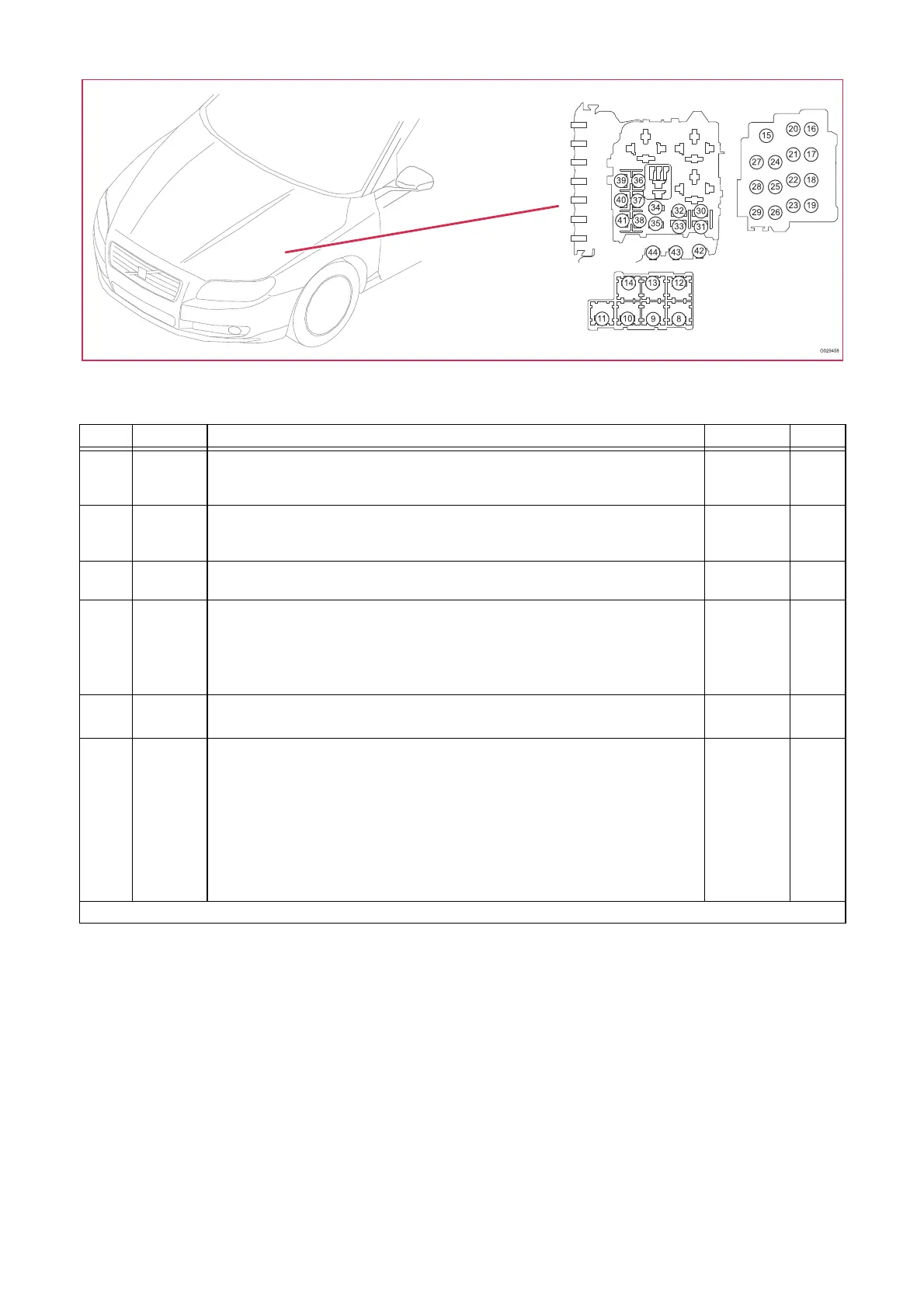

Fuses
Distribution box in engine compartment F32-F37
15/31 Distribution box in engine compartment
No. No. Fuse function via A
F32 11B/32 2/22 Relay, climate control system
8/3 Electromagnetic clutch, climate control system
6/73 Coolant pump, Start/Stop, 5-Cyl. Diesel
-
2/22
2/22
15
F33 11B/33 2/14 Relay, glow plug system
2/22 Relay, climate control system
4/46 Engine Control Module (ECM)
-
-
-
5
F34 11B/34 2/35 Relay, starter motor
6/25 Starter motor
-
2/35
30
F35 11B/35 4/109 Control module glow plug, 5-Cyl. Diesel
20/3-6 Spark plug with ignition coil, 4-Cyl.
8/111 Control valve fuel flow
-
-
-
10
20/3-8 Spark plug with ignition coil, 5- & 6-Cyl.
20/16 Capacitor 6-Cyl.
-
-
20
F36 11B/36 4/46 Engine Control Module (ECM), 4-, 5-, 6-Cyl. - 10
4/46 Engine Control Module (ECM), 5-Cyl. Diesel - 15
F37 11B/37 7/17 Mass airflow sensor (MAF), 4-Cyl.
8/111 Control valve fuel flow, 4-Cyl. Diesel
8/121 Radiator valve
8/167 Bypass solenoid
-
-
-
-
10
4/46 Engine Control Module (ECM), 6-Cyl.
8/6-11 Injection valves
8/98 Control valve fuel pressure, Diesel
8/111 Control valve fuel flow, 5-Cyl. Diesel
7/17 Mass airflow sensor (MAF), 5-, 6-Cyl.
-
-
-
-
-
15
continues
