TP 39264202 V70(08-), XC70(08-) & S80(07-) 2014 © Volvo Car Corporation 2013
204
30+
15/31
1
1A/3
2
1
C24W154
RD-GN
RD-GN
RD-GN
1
2
1
1D/A6
15/32
2
1
1D/A5
1
73/5075
4/147
C2:2
C2:1
3/331
3/330
3/65
3/299
3/324
3/325
22/6
73/5190
BK-WH
BK-WH
BK-WH
BK-WH
BK-WH
BK-WH
BK-WH
74/504B
2
A
10/288
5
5
5
2
4
4
4
C1:13
C1:12
C1:17
C1:16
C1:15
C1:4
C1:5
22/6
BU-WH
BN-RD
BK-WH
BK-WH
73/5187
74/40
9
BU-RD
11
2
1
1A/2
2
1
1A/1
11
CAN
C1:31
C1:30
CEM
4/56
C5:2
C5:1
RD-BU
RD-BK
LIN
73/4061
C3:69
GY-BN
VT-OG
BU-WH
GN-WH
GY-RD
BU-WH
GY-RD
BU-WH
GY-RD
BU-WH
BN-GN
GN-BU
WH
YE
VT
YE
VT
WH-BN
WH-BN
1
3
1
3
1
3
1
5
2
1
5
2
WH-BN
WH-BN
1
1
1
5
5
2
2
4
73/5192
73/5191
1
2
BU-RD
73/5193
6
5
9
8
10
4
11
12
13
14
BU-WH
GY-RD
WH-BN
SHM
LIN
9/13
5
20
19
BN-GN
GN-BU
WH
BU-WH
GY-RD
VT-OG
GY-BN
BU-WH
GN-WH
WH-BN
3
BU-RD
BU-RD
BU-RD
7
3/104
6/74
M
5
4

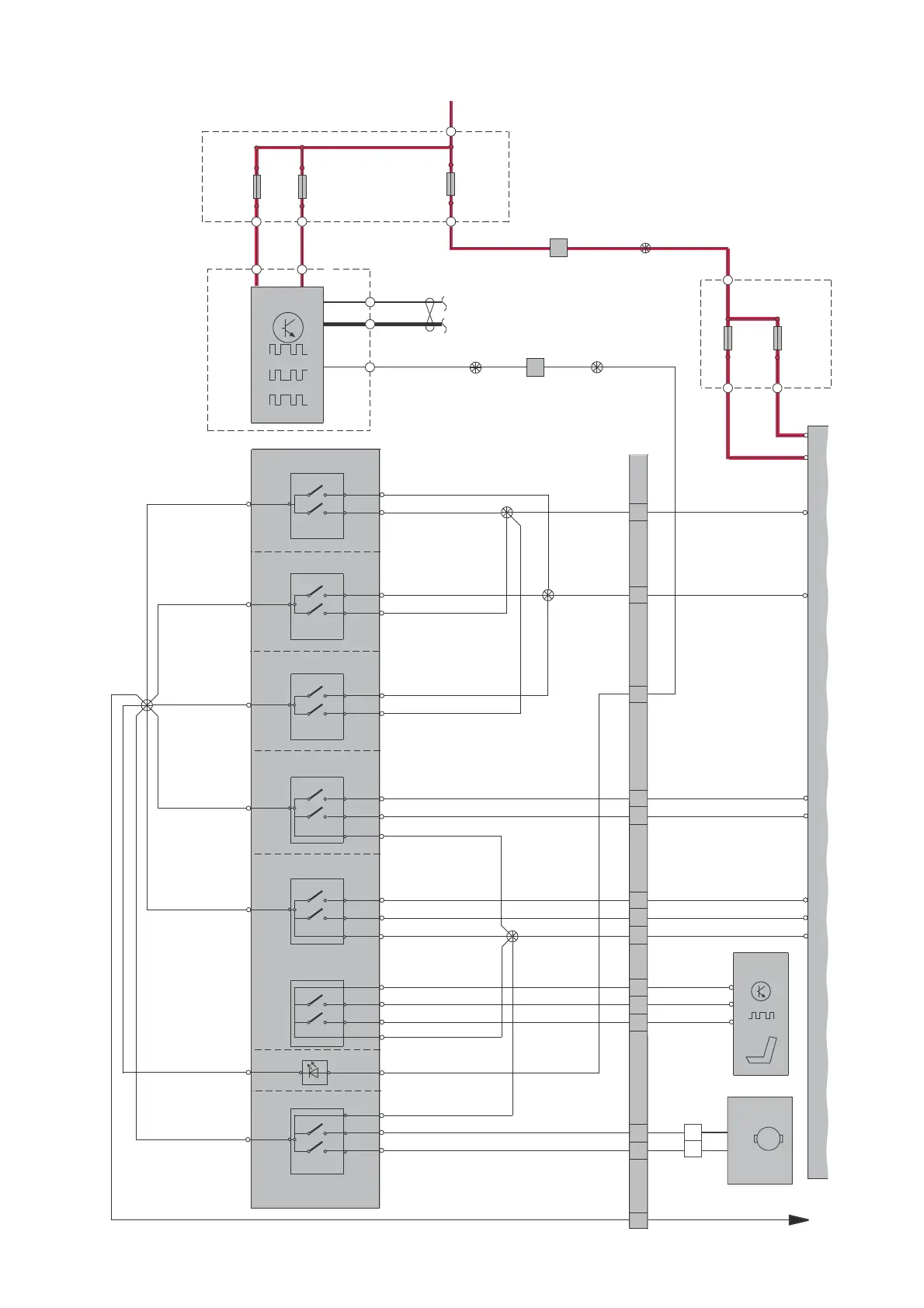

Group 85 Interior equipment
Massage seats 1:2
203
205
Table of Contents
Default Chapter
3
Table of Contents
3
Explanations
6
Electrical Distribution
7
How to Use the Wiring Diagrams 1:2
7
Overview Without Start/Stop Function
9
Overview with Start/Stop Function
10
Overview, Distribution Box in Engine Compartment
11
Overview, Distribution Box in Passenger Compartment
12
Overview, Distribution Box in Cargo Compartment
13
Distribution Box in Engine Compartment F1-F7
14
Fuses
14
Distribution Box in Engine Compartment F8-F21
15
Distribution Box in Engine Compartment F22-F31
16
Distribution Box in Engine Compartment F32-F37
17
Distribution Box in Engine Compartment F38
18
Distribution Box in Engine Compartment F38-F39
19
Distribution Box in Engine Compartment F39-F44
20
Central Electronic Module (CEM) F1-F3
21
Central Electronic Module (CEM) F4-F14
22
Central Electronic Module (CEM) F15-F24
23
Passenger Compartment
24
Distribution Box in Passenger Compartment F1-F17
25
Distribution Box in Passenger Compartment F18-F24
26
Distribution Box in Passenger Compartment F25-F30
27
Distribution Box in Cargo Compartment FA1-FA11
28
Distribution Box in Engine Compartment, Cold Zone F1-MF2
29
Battery PF1-PF2
30
Relays
31
Relays in the Engine Compartment
31
Relays in the Engine Compartment
32
Relays in Passenger Compartment
33
Relays in Cargo Compartment
34
Ground Connections
35
Overview
35
31/93 - 31/Xx4
42
31/Xx10 - 31/Al
43
Control Modules
44
Overview Locations
44
TP 39264202 V70(08-), XC70(08-) & S80(07-) 2014 © Volvo Car Corporation
44
Overview Designations
45
Central Electronic Module (CEM) 1:3
46
Data Communication High Speed CAN
49
Data Communication High Speed CAN, 4-Cyl
50
Data Communication Intermediate Speed CAN, LHD
51
Data Communication Intermediate Speed CAN, RHD
52
Data Communication most
53
Data Communication, LIN 1:2
54
Steering Wheel Module (SWM)
56
Cooling Fan, 4-Cyl. Turbo
57
Group 26 Cooling System
57
Cooling Fan, 5-Cyl. Turbo
58
Cooling Fan, 6-Cyl
59
Cooling Fan, 4-Cyl. Diesel
60
Cooling Fan, 5-Cyl. Diesel
61
Cruise Control 4-Cyl. 1,6L Turbo
62
Group 27 Engine Controls
62
Cruise Control 4-Cyl. 2,0L Turbo
63
Cruise Control 4-Cyl. Diesel
64
Cruise Control 5-Cyl. & 6-Cyl
65
Cruise Control 5-Cyl. Diesel
66
Start-/Stop Function 4-Cyl. 1.6L Turbo
67
Start-/Stop Function 4-Cyl. 1.6L Diesel
68
Start-/Stop Function 5-Cyl. Diesel
69
Start-/Stop Function 5-Cyl. Turbo
70
Engine Management System, 4-Cyl. Diesel 1:3
71
Group 28 Ignition and Control System
71
Engine Management System, 4-Cyl. Turbo 1.6L 1:2
74
Engine Management System, 4-Cyl. Turbo 2.0L 1:2
76
Engine Management System, 5-Cyl. Turbo 1:2
78
Engine Management System, 5-Cyl. Diesel 1:3
80
Engine Management System 6-Cyl. PZEV 1:2
83
Engine Management System, 6-Cyl. 1:2
85
Engine Management System, 6-Cyl. Turbo 1:2
87
Emission Control 4-Cyl. 1.6L Turbo
89
Emission Control 4-Cyl. 2.0L Turbo
90
Emission Control 5-Cyl. Turbo
91
Emission Control 6-Cyl
92
Emission Control 6-Cyl. Turbo
93
Group 32 Alternator and Voltage Regulator Power Supply 4-Cyl. Turbo
94
Power Supply 4-Cyl. & 5-Cyl. with Start/Stop
95
Power Supply 5-Cyl. & 6-Cyl
96
Group 33 Starting System
97
Starting System 4-Cyl. Turbo
97
Starting System 5- & 6-Cyl
98
Starting System 4-Cyl. Diesel
99
Starting System 5-Cyl. Diesel
100
Group 35 Lighting
101
High and Low Beam
101
High and Low Beam (Dual Xenon)
102
Beam Length Adjustment, Manual
103
Running/Parking Light, Tail Lights V70
104
Running/Parking Light, Tail Lights S80
105
Daytime Running Lights V70 & XC70
106
Daytime Running Lights S80
107
Brake Lights V70
108
Brake Lights S80
109
Reversing Lights V70
110
Reversing Lights S80
111
Follow-Me-Home Lighting LHD
112
Follow-Me-Home Lighting RHD
113
Interior Lighting, LHD 1:2
114
Interior Lighting, RHD 1:2
116
Active Headlight
118
Lighting in Door Sill Trims
119
Auxiliary Lights
120
Lighting Mug Holder and Floor
121
Group 36 Additional Electrical Equipment
122
Rain Sensor
122
Direction Indicator and Hazard Warning Flashers LHD V70
123
Direction Indicator and Hazard Warning Flashers LHD S80
124
Direction Indicator and Hazard Warning Flashers RHD V70
125
Direction Indicator and Hazard Warning Flashers RHD S80
126
Wiper/Washer Windshield
127
High Pressure Headlight Washer
128
Wiper/Washer Rear Window
129
Keyless Vehicle 1:2
130
Horn
132
Anti-Theft Alarm
133
Parking Assistance
134
Collision Warning with Power Brake Booster
135
Tire Pressure Monitoring System (TPMS)
136
Alcohol Lock
137
Group 37 Wiring and Fuses Diagnostics System
138
TP 39264202 V70(08-), XC70(08-) & S80(07-) 2014 © Volvo Car Corporation
138
Outlet 12 V
139
Outlet 12 V, S80
140
Cable Harness Towbar/Tow Hitch 4-Pin V70
141
Cable Harness Towbar/Tow Hitch 4-Pin S80
142
Cable Harness Towbar/Tow Hitch 7-Pin V70
143
Cable Harness Towbar/Tow Hitch 7-Pin S80
144
Cable Harness Towbar/Tow Hitch 13-Pin V70
145
Cable Harness Towbar/Tow Hitch 13-Pin S80
146
Accessory USB Unit (AUU)
147
Group 38 Instruments
148
Seat Belt Reminder
148
Driver Information Module
149
Analog Clock
150
Group 39 Other, Accessories TV
151
Cellular Phone 1:2
152
Audio 1:2
154
Audio Premium 1:3
156
DAB Radio
159
Bluetooth Handsfree
160
Rear Seat Entertainment, V70
161
Satellite Radio
163
Parking Camera
164
Parking Camera Wide-Angle, Front
165
Navigation System, Portable
166
Sensus Connected Touch
167
Group 43 Transmission
168
Transmission M66
168
Automatic Transmission MPS6
169
Automatic Transmission AWF21
170
Differential Electronic Module (DEM)
171
Electric Parking Brake
172
Group 55 Parking Brake
172
Brake Control System & DSTC
173
Group 59 Brake System
173
Group 64 Steering
174
Speed Dependent Power Steering
174
Group 76 Shock Absorbers Four-C
175
Central Locking Front Doors LHD
176
Group 83 Doors and Openings
176
Central Locking Front Doors RHD
177
Central Locking Rear Doors
178
Central Locking Trunk Lid/Tailgate V70
179
Central Locking Trunk Lid/Tailgate S80
180
Central Locking Fuel Filler Flap
181
Signal Receiver Central Locking
182
Power Windows Front Doors LHD
183
Power Windows Front Doors RHD
184
Power Windows Rear Doors
185
Power Sunroof
186
Group 84 Exterior Decorative Elements, Etc
187
Power Door Mirrors LHD
187
Power Door Mirrors RHD
188
Heated Door Mirrors LHD
189
Heated Door Mirrors RHD
190
Blind Spot Information System LHD
191
Blind Spot Information System RHD
192
Heated Windshield LHD
193
Heated Windshield RHD
194
Heated Rear Window
195
Group 85 Interior Equipment
196
Power Driver's Seat with Memory Function, LHD
196
Power Driver's Seat with Memory Function, RHD
197
Power Passenger Seat, LHD
198
Power Passenger Seat, RHD
199
Heated Steering Wheel
200
Heated Front Seats with Fans
201
Heated Front Seats Without Fans
202
Heated Rear Seat
203
Massage Seats 1:2
204
Massage Seats 2:2
205
Climate Control System, 4-Cyl. Turbo 1:2
206
Group 87 Climate Control System
206
Climate Control System 4-Cyl. Diesel 1:2
208
Climate Control System 5- & 6-Cyl. 1:2
210
Climate Control System PTC-Elements
212
Parking Heater, Auxiliary Heater
213
Parking Heater, Remote Start
214
Refrigeration Box Rear Seat
215
Group 88 Internal Equipment Supplemental Restraint System 1:2
216
TP 39264202 V70(08-), XC70(08-) & S80(07-) 2014 © Volvo Car Corporation
216
Power Folding Headrest
218
Remote Control Garage Opening
219
Rear-View Mirror with Automatic Dimming
220
Connectors
221
Branching Points
261
Cable Harness Routing in Vehicle
282
Engine Harness, 4-Cyl. Turbo
282
Engine Harness, 5-Cyl. Turbo
282
Engine Harness, 6-Cyl
283
Engine Harness, 6-Cyl. Turbo
283
Engine Harness, 2.0L Diesel
284
Engine Harness, 2.4L Diesel
284
Engine Compartment Harness LHD
285
Engine Compartment Harness RHD
286
Dashboard Harness, LHD
287
Dashboard Harness, RHD
288
Harness Floor, LHD S80
289
Floor Harness, RHD S80
290
Floor Harness, LHD V70
291
Floor Harness, RHD V70
292
Infotainment Harness, LHD S80
293
Infotainment Harness, RHD S80
294
Infotainment Harness, LHD V70
295
Infotainment Harness, RHD V70
296
Roof Harness, S80
297
Roof Harness, V70
297
Center Console Harness
298
Tunnel Harness
298
Front Door Harness, Left
299
Front Door Harness, Right
299
Rear Door Harness, Left
300
Rear Door Harness, Right
300
Trunk Lid/Tailgate Harness, S80
301
Trunk Lid/Tailgate Harness, V70
301
Rear Axle Harness
302
Executive Harnesses
303
Component Illustrations
304
Index 1:2
364
Table of Contents
365
List of Components 1:7
366
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Volvo V70 2014 and is the answer not in the manual?
Ask a question
Volvo V70 2014 Specifications
General
Brand
Volvo
Model
V70 2014
Category
Automobile
Language
English
Related product manuals
Volvo V70 2011
8 pages
Volvo V70 2013
16 pages
Volvo 2010 V70
290 pages
Volvo 2006 V70
138 pages
Volvo 2001 V70
122 pages
Volvo V70 2005
282 pages
Volvo 2004 V70
127 pages
Volvo 2008 V70
274 pages
Volvo 2003 V70
117 pages
Volvo V70 2006
10 pages
Volvo 2002 V70
123 pages
Volvo V70 2009
106 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
