Volvo V70 2014 User Manual

TP 39264202 V70(08-), XC70(08-) & S80(07-) 2014 © Volvo Car Corporation 2013 16
Fuses

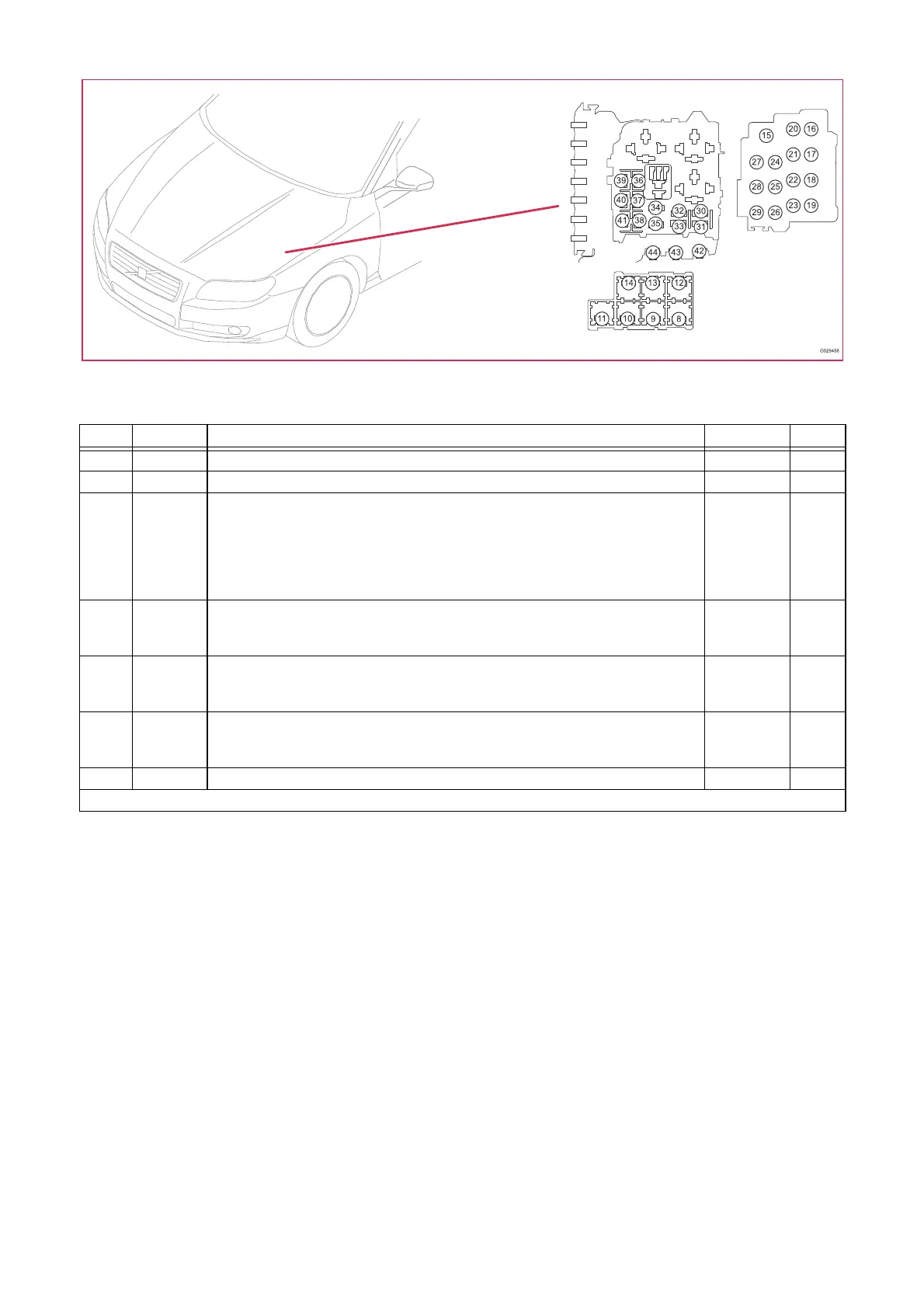

Distribution box in engine compartment F22-F31
15/31 Distribution box in engine compartment
No. No. Fuse function via A
F22 11B/22 - --
F23 11B/23 3/111 Light Switch Module (LSM) - 5
F27 11B/27 2/17 Relay, horn
2/31 Relay, 15-feed
2/182 Relay, headlight washer motor
4/56 Central Electronic Module (CEM)
6/104 Washer motor headlights
-
-
-
2/17, 2/31,
2/182
-
5
F28 11B/28 2/64 Relay, auxiliary lights
10/65 Auxiliary light, front right
10/69 Auxiliary light, front left
-
2/64
2/64
20
F29 11B/29 2/17 Relay, horn
16/10 Horn 1
16/11 Horn 2
-
2/17
2/17
15
F30 11B/30 2/32 Main relay, engine management system
4/46 Engine Control Module (ECM)
4/56 Central Electronic Module (CEM)
-
-
2/32
10
F31 11B/31 4/28 Transmission Control Module (TCM) - 15
continues
