TP 39264202 V70(08-), XC70(08-) & S80(07-) 2014 © Volvo Car Corporation 2013 29
MF1
F1
D1F9 R1
F10 F11 F12
R2
F2 F3 F4 F5
F6
MF2
2/166
2/246
I01322215/37

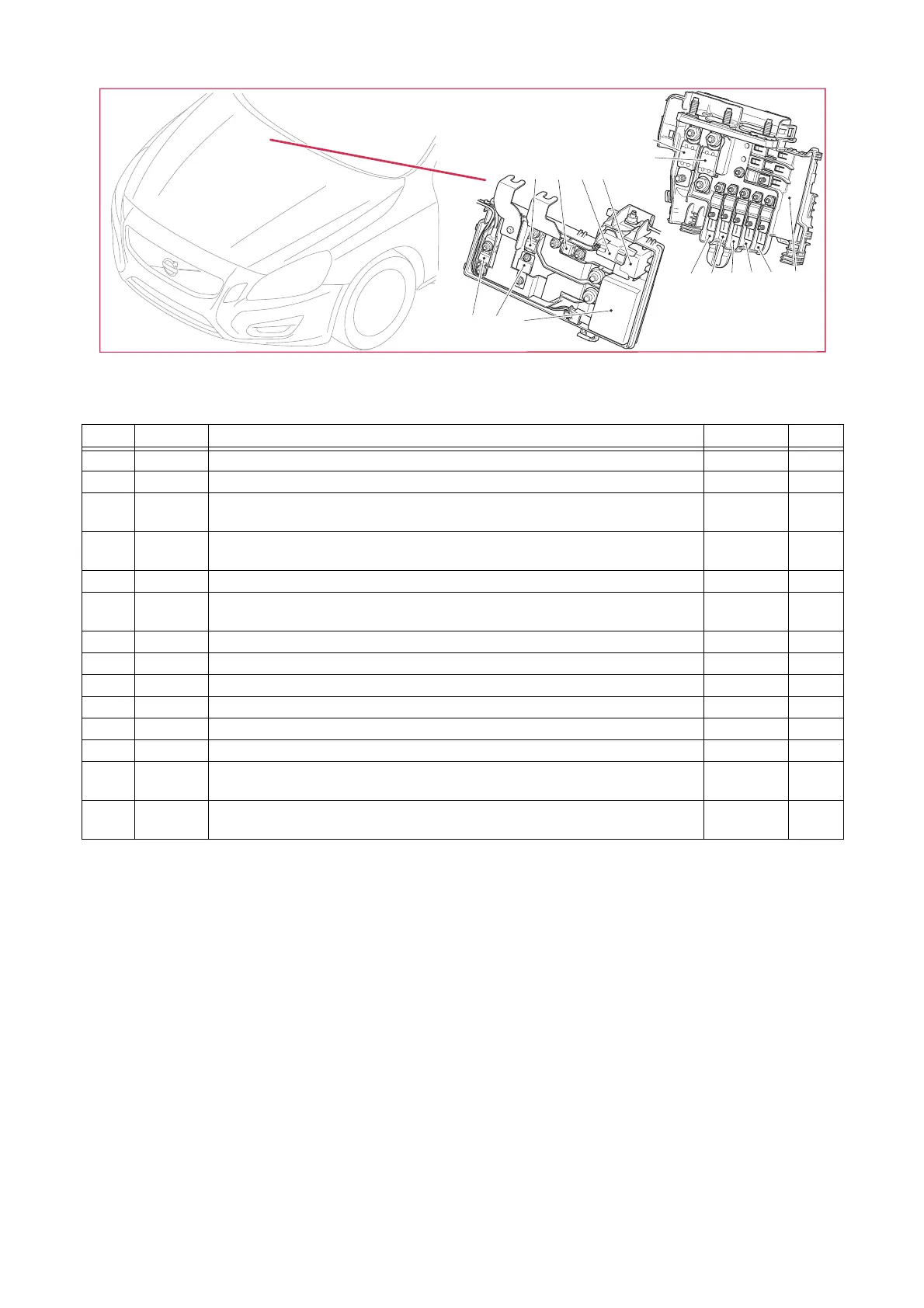

Fuses
Distribution box in engine compartment, cold zone F1-MF2
15/37 Distribution box cold zone in engine compartment, Start/Stop function
No. No. Fuse function via A
F1 11A/1 9/42 PTC-element - 100
F2 11A/2 4/56 Central Electronic Module (CEM) - 50
F3 11A/3 2/88 Relay, 15-feed rear
11C/21-11C/22 Fuses in distribution box passenger compartment
-
2/193
60
F4 11A/4 2/193 Relay, comfort functions
11C/23-11C/30 Fuses in distribution box passenger compartment
-
2/88
60
F5 11A/5 15/32 Distribution box in cargo compartment - 60
F6 11A/6 4/31 Passenger compartment fan control module
6/28 Motor, passenger compartment fan
-
-
40
F7 11A/7 Spare --
F8 11A/8 Spare --
F9 11A/9 6/25 Starter motor 2/35 30
F10 11A/10 Diode D1 -50
F11 M11 Secondary battery 2/246 70
F12 11B/12 4/56 Central Electronic Module (CEM) - 15
MF1 MF1 11A/1-11A/8 Main fuses in distribution box in
engine compartment (15/31)
- 175
MF2 MF2 11A/1-11A/8 Fuses in distribution box in cold zone
engine compartment (15/37)
- 175
