Wacker Neuson DV100 User Manual

BA D24 en/us* 1.0 * D24_1_0_500.fm 5-1
Operation 5
5 Operation

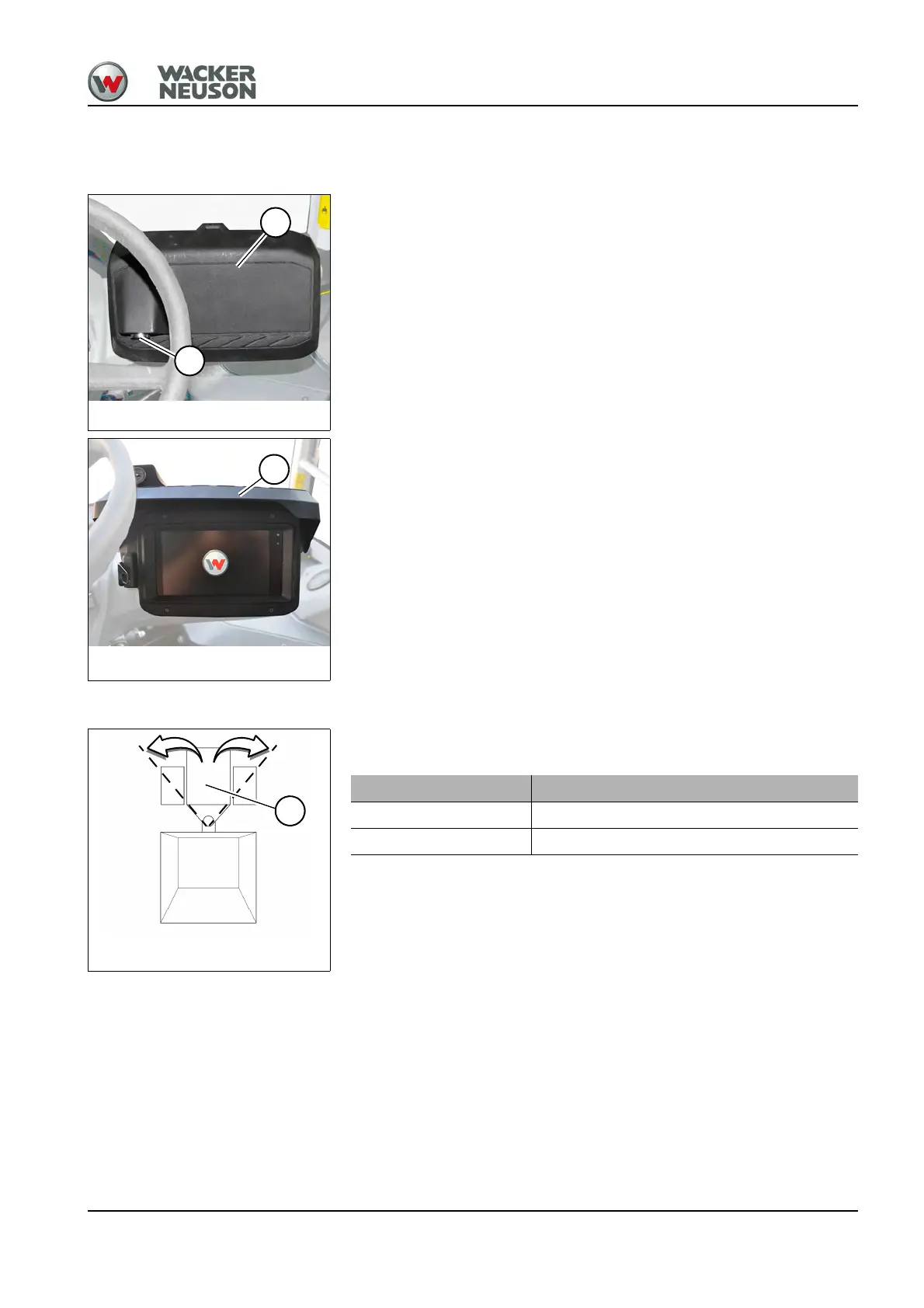

Screen protector
Before putting the machine into operation, open lock A with the starting
key and slide back instrument panel cover B until it locks into place.
Leave instrument panel cover B open during operation.
5.1 Steering system
The vehicle is equipped with articulated steering. The steering wheel
actuates a hydraulic cylinder, which pivots the drive unit A.
Emergency steering features
If the engine or the hydraulic pump fails, the vehicle is more difficult to
steer. Take this into account especially when towing the machine.
Fig. 96
B
A
Fig. 97
B
Fig. 98
A
Steering wheel Movement
Anticlockwise Drive unit is slews to the left
Clockwise Drive unit is slews to the right
Operation
