Travel levers/travel pedals
Accident hazard! The machine moves in the opposite
direction if the upper carriage is rotated by 180° and the
travel levers/travel pedals are actuated.
Injury hazard due to operating error of machine.
► Slowly and carefully actuate the pedals and control levers.
In order to avoid excessive track abrasion:
► Ensure that both tracks move as you change direction.
The stabilizer blade side is the front side.
Raise the standard bucket/attchment and the stabilizer blade.
Both the travel levers and the travel pedals can be used for traveling.
The travel speed depends on the position of the travel levers or travel
pedals.
The rear part of the travel pedals can be folded forward to save space.

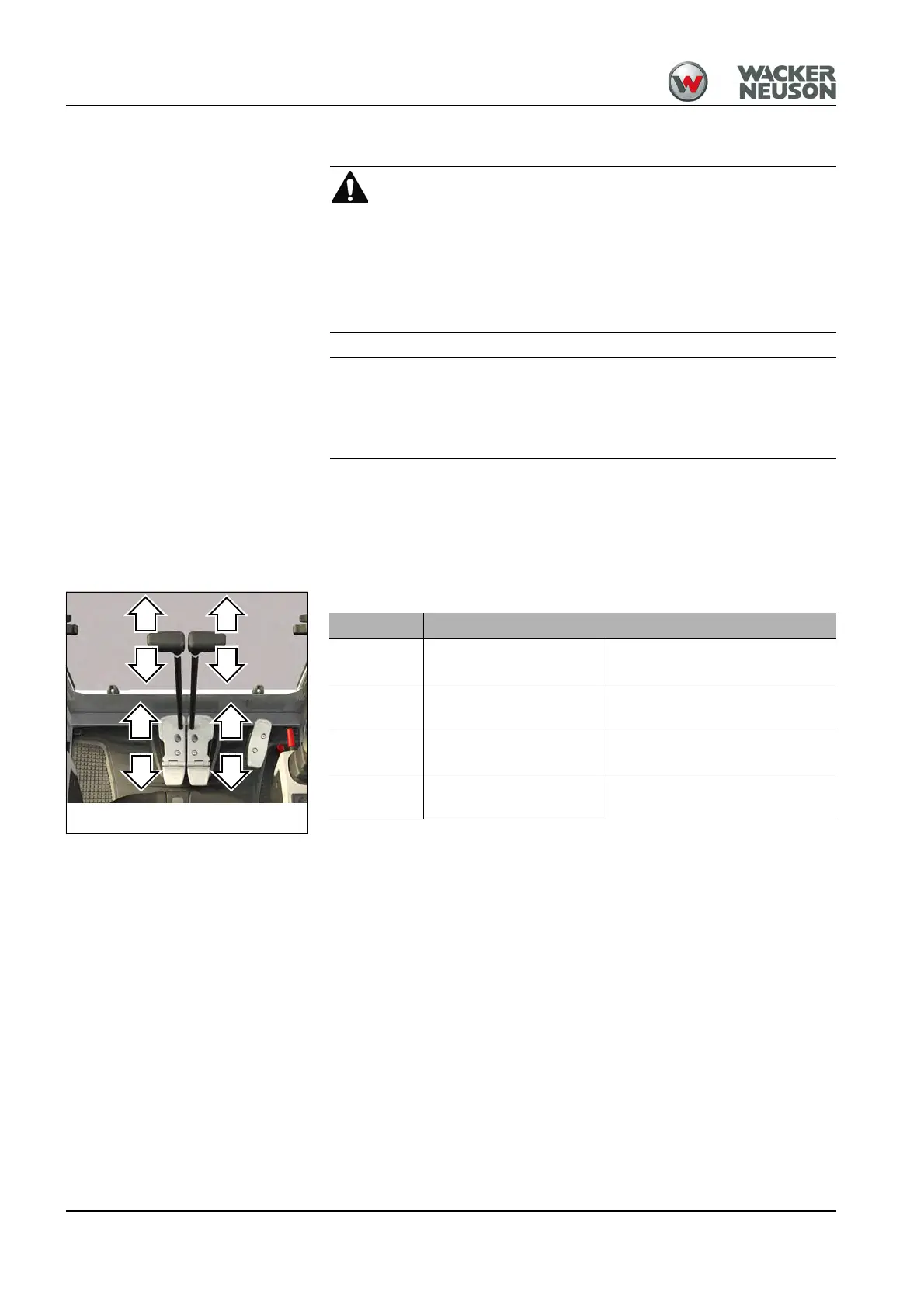

Fig. 137: Travel pedals/travel levers
1
2
3
4
1
2
3
4
Position Function
1
2
Move forward
Move forward
Machine moves forward
3
4
Move backward
Move backward
Machine moves backward
3
2
Move backward
Move forward
Machine turns to the left
1
4
Move forward
Move backward
Machine turns to the right
