OM ET18/20/24 us 1.3 * et18_20_24e300.fm 3-13
3

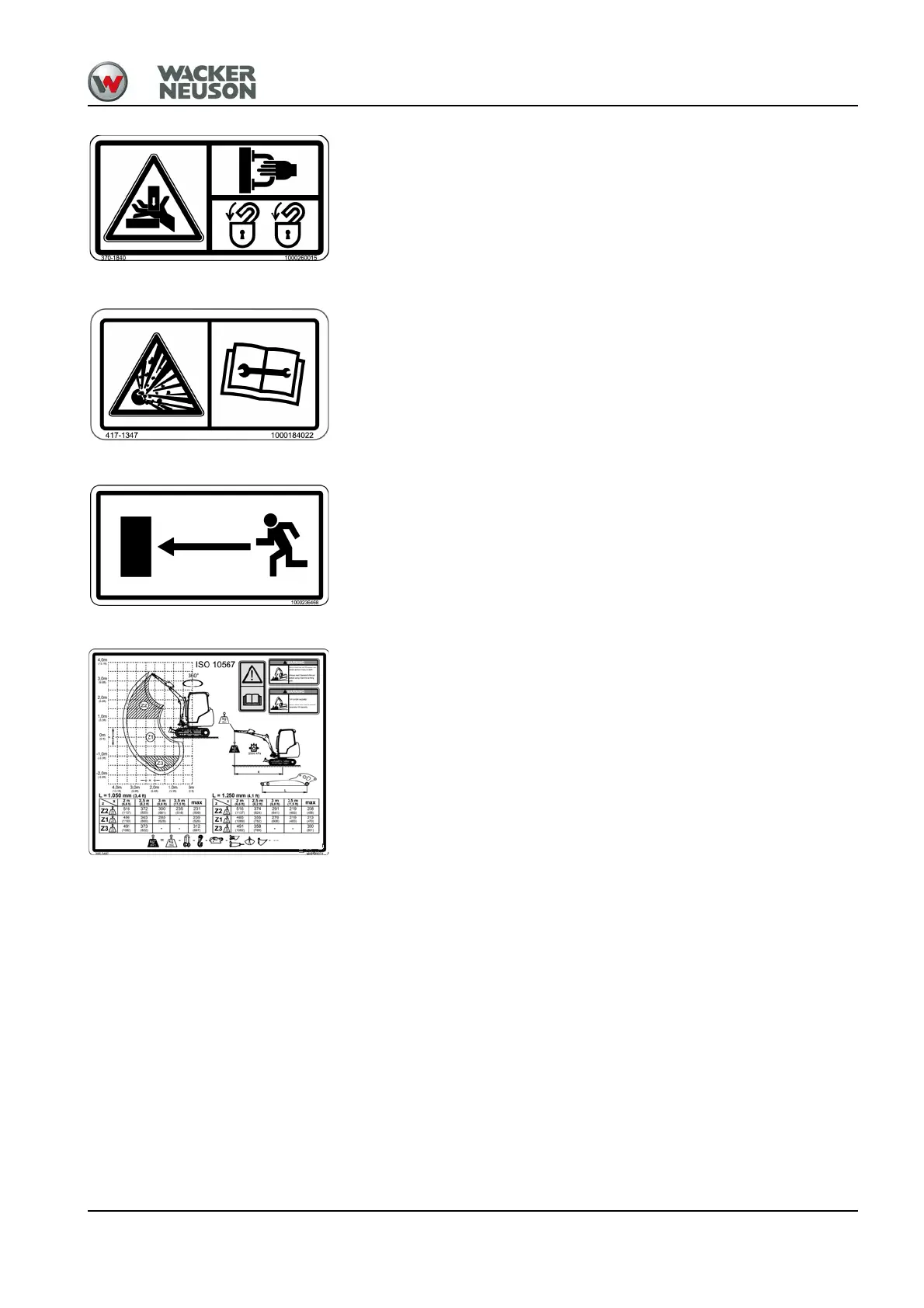

Meaning
Hand crushing hazard.
1. Always use the handles to open and close the front window.
2. Always lock the front window with both locks.
Position
On the front window.
Meaning
Accumulator is under high pressure. Always read the Operator’s Manual
before performing maintenance or repairs.
Position
Under the rear part of the machine, on the right (in traveling direction)
behind the engine oil sump.
Meaning (option)
This label indicates the emergency exit on machines equipped with the
Front Guard option.
Position
On the upper edge of the rear window in the cab.
Meaning (option)
If the specified load/stability is exceeded, there is a hazard of serious
crushing causing serious injuries and even death.
Possible serious damage to the machine.
Position
On the headliner.
Fig. 21: Pressure accumulator
