OM ET18/20/24 us 1.3 * et18_20_24b510.fm 5-45
5
Avoid tipping the machine and then releasing the boom hydrau-
lics to break up material or compact the work.
• Never use the dead weight of the machine for work.
• Use only the hydraulic force of the hydraulic cylinders.
Fully lowering the stabilizer blade
• Apply the full weight of the machine over the entire width of the stabi-
lizer blade when using it for stabilization.
Protecting the stabilizer blade against shocks
• The stabilizer blade or stabilizer blade hydraulic cylinder can be
damaged when hitting it against rocks etc.
Working on slopes
• When performing deep excavations with the stabilizer blade at the
front, ensure that the boom hydraulic cylinder and the attachment do
not touch the stabilizer blade.
• Position the stabilizer blade at the rear if possible.

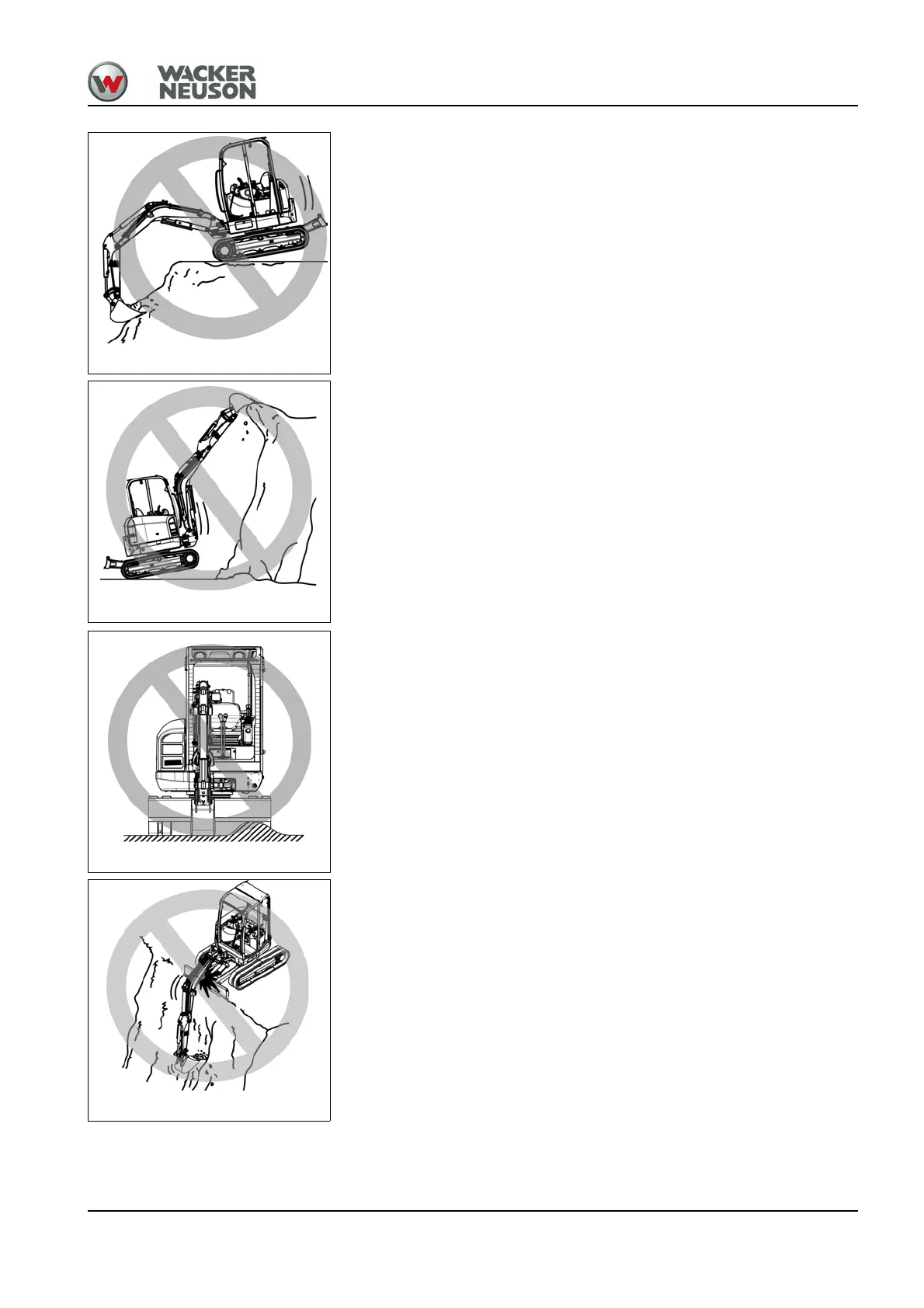

Fig. 194: Working with the falling force
Fig. 195: Working with the falling force
Fig. 196: Lowering the stabilizer blade
Fig. 197: Working on slopes
