Protective FOPS structure/small screen – level I (option)
Crushing hazard! Falling objects.
Causes severe injury or death.
► Install a protective FOPS structure in areas with risk of falling
objects.
► Machine operation is prohibited without a protective FOPS
structure.
The protective FOPS structure corresponds to level I according
to ISO 3449:1992
► The machine owner must ensure that the hazard situation is
evaluated and that the national regulations are observed.
► The machine owner ensure that only work is performed that
does not require any higher protection.
► Accidents cannot be fully avoided despite equipping a
machine with protective structures.
Assembly (grey screen)
1. Stop and park the machine. Stop the engine. See “Preparing
lubrication”.
2. Remove all lights and mirrors (option).
3. A minimum 2 persons are required for installing/removing.
4. Mounting point for protective structure: A

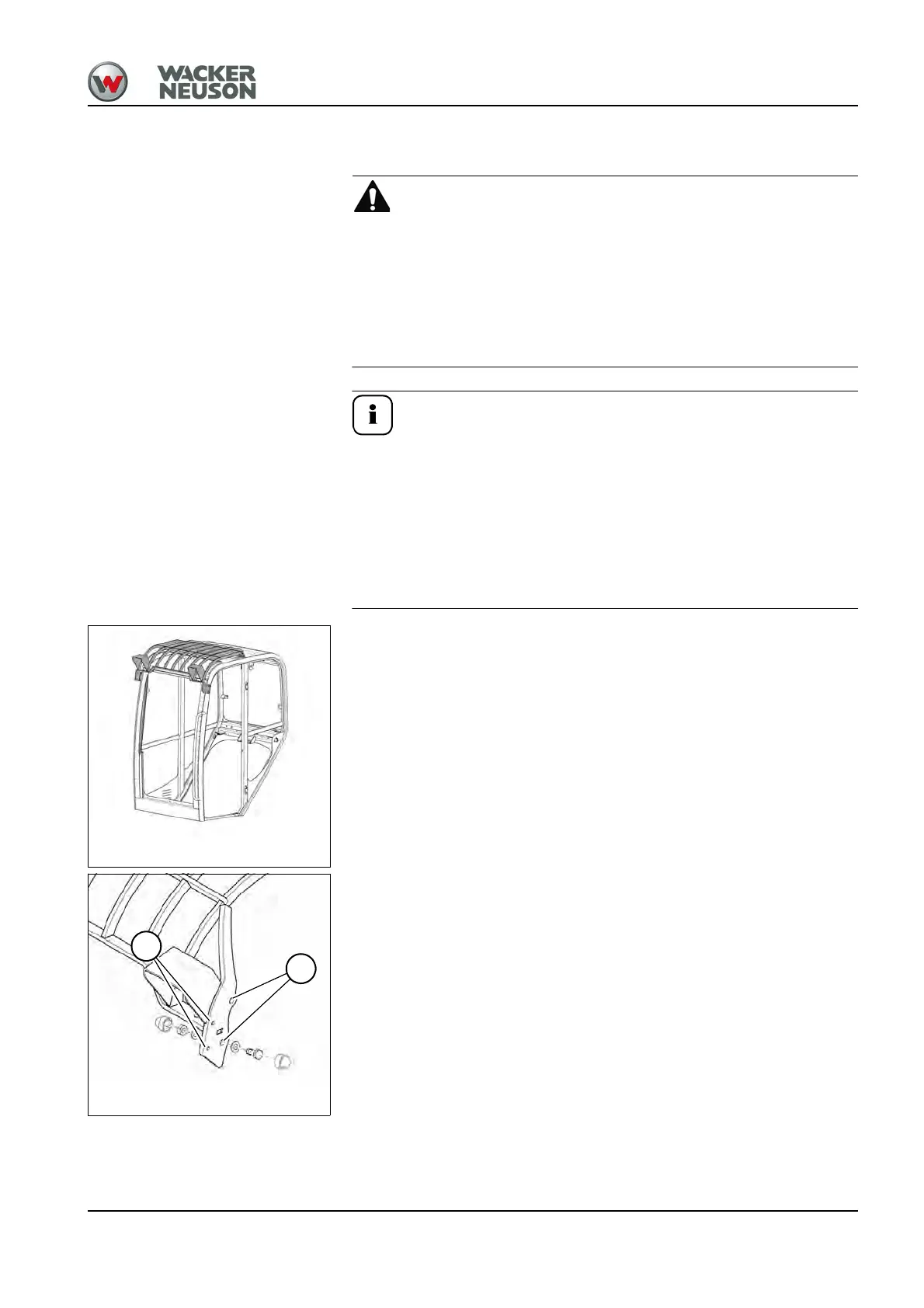

Fig. 90: Protective FOPS structure/small screen
– level I (symbolic representation)
Fig. 91: Small/grey FOPS (assembly)
C
A
