5.6 Circuit Breaker
See Graphic: wc_gr000553
This generator is protected by a 20 amp thermal circuit breaker (b)
located on the panel. When the circuit breaker opens, the breaker
button will pop out. To reset the circuit breaker, push the button in.

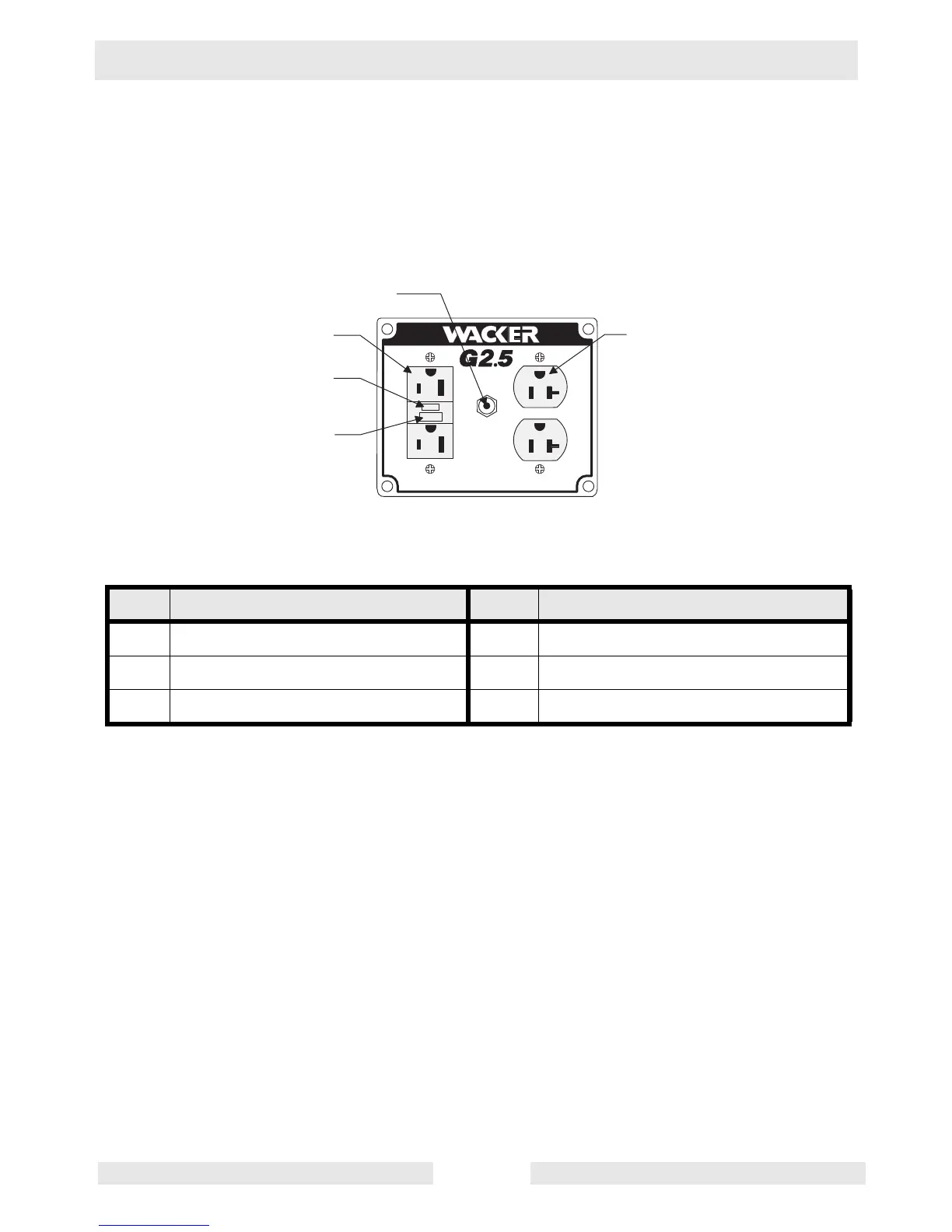

Control Panel
Ref. Description Ref. Description
a GFI Duplex receptacle - 120V d GFI Test button
b Circuit Breaker -20 Amp. e GFI Reset button
c Duplex receptacle - 120V
w c _ g r 0 0 0 5 5 3
1 2 0 V A C 2 0 A M P
a
d
e
b
c
