G 3.7A;G/GS 5.6A;GS 8.5V;GS 9.7V Portable Generator Repair
wc_tx000208gb.fm 84

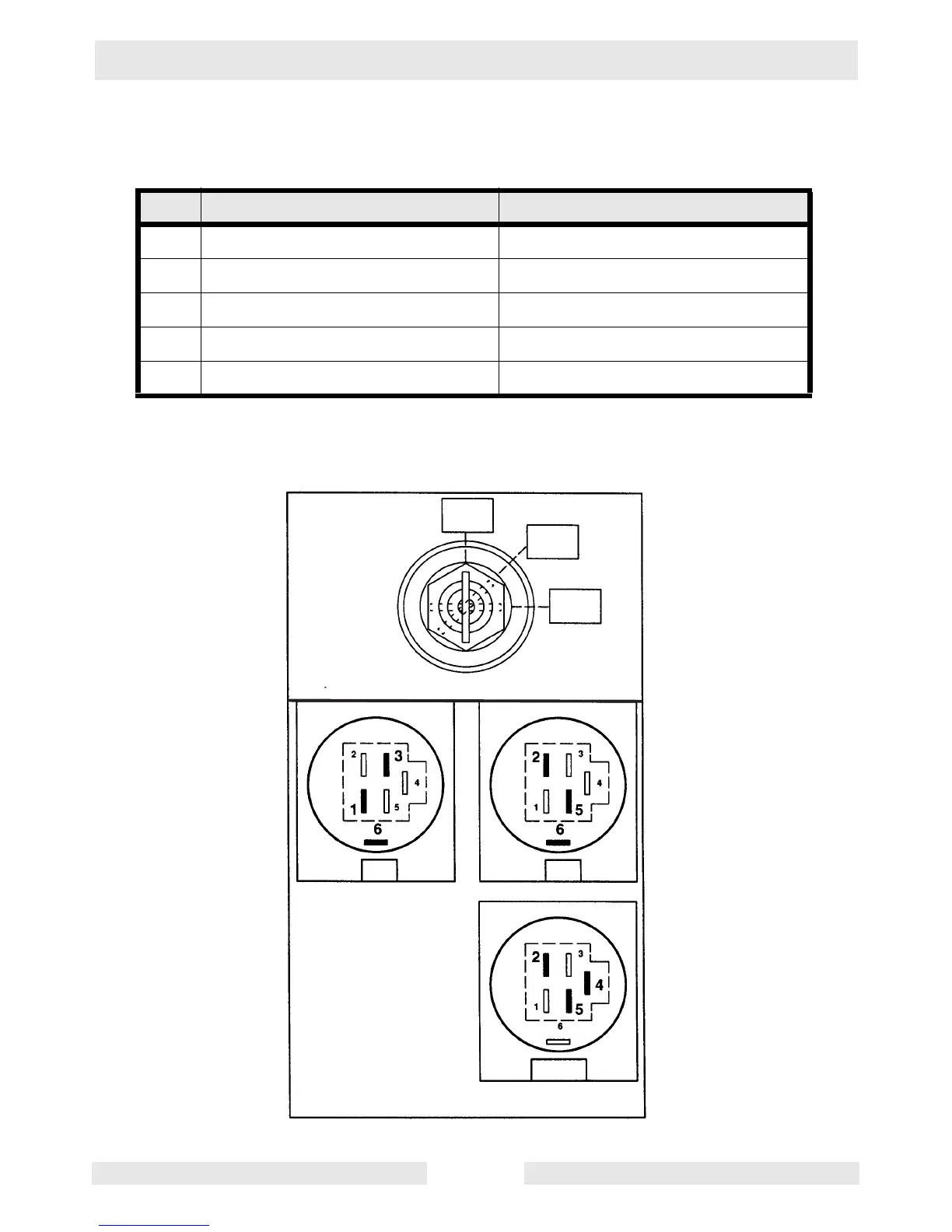

6.36 Vanguard Key Switch
See Graphic: wc_gr000953
Note: Terminal 1 grounded internally to switch case. Meter must also indicate continuity between
terminal 1 and switch case.
Ref. Switch Position Continuity
1. Off 1 + 3 + 6
2. Run 2 + 5 + 6
3. Start 2 + 4 + 5
4. Key Switch Positions N/A
5. Terminal Positions N/A
1
2
3
4
12
3
5
wc_gr000953
