SHOVEL ASSEMBLY

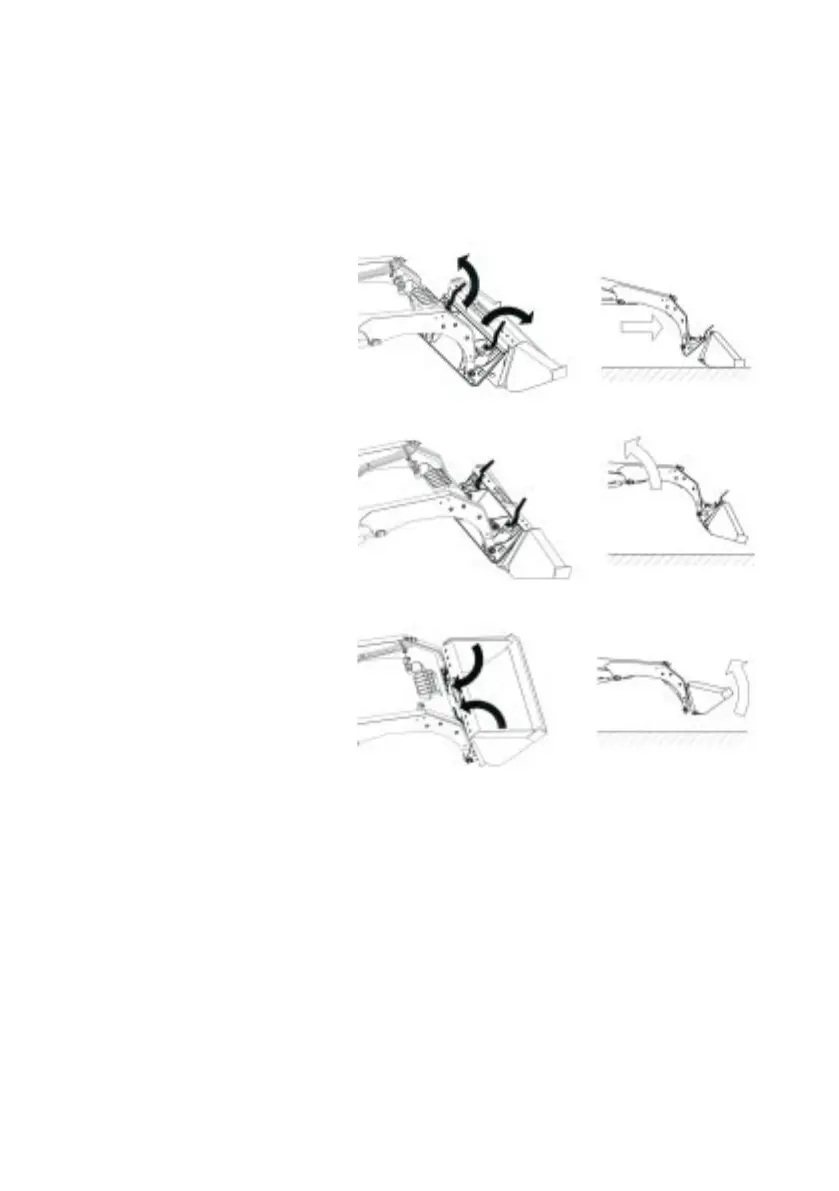

1 – Go to the shovel lying on the round
as shown in the diagram, turn the
quick fit device forward and turn
the attachment lever to the outside.
2 – When the shovel has been attached
raise the lifting arms so that the
shovel moves away from the
ground and turn the attachment
device backwards allowing the
shovel to rest on its base.
3 – Turn the levers inwards to block
the shovel on the attachment base.
SHOVEL RELEASE
To release the shovel proceed as follows:
1 - Rest the shovel on the ground
2 - Open the attachment lever
3 - Turn the quick fit device forward until the shovel is released from it’s seat and then remove the
shovel.
The mounting and disassembling procedure is to be repeated with any type of equipment author-
ised by the Manufacturer with the exclusion of special equipment whose mounting and disassem-
bling procedure will be delivered with the accessory.
EQUIPMENT AND ACCESSORIES
