Carburetor Replacement WM 80 Repair
70 wc_tx000522gb.fm

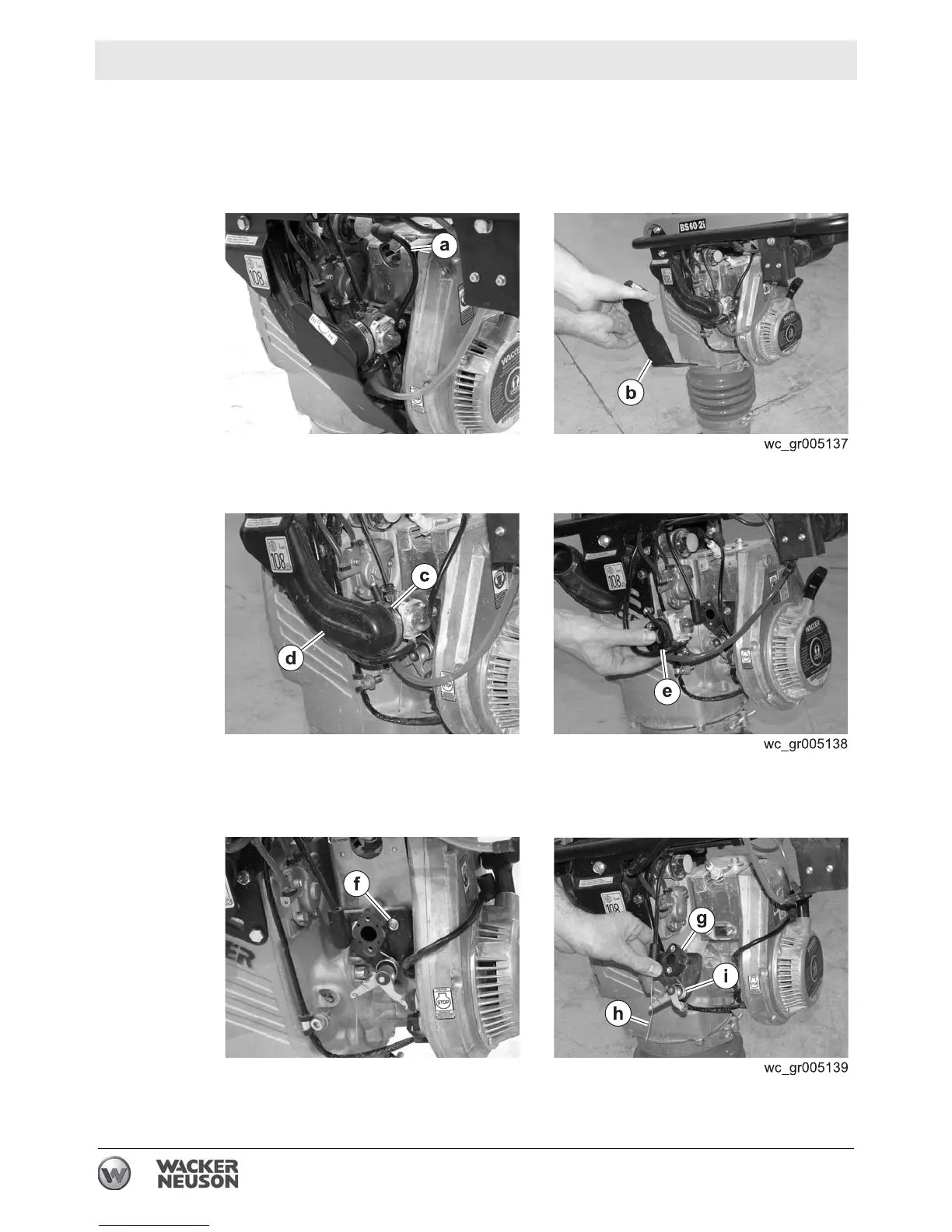

6.2 Removing Walbro Carburetor (standard choke models)
6.2.1 Stop the machine and allow it to cool.
6.2.2 Place the throttle in the OFF position.
6.2.3 Disconnect the ignition wire
(a) from the spark plug.
6.2.4 Remove the carburetor guard
(b).
6.2.5 Loosen the hose clamp (c) and remove the air duct (d).
6.2.6 Remove the two screws and remove the flange
(e) and the carburetor
from the machine.
6.2.7 Remove the screws (f) and remove the adapter (g).
6.2.8 Disconnect the throttle cable
(h). Remove the spring (i).
