HC920•HC940•HC960 35
GB
Description of unit
3.3 Illustration legend for gasoline HC units
1 Spray gun
2 High-pressure hose
3 Gasoline engine
4 Extractable handle
5 V-belt under the belt cover
6 Return hose
7 Suction tube
 8 High-pressurelter
9 Material feed pump — HC 940, HC 960
10 Material feed pump — HC 940-SSP, HC 960-SSP
11 Material feed pump — HC 920
12 Pressure gauge
13 Oil cup for separating oil (separating oil prevents
increased wear and tear of the packings)
14 Ball valve horizontal position –
hydraulic motor switched off
vertical position –
hydraulic motor switched on
15 Handle for swiveling the material feed pump
16 Hydraulic motor
17 Relief valve handle
Turn left for circulation k
Turn right for spray p
18 Hydraulic oil pump
19 Pressure control knob
20 Oil measuring stick

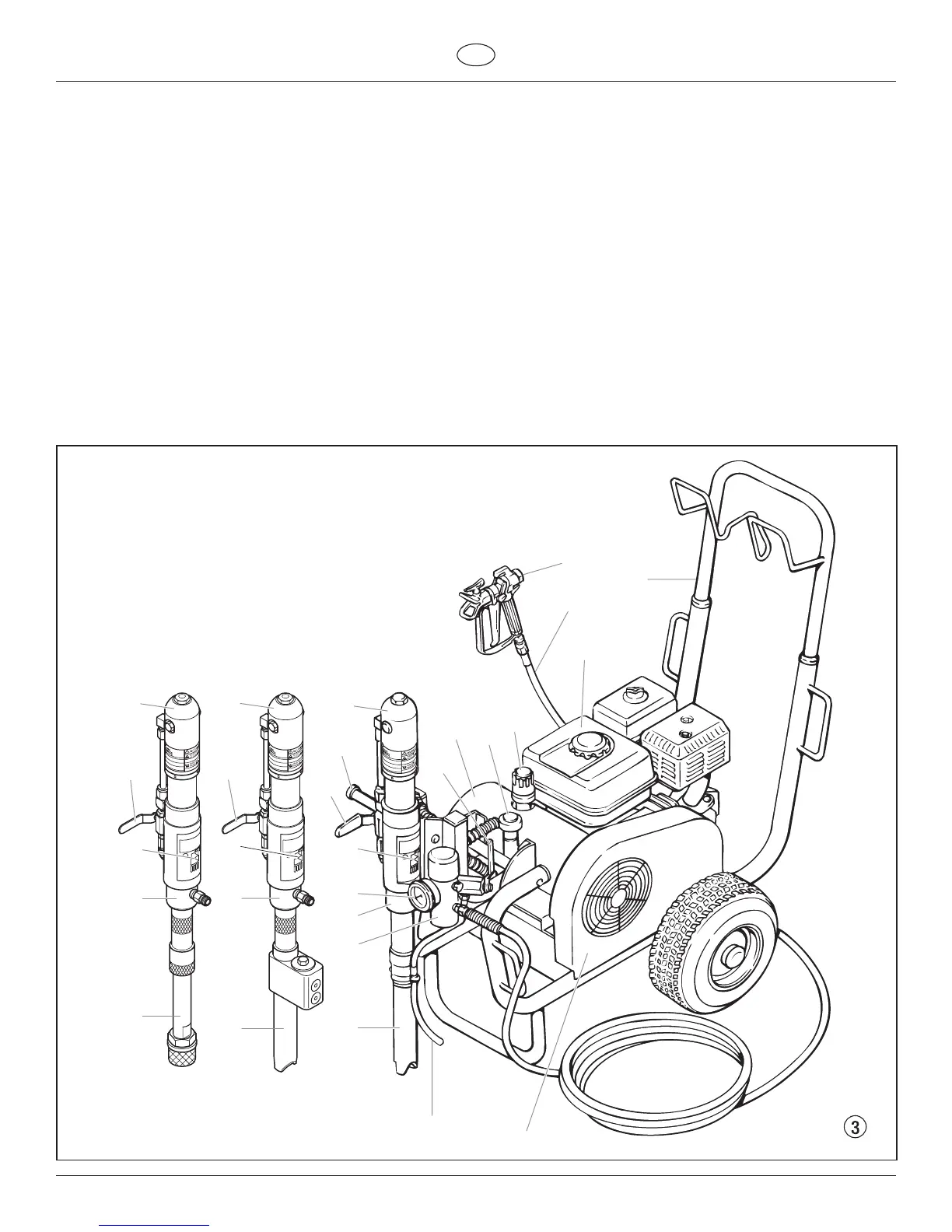

3.4 Illustration of gasoline HC units
2
3
4
1
17
18
19
20
5
6
7
9
8
13
12
14
15
16
14
7
11
13
16
14
7
10
13
16
