Webasto Thermo Top T Installation Instructions

Installation Location
Preferably, the heater should be installed in the engine
compartment, the splash-water protected areas of the front
fenders or at the splashboard.
If the heater cannot be installed in the aforementioned loca-
tions it may also be installed:
- in upright position in front of the gearbox (partly
covered, see Fig. 1) provided the fuel supply system is
not located in front of the engine, any auxiliary equip-
ment or the gearbox.
- in inclined position in front of the gearbox (see illus-
tration) provided
point “A” is located below the lower
edge of the gearbox and
at least 25 mm above
point “B”. This ensures that the heater can slide
underneath the gearbox in the case of an accident.
- in accordance with vehicle-specific Webasto installation
instructions which are to be presented to the officially
registered expert when the installation is being in-
spected.
The heater should be installed at a level as low as possible
so as to ensure automatic venting of heater and circulating
pump. This is of special importance since the circulating
pump is not of the self-priming type.
Note:
The heater must not be installed on the support plate in a
hanging position.
CAUTION:
The heater must not be installed in the following places:
- in the immediate vicinity of or above hot parts
- in the direct splash water area of the wheels
- in front of the engine block or the engine units
- in engine compartments which are open at the bottom,
below the wheel center (i.e. in each permissible mount-
ing position the bottom of the heater must be located
above the wheel center).
Caution:
The openings of the water connecting branches must not,
in any installation position, point in downward direction.
Nameplate
The type plate must be located at a place where it is pro-
tected against damage and must be easily accessible
once the heater has been installed (or a nameplate dupli-
cate is to be used).
The year not applicable is to be removed from the type
plate.
A
B
A
B
A
B
min 25

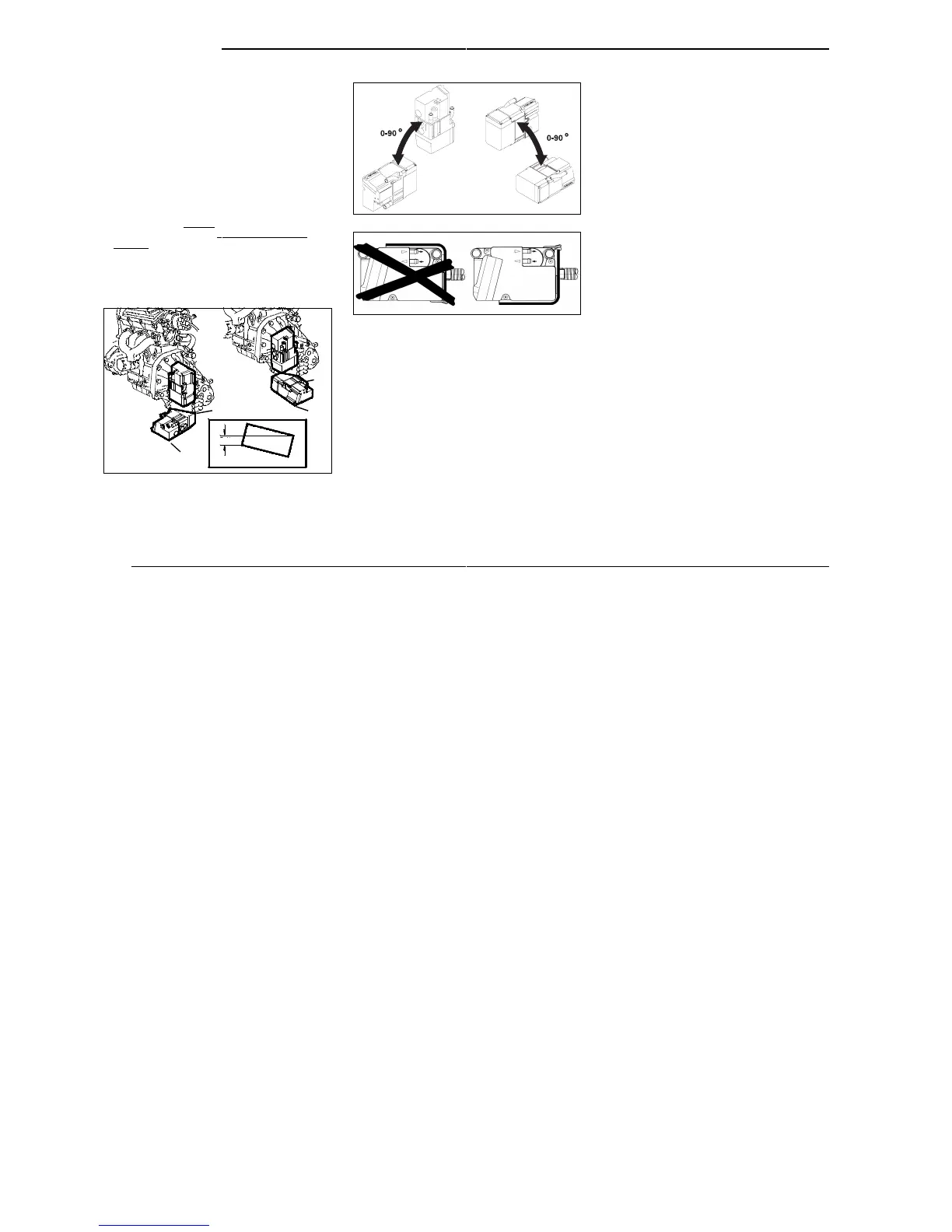

Fig. 1: Installation location in front of the gearbox
Fig. 2: Mounting position
Fig. 3: Mounting position
Thermo Top
18
