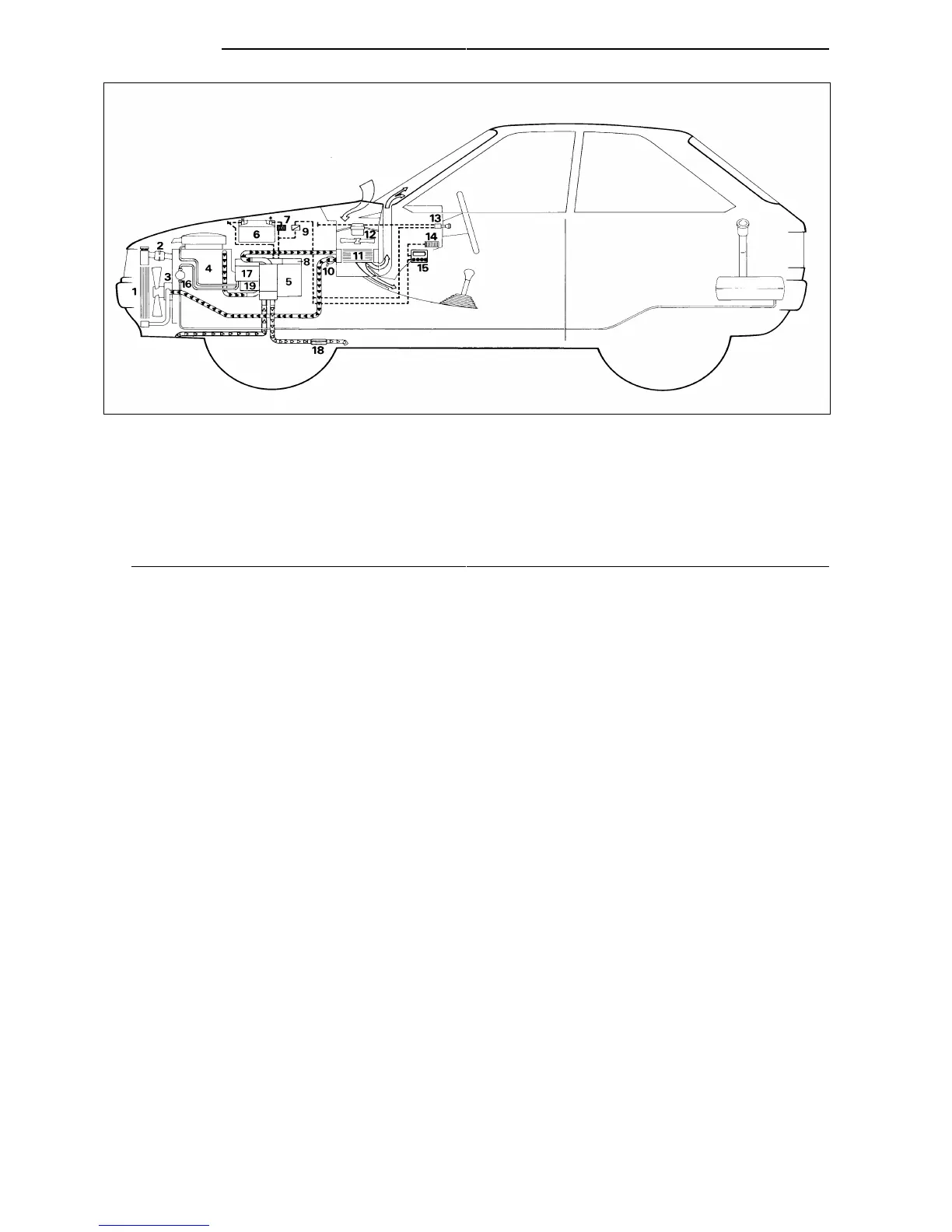

Fig. 6: Installation example of heater
Thermo Top
in a passenger car
1Radiator
2 Cooling water thermostat
3 Water pump (of car engine)
4 Standard equipment engine
5 Water heater
6Battery
7 Fuse holder
8 Control unit (in heater)
9 Relay (for vehicle fan)
10 Regulating valve of vehicle heating
11 Heat exchanger, vehicle heating system
12 Vehicle heater fan
13 Vehicle heater fan switch
14 Fuse bank in the vehicle
15 Digital timer
16 Fuel pickup
17 Fuel pump (in heater)
18 Exhaust muffler, as required
19 Circulating pump (in heater)
Thermo Top
20
