Overview「1」
1 Overview
PM53B control system consists of following components:
1) One motion control card of PM53B
2) One CD of NcStudio motion control software (not required if the software is customized)
3) One terminal board of EX23A
4) One DB37M/F cable (3m)
5) One FC16-DB15F cable (with rail block) for Manual Pulse Generator (MPG)
6) NK-MPG-05 (Optional)
PM53C control system consists of following components:
1) One motion control card of PM53C
2) One CD of NcStudio motion control software (not required if the software is customized)
3) One terminal board of EX23A
4) One DB37M/F cable (3m)

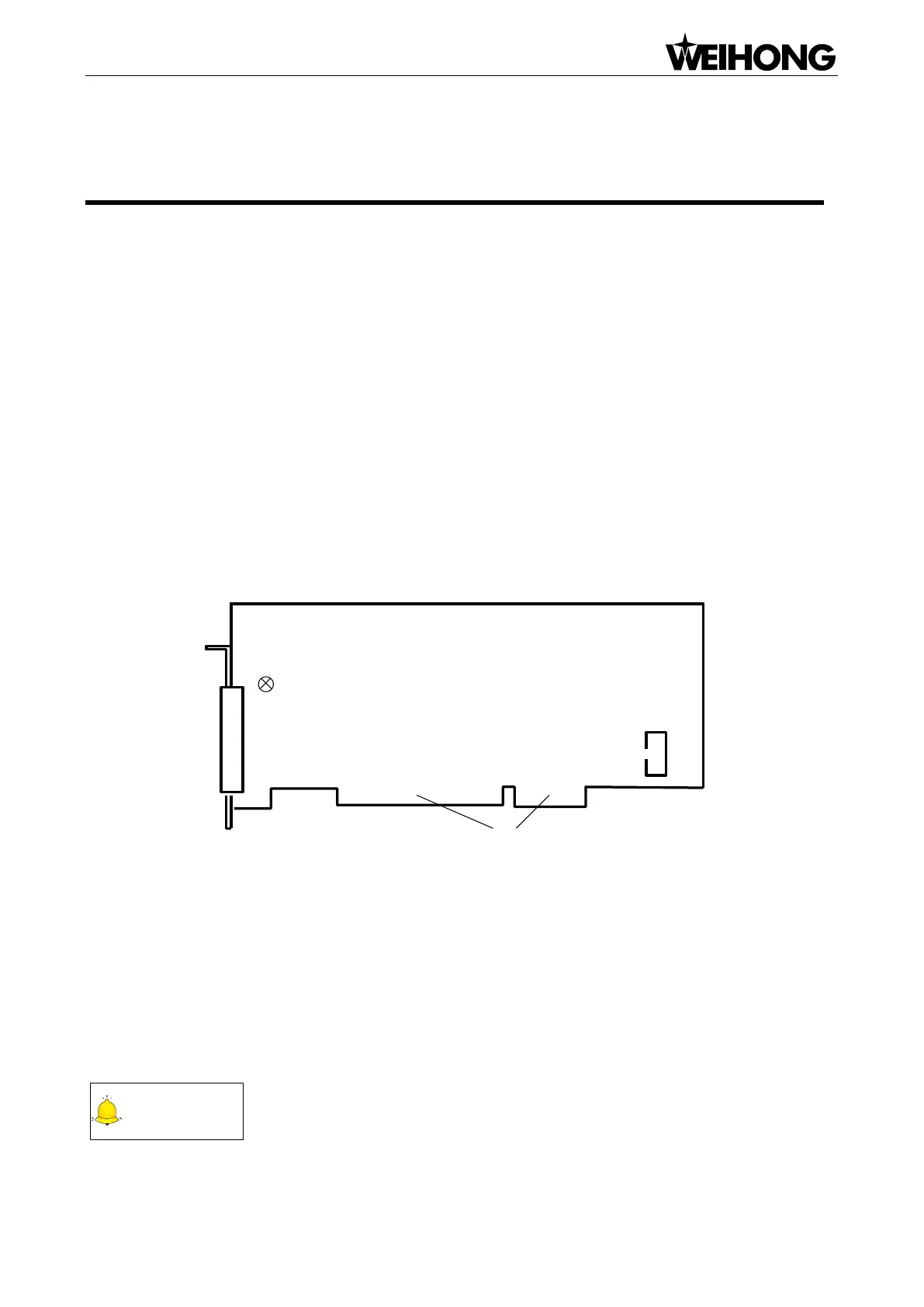

D1
PM53B/53C Motion Control Card
JP1
DB37M
JP2
Gold Fingers
Fig. 1-1 Structural Drawing of PM53B/53C Motion Control Card
See Fig. 1-1. PM53B/53C Motion Control Card uses PCI interface.
The size of PM53B control card is 165mm* 120mm. The Control Card has 2 sockets: JP1 is the
DB37M socket for the connection of control signals, and connected to the EX23A terminal board with
the cable DB37M/F. JP2 is the socket for Manual Pulse Generator (MPG) and connected to the back of
the host computer with the cable FC16-DB15F (with rail block).
The size of PM53C control card is 156mm* 96mm, with only one socket, JP1, which is DB37M socket
for the connection of control signals, and connected to the EX23A terminal board with cable DB37M/F.
There is a red LED D1 on each motion control card, which indicates their work status. When NcStudio runs
normally, D1 is off or it glows.
