Weishaupt WG20 1-C Z-LN Series User Manual

Installation and operating instruction
Gas burner WG20…/1-C Z-LN
3 Product description
83054602 1/2020-01 La
18-96
3.4.6 Rating
Combustion heat rating
Natural Gas
Liquid Petroleum Gas
35…200 kW
35…200 kW
Combustion head WG20-C

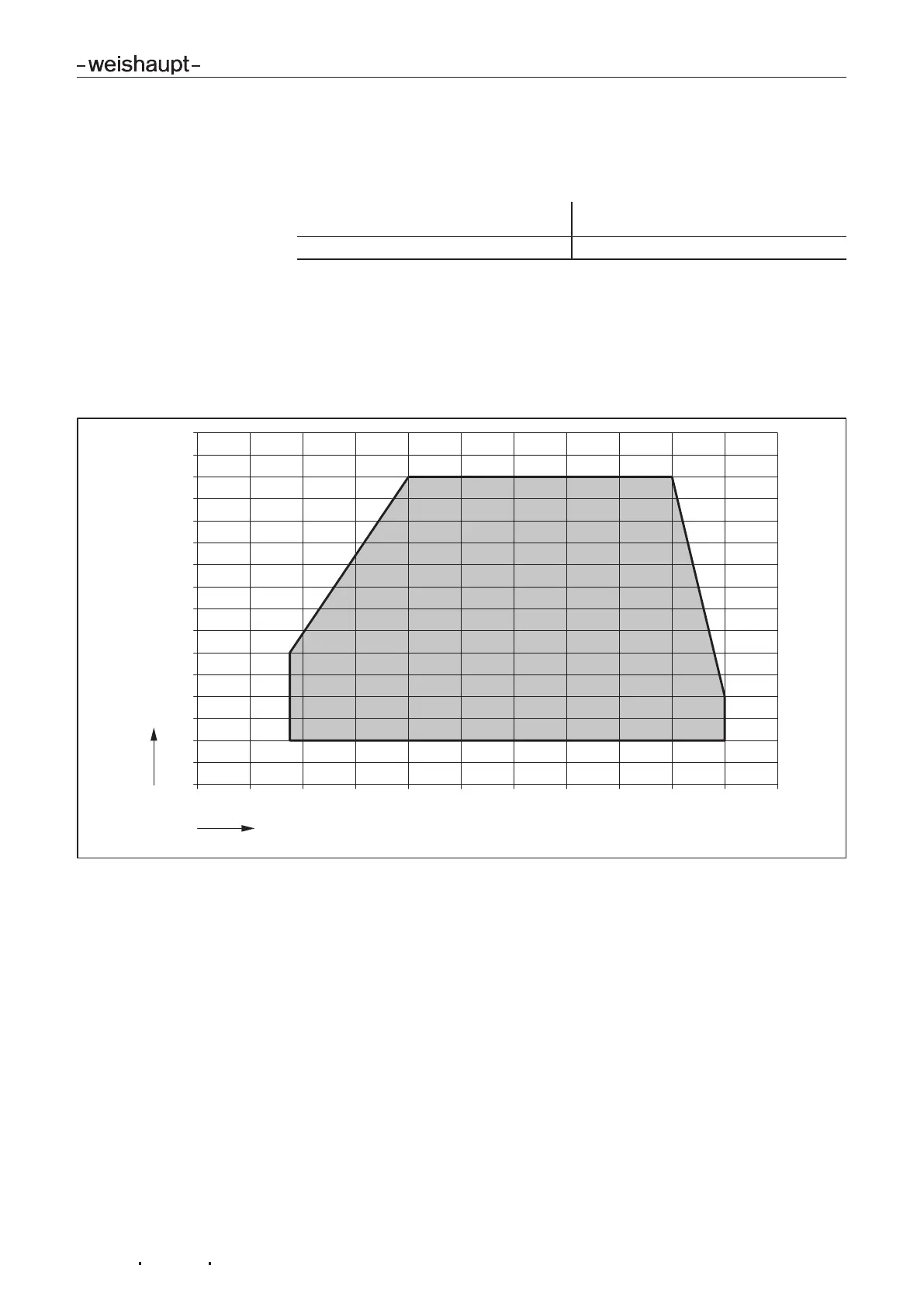

Capacity graph
Capacity graph to EN676.
The capacity data given relates to an installation elevation of 0m above sea level.
For installation elevations above 0m a capacity reduction of
approx.1%per100m applies.
A limited capacity graph is valid for ducted air intake.
-1.0
-0.5
0
0.5
1.0
1.5
2.0
2.5
3.0
200 40 60 80 100 120 140 160 180 200 220
2
1
1 Combustion heat rating [kW]
2 Combustion chamber pressure [mbar]
