Installation and operating instruction
Gas burner WG20…/1-C Z-LN
9 Servicing
83054602
1/2020-01
La
57-96

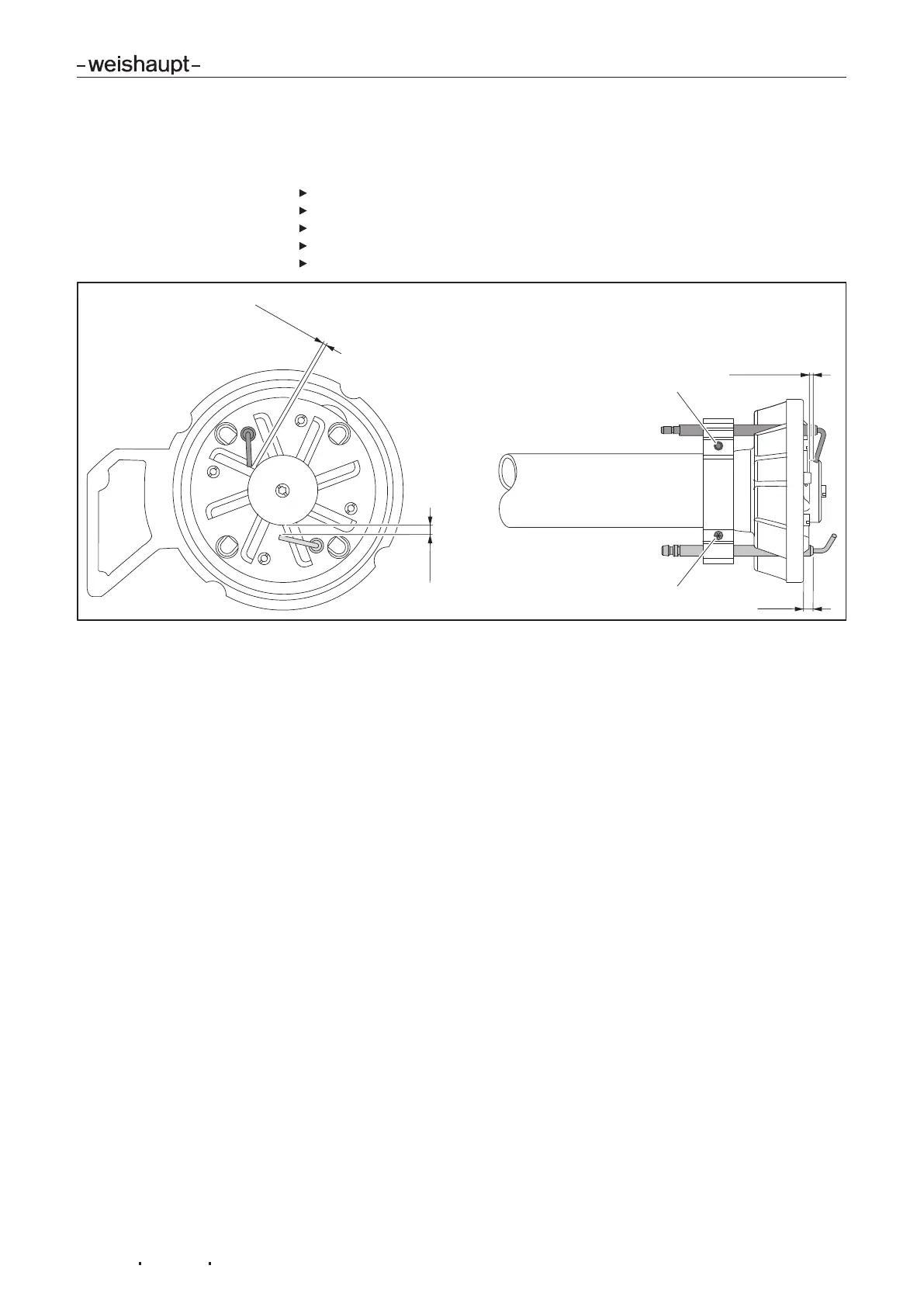

9.5 Set ionisation and ignition electrodes
Observe notes on servicing [ch.9.1].
Remove mixing head [ch.9.3].
Undo screw
1
.
Set ignition electrode and re-tighten screw.
Undo screw
2
.
Set ionisation electrode and re-tighten screw.
5 mm
5 mm
1.5 ... 2 mm
1.5 ... 2 mm
1
2
56
58
