Weishaupt WG20 1-C Z-LN Series User Manual

Installation and operating instruction
Gas burner WG20…/1-C Z-LN
9 Servicing
83054602 1/2020-01 La
63-96

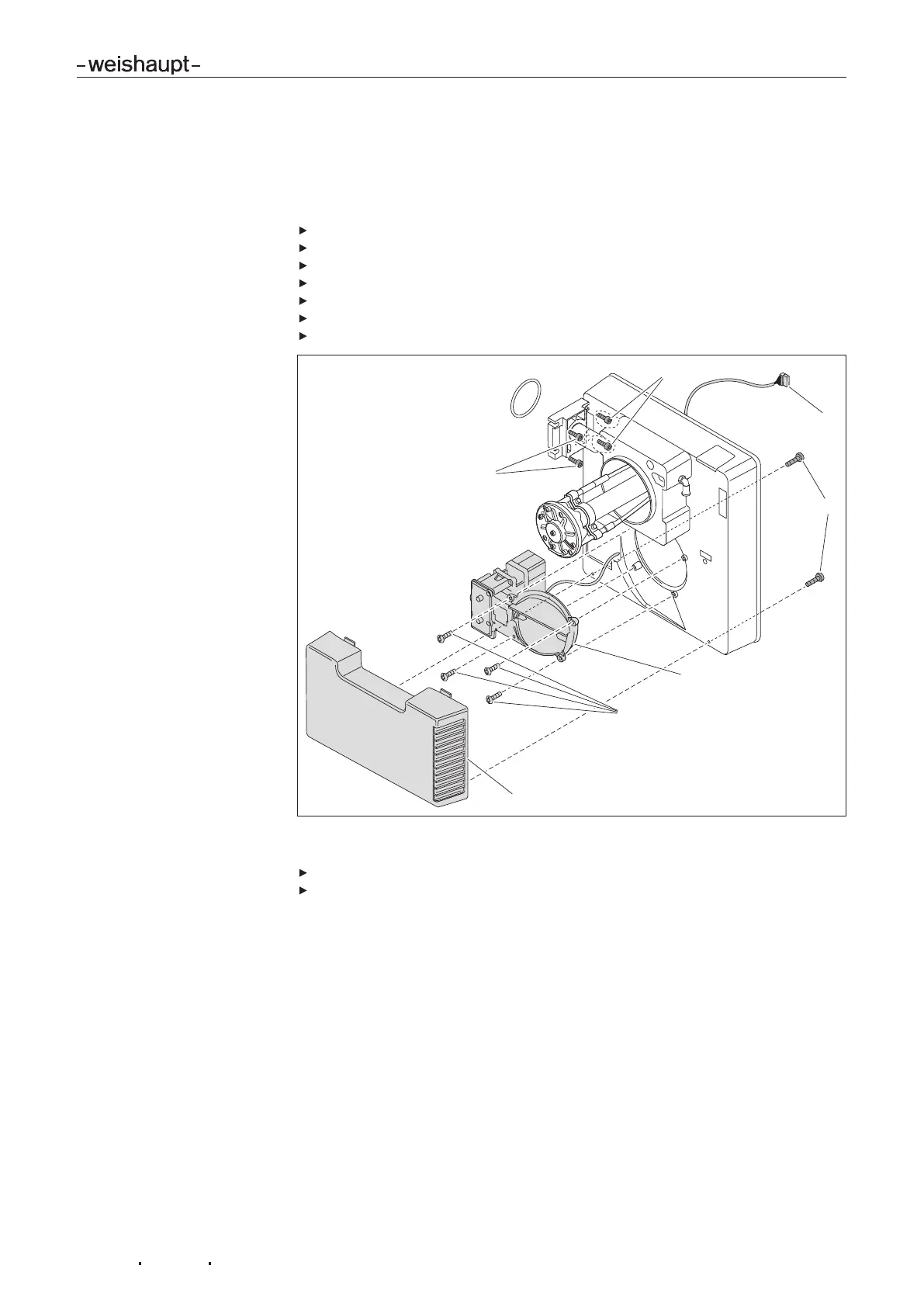

9.12 Removing and refitting air regulator
Observe notes on servicing [ch.9.1].
Removing
Remove bolts 1.
Remove burner from heat exchanger [ch.4.2].
Remove actuator plug 6.
Remove bolts 2.
Remove intake housing 5.
Remove bolts 4.
Remove air regulator 3.
2
4
3
5
1
1
6
Refitting
Refit air regulator in reverse order.
Carry out soundness test [ch.7.1.3].
