Installation and operating instruction
Gas burner WG20…/1-C Z-LN
9 Servicing
83054602
1/2020-01
La
59-96

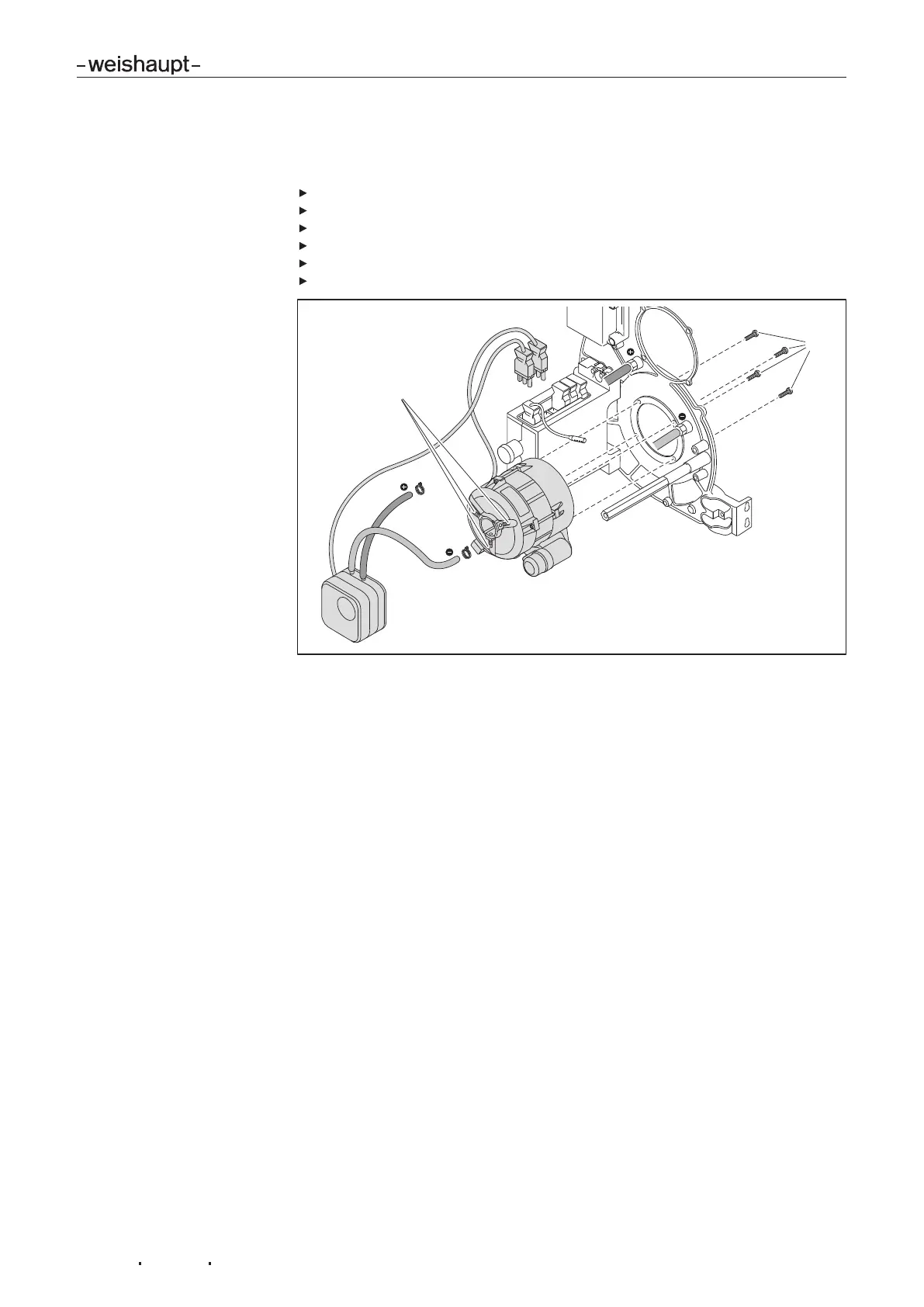

9.8 Remove burner motor
Observe notes on servicing [ch.9.1].
Remove fan wheel [ch.9.7].
Unplug plug number3 and11.
Disconnect + and - hoses.
Undo screws
1
and remove air pressure switch.
Hold motor and remove screws
2
.
Remove motor.
1
2
58
60
Table of Contents
Table of Contents
2
User Instructions
5
Target Group
5
Symbols
5
Guarantee and Liability
6
Safety
7
Designated Application
7
When Gas Can be Smelled
7
Safety Measures
7
Personal Protective Equipment (PPE)
7
Normal Operation
7
Electrical Work
8
Gas Supply
8
Alterations to the Construction of the Equipment
8
Noise Emission
8
Disposal
8
Product Description
9
Type Key
9
Serial Number
10
Function
11
Air Supply
11
Gas Supply
12
Electrical Components
13
Program Sequence
14
Technical Data
16
Approval Data
16
Electrical Data
16
Ambient Conditions
16
Fuels
16
Emissions
17
Rating
18
Dimensions
19
Weight
20
Installation
21
Installation Conditions
21
Burner Installation
22
Rotate Burner by 180° (Optional)
23
Installation
25
Gas Supply
25
Installing the Gas Valve Train
26
Carry out Soundness Test of Gas Supply Line and Vent
28
Electrical Connection
29
Operation
30
Operating Panel
30
Display
30
Commissioning
31
Prerequisite
31
Connect Measuring Devices
32
Check Gas Connection Pressure
33
Check Soundness of Gas Valve Train
34
Purging the Gas Valve Train
37
Preset Pressure Regulator
38
Setting Values
40
Preset Gas and Air Pressure Switch
41
Adjusting the Burner
42
Set Pressure Switches
46
Set Gas Pressure Switch
46
Set Air Pressure Switch
47
Concluding Work
48
Check Combustion
49
Calculate Gas Throughput
50
Shutdown
51
Servicing
52
Notes on Servicing
52
Service Plan
54
Removing and Refitting Mixing Head
55
Set Mixing Head
56
Set Ionisation and Ignition Electrodes
57
Service Position
58
Removing and Refitting Fan Wheel
58
Remove Burner Motor
59
Removing and Refitting Air Damper Actuator
60
Removing and Refitting Angle Drive
61
Removing and Refitting Gas Butterfly Valve
62
Removing and Refitting Air Regulator
63
Replacing Coil on Multifunction Assembly
64
Replace Breather Plug of Multifunction Assembly
65
Removing and Refitting Filter Insert of Multifunction Assembly
66
Replacing the Fuse
67
Troubleshooting
68
Procedures for Fault Conditions
68
Illuminated Push Button off
68
Illuminated Push Button Red
69
Illuminated Push Button Flashes
73
Operating Problems
73
Technical Documentation
74
Wiring Diagram
74
Conversion Table Unit of Pressure
76
Appliance Categories
77
Project Planning
81
Continuous Running Fan or Post-Purge
81
Spares
82
Notes
92
Key Word Index
93
