3.7 Safety devices
Meaning
The combi oven has a number of safety devices to protect the user from hazards. It is absolutely essential that all safety
devices are fitted, secured correctly and in working order when operating the combi oven.
Position and function

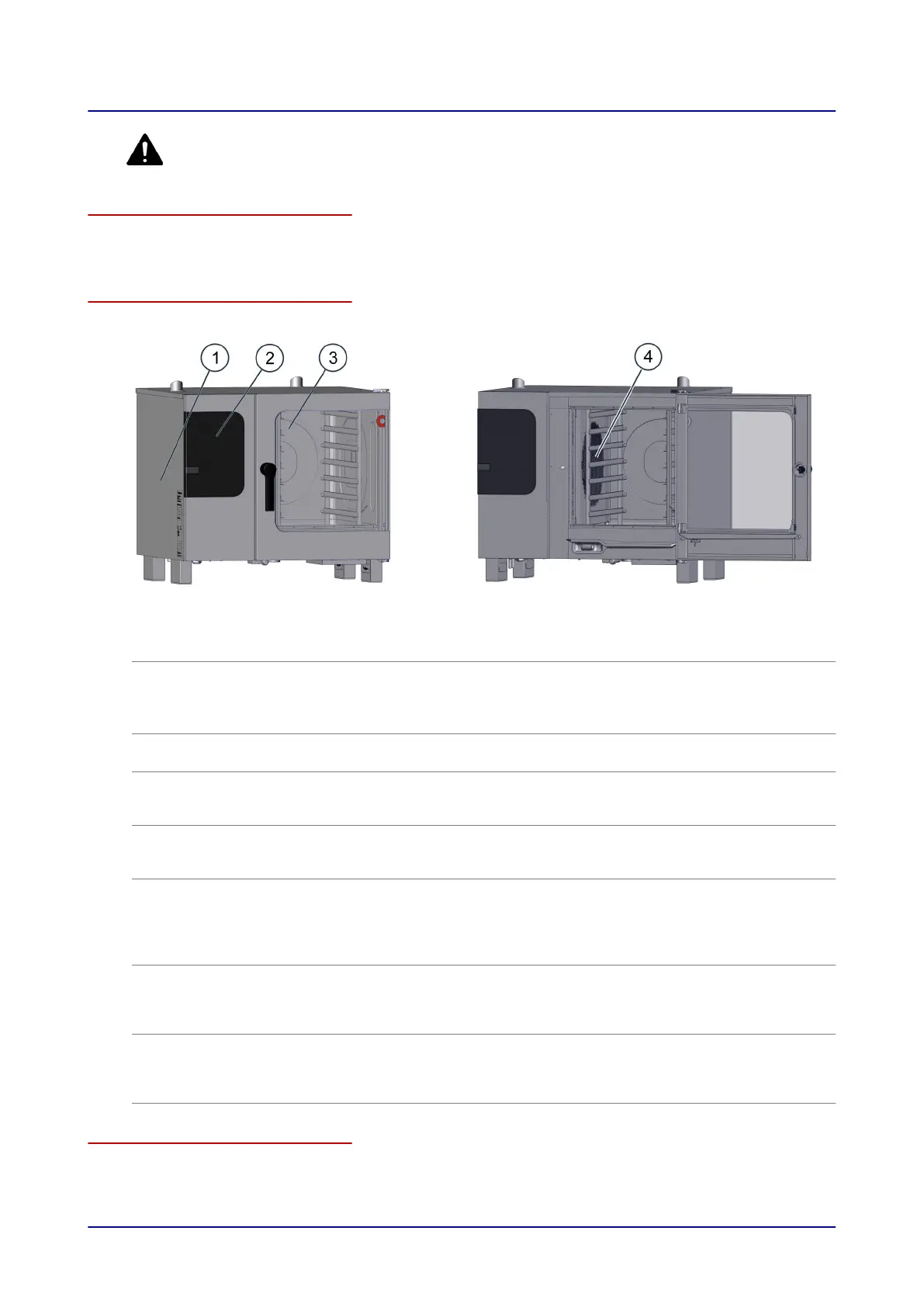

The following illustration shows a size 6.10 electric combi oven as representative of all table-top units:
Item Protective device Function Check
1
Cover can only be removed
using tool
■
Prevents live parts from being
touched accidentally
■
Prevents access to the moving fan
from the wiring compartment
Check that the cover is in place
2
Operating panel can only
be removed using a tool
Prevents live parts from being
touched accidentally
Ensure that the operating panel is in
place
3
Appliance door Protects the user and outside envi-
ronment from hot steam
Check the door pane regularly for
scratches, cracks, indentations etc.
and replace it if any are found
4
Suction panel in cooking
chamber; can only be re-
moved using a tool
Prevents access to the moving fan
and ensures good heat distribution
See 'Releasing and securing the
suction panel' on page
90
5
(no picture)
Safety thermostat
■
Boiler
■
Cooking chamber
Switches off the appliance if temper-
ature too high
An error code is output in the event
of a fault
(Please contact an authorized serv-
ice company to reset the safety ther-
mostat)
6
(installed by
customer)
Disconnector Used to disconnect the appliance
from the power supply during clean-
ing, repair and servicing work and in
a hazardous situation
There is no need for the user to per-
form a test
7
(installed by
customer)
Gas shut-off device Used to disconnect the appliance
from the gas supply during cleaning,
repair and servicing work and in a
hazardous situation
There is no need for the user to per-
form a test
Safety measures
The following measures increase the safety additionally:
3 For your safety
User manual 31
