Windsor iExtract 26 Duo User Manual

33
Maintenance
Onboard Charger (Optional)
Circuit breaker must be off before unplugging
batteries.
Le disjoncteur doit être éteint avant de débrancher
les batteries

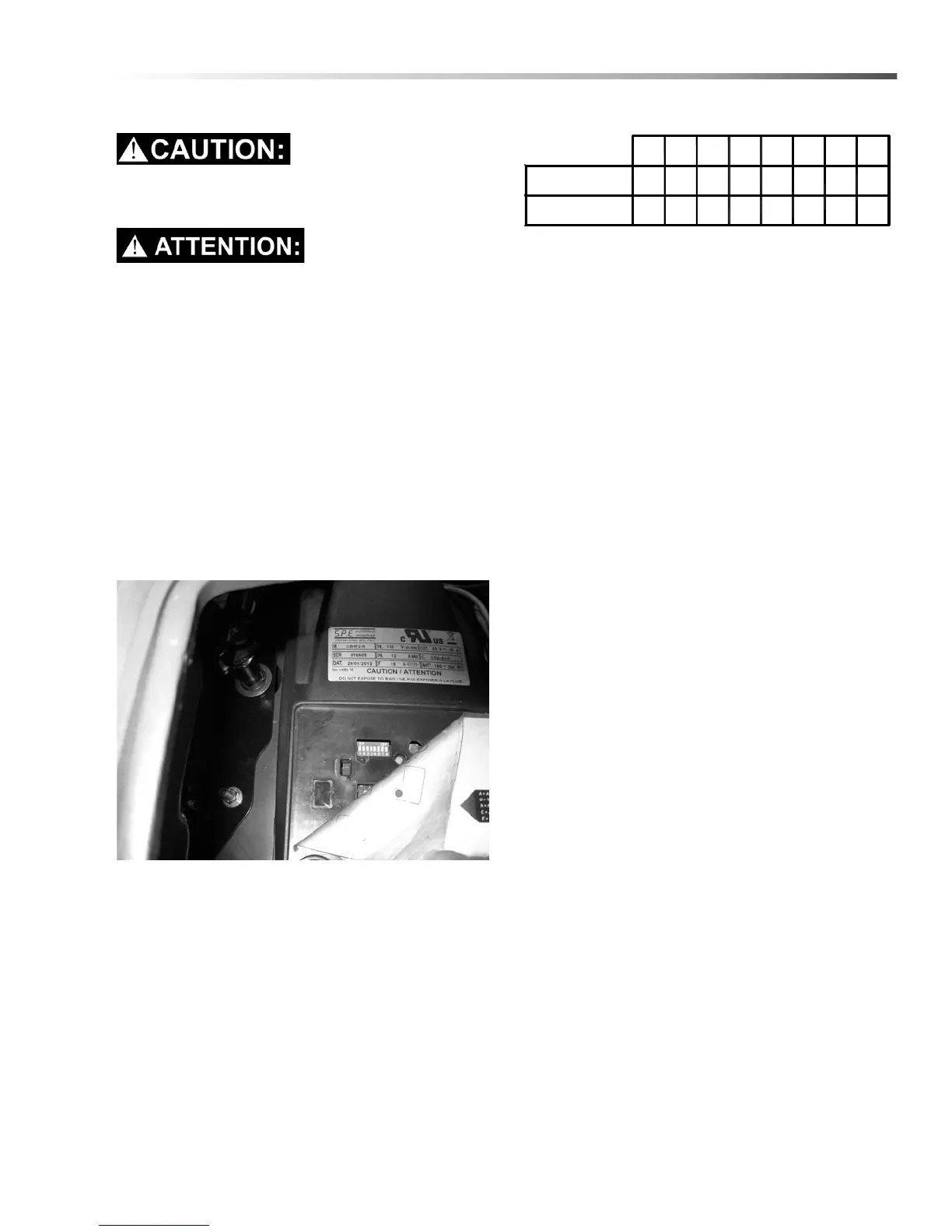

Battery Charger Programming
For machines equipped with optional on-board charger.
When replacing batteries, charger programming
changes may be required. If replacing batteries with
same type, (e.g. maintenance free batteries with main-
tenance free) no programming is required. When
batteries with different type (e.g.maintenance free with
wet cell), programming change are required. Failure to
make programming changes may lead to reduced
battery life.
1. Remove four screws from charger mounting
bracket. Lift charger out of console.
2. Peel back label on charger to access dip switches.
3. Change switches to correct battery type.
4. Replace charger label and lower charger back into
console. Tighten four screws to secure mounting
bracket to console.
1
234 5678
DIP
DIP DIP DIP DIP DIP DIPDIP
LEAD ACID
DISCOVER AGM
OFF
ON ON OFF ON ON OFFON
ON
OFF OFF OFF ON ON OFFOFF
86372820 Chariot 3 iExtract 26 Duo
