Installation
975-0136-01-01 13
Mounting a Network Connector
To mount a network connector:
1. Select an appropriate location with the connector in the recommended
mounting orientation, as shown in Figure 7.
2. Mark the position of the mounting screws.
3. Pilot drill the two mounting holes.
4. Fasten the network connector to the mounting surface with two #6
screws.
Installing Xanbus-enabled Devices
If you are installing a Xanbus-enabled device on an existing Xanbus
System, see “Putting the System in Safe Mode” on page 16.
To install the Xanbus-enabled devices:
1. Determine and prepare the location for each device. Refer to the
installation procedure in the appropriate guide. See “Related
Information” on page iv.
2. Measure and determine the required cable length, taking into
consideration the routing and strain relief requirements.
Do not exceed the total recommended cable length of 130 feet (40
meters).
3. Mount the devices according to the installation procedure in the
appropriate guide.
4. Connect to the network.

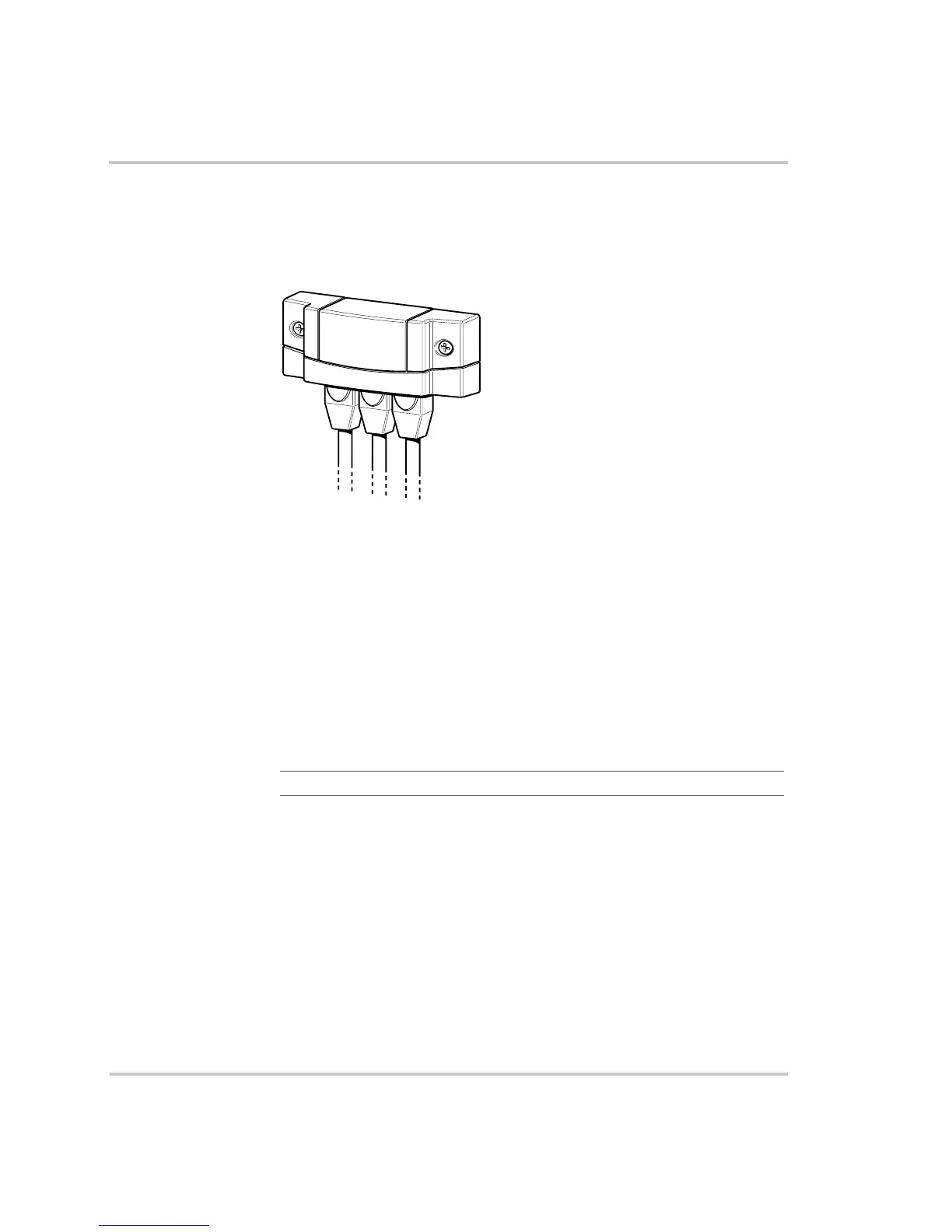

Figure 7
Recommended Mounting Orientation for Network Connector
Important:
Mount cables and network connectors in a dry location.
