Xerox Phaser 3500 Service Manual

Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-39
Exit and Duplex Rollers
1. Remove:
■ Covers on page 4-4
■ Left Cover on page 4-5
■ Top Cover on page 4-8
Note: When you remove the exit rollers, the rollers underneath are spring loaded and can
become lost if not careful.
2. Remove the locking bearings from both ends of the shaft.

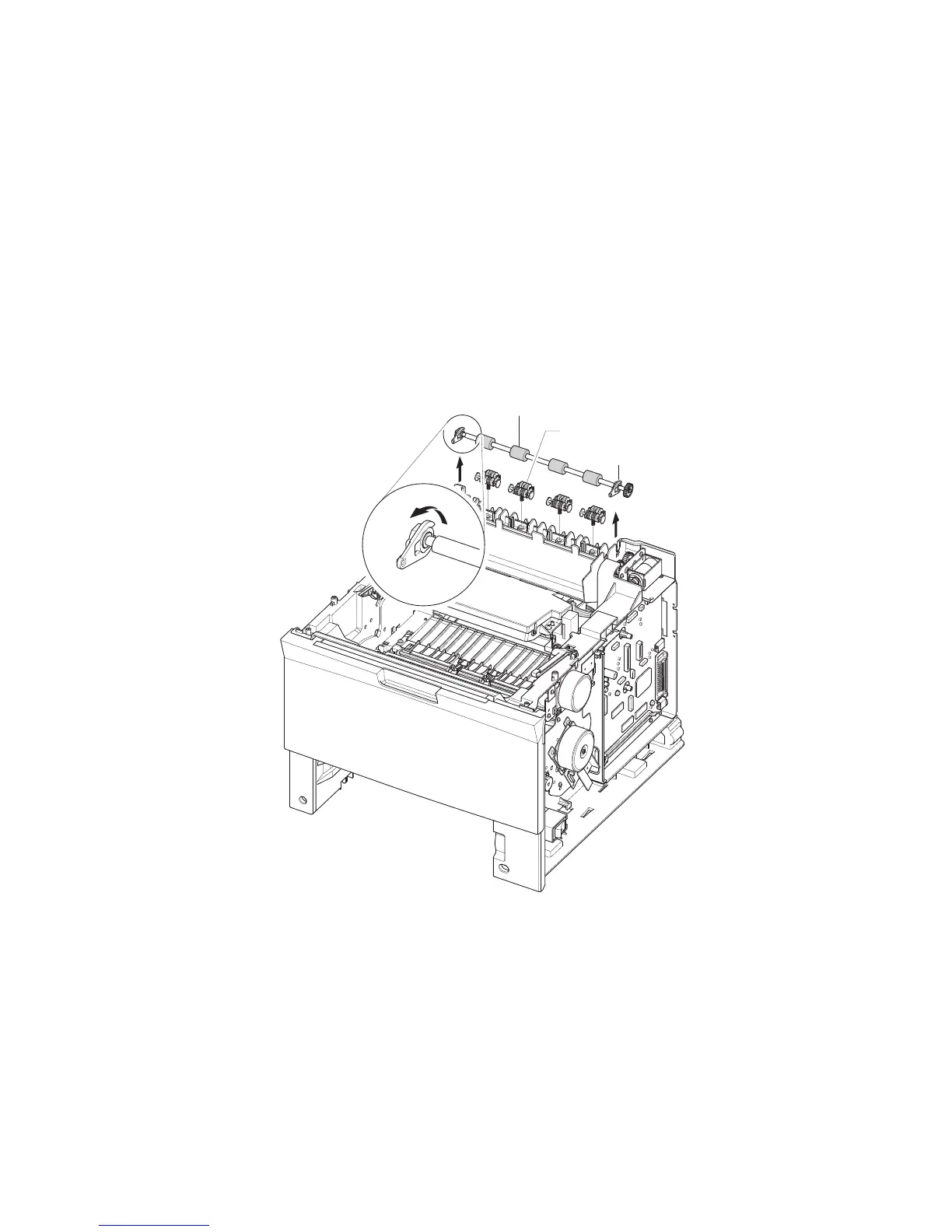

Bearing
Rack-Exit Roller
Exit Roller
s3500-101
