XFX nForce 780i 3-Way SLI User Manual

XFX nForce 780i 3-Way SLI Motherboard
5
1. CPU Socket 11. USB headers 21. SPDIF connector
2. NVIDIA SPP with Active fan 12. Motherboard battery 22. PCI slots
3. CPU fan connector 13. Fan connector 23. PCI Express x16 slots (SLI)
4. DDR DIMM Slots 0 - 3 14. Serial connector 24. 1394a connector
5. 24-pin ATX Power Connector 15. Front panel connector 25. PCI Express x1 slot
6. IDE Connector 16. Jumper 26. Backpanel connectors (Figure 2)
7. Serial-ATA (SATA) connectors 17. Power button 27. Heat dissipater
8. FDD connector 18. Reset Button 28. 8-pin ATX_12V power connector
9. NVIDIA MCP (passive heat sink) 19. Azalia HD Audio Header 29 MCP/SPP fan connector
10. Serial-ATA (SATA) connectors 20. FP Audio connector

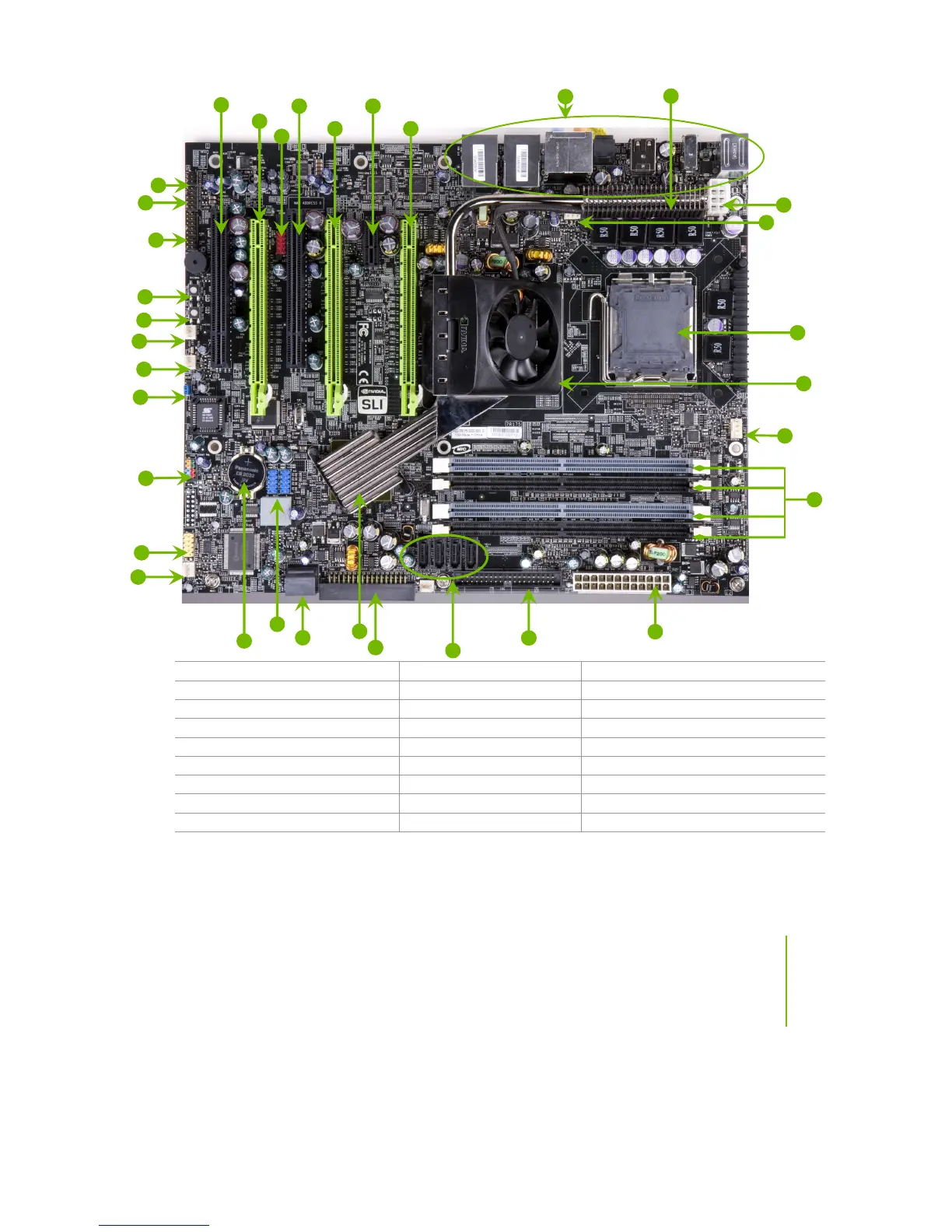

Figure 1. XFX nForce 780i SLI Motherboard Layout
2
1
4
3
5
10
8
9
7
6
13
14
15
16
22
23
22
25
23
26
28
11
12
20
23
24
17
13
13
27
29
19
21
18

XFX nForce 780i 3-Way SLI Specifications

General

Brand	XFX
Model	nForce 780i 3-Way SLI
Category	Motherboard
Language	English
