Getting Started
Modifying the Receiver Settings
Repeat the steps in Modifying the Driver Settings. Adjust the receiver (U2) simulation
parameters.
For more information on the driver settings, refer to UG386
, Spartan-6 FPGA GTP
Transceivers User Guide.
Notes relevant to this section:
• The global simulation temperature setting can be changed in either driver or
receiver configurators (see Figure 1-5). However, because it is a global setting in
Eldo, the last change made is applied to the entire circuit, regardless of whether
the TX or RX configurator is used to make that change.
• Be sure to click only once. If multiple instances of the configurators are open, close
all but one by clicking their Cancel buttons.
X-Ref Target - Figure 1-5

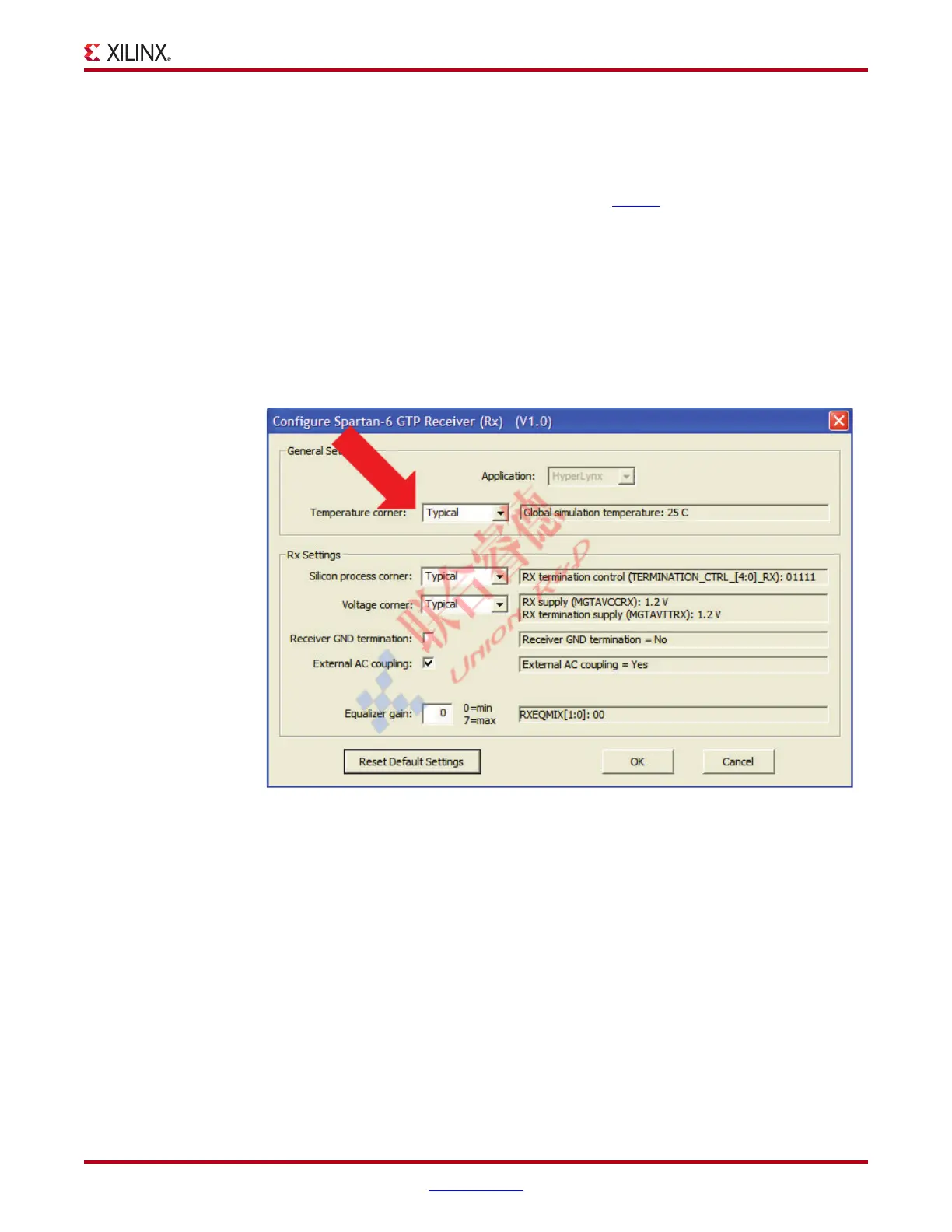

Figure 1-5: Configure Spartan-6 FPGA Receiver
UG396_c1_05_042010
