Rev.: 20191108
Platform: DBALL2
Firmware: BMW03
© 2019 Directed. All rights reserved.
Wires are listed by pin numbers. This display is not representative of connector pin layouts, which are often stacked.
With the exception of the OBII Diagnotistic plug, all connectors are displayed from the wire side.
Remote
Starter
10
Programming button
LED
14
122
5: Orange/Green: FT CAN High
6: Orange/Brown: FT CAN Low
6: Gray: (+) KIBMW5 Output
2: Green/Black: (-) Handbrake Status Output
3: Green/White: (-) KIBMW5 Output
7: Brown: NO Relay1
10: Orange/Red: NC Relay2
8: Yellow: COM Relay1
11: Yellow/Red: COM Relay2
4: Red/Black: (-) KIBMW5 Output
RF Loop connector
(+) 12 V
(-) Ground
(+) Ignition Intput
Twisted pair in driver kick panel
P#: XKD2D65
7: Gray/Black: (+) Ignition Status Output
10: Yellow/Black: (+) KIBMW5 Output
D2D
D2D
* - wire colours may vary by vehicle model
CUT
Located at
Clutch pedal
Clutch switch
Blue/Black*
Violet/Yellow*
Blue/Brown*
Brown/Black*
1
2
3
4
Blue/Black
Violet/Yellow
Blue/Brown
(-) Handbrake Status Input
BCM
5: Violet/White: (AC) Tach Output
(AC) Tach Input
CAN High: Black
CAN Low: Yellow

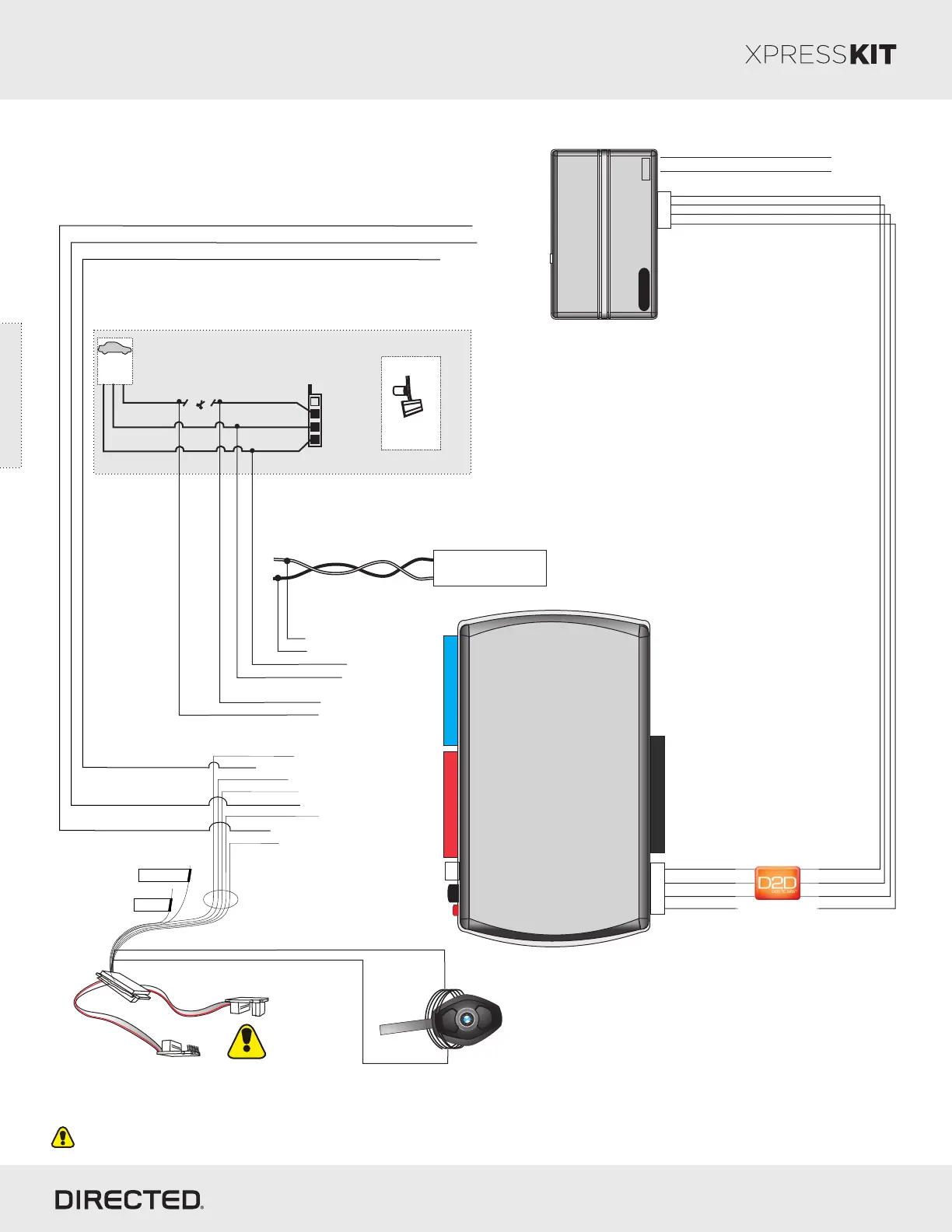

INSTALLATION - TYPE 3 (Manual Transmission)
Connections between
DBALL and KIBMW5
module are ready-made
KIBMW5 MODULE
(+) 12v
(-) Ground
Connect the KIBMW5 Cable to the Ignition Switch
after programming the DB-ALL module
12
turns
Make 12 loops and place them around
the front of the plastic body
of the vehicle’s coded key as shown.
1: Black/White: (-) KIBMW5 Output
* - wire colours may vary by vehicle model
Page 10
DBALL/
DBALL2
