Rev.: 20191108
Platform: DBALL2
Firmware: BMW03
© 2019 Directed. All rights reserved.

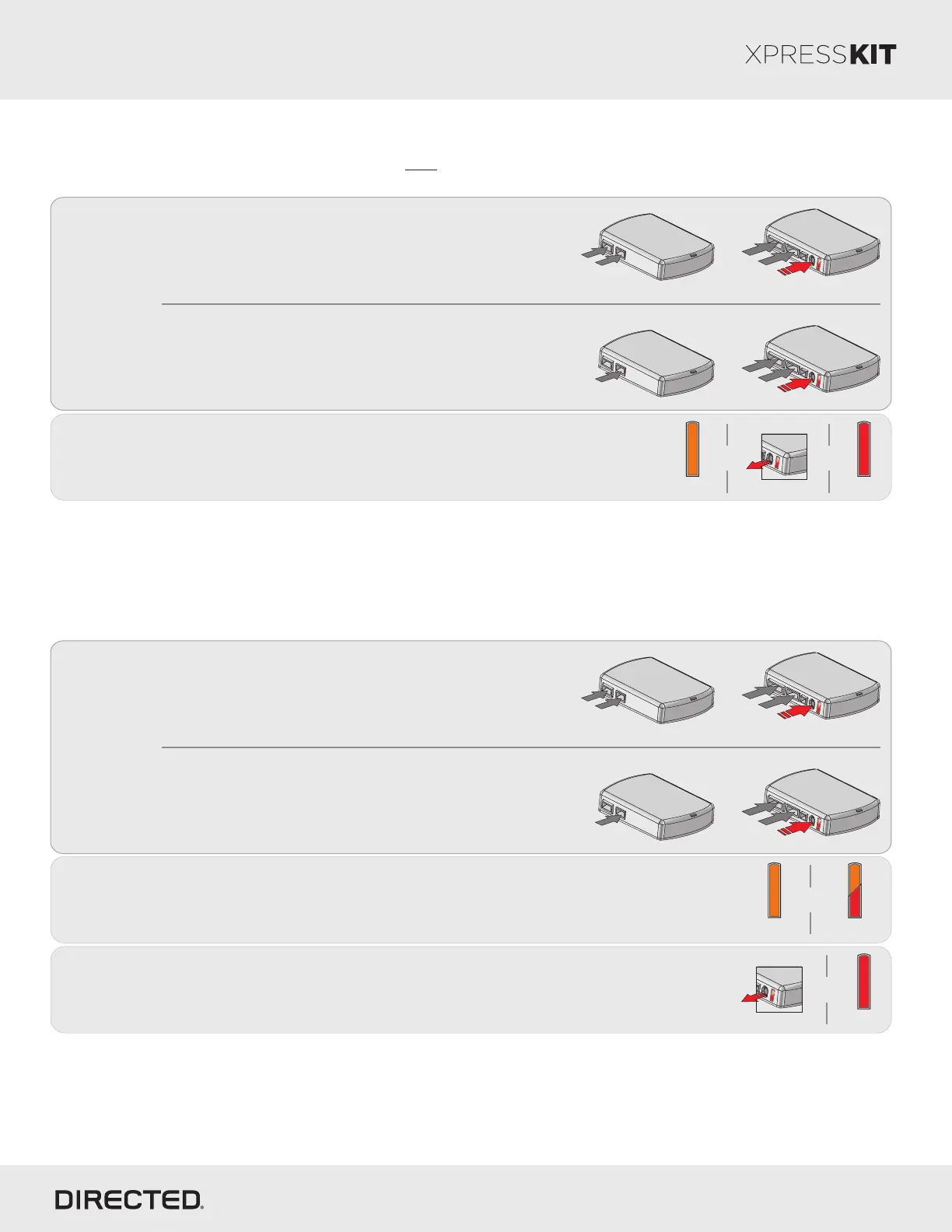

Module Reset
2
& &
Solid Solid
Release
Wait 3 seconds until the LED turns ON solid orange then release the
programming button. The LED then turns ON solid red.
A module reset will erase the module programming only (bypass, convenience and vehicle detection). All the settings
configured on the module using the web config tool will remain untouched.
1
OR
If required for your installation, connect the 10-pin, 12-pin &
14-pin harnesses to the module. Press and hold the
programming button, then connect the 4-pin D2D harness.
D2D Installation
If required for your installation, connect the 10-pin & 12-pin
harnesses to the module. Press and hold the programming
button, then connect the 14-pin harness to the module.
W2W Installation
10-pin
D2D
st
1
12-pin
14-pin
nd
2
th
4
rd
3
10-pin
D2D
st
1
th
5
12-pin
14-pin
nd
2
rd
3
th
4
2
Solid
&
Solid
Flashes
&
Release
3
Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds
until the LED starts to flash orange and red.
Release the programming button. The LED turns ON solid red.
Warning Against Executing a Hard Reset!
A hard reset will erase all the data stored in the DBALL and will change all the settings configured on the module to its
default values. After a hard reset, you may have to reconfigure your DBALL if your installation requires specific options,
not part of the default configuration. See the Feature & Option List section of this guide.
1
OR
If required for your installation, connect the 10-pin, 12-pin &
14-pin harnesses to the module. Press and hold the
programming button, then connect the 4-pin D2D harness.
D2D Installation
If required for your installation, connect the 10-pin & 12-pin
harnesses to the module. Press and hold the programming
button, then connect the 14-pin harness to the module.
W2W Installation
10-pin
D2D
st
1
12-pin
14-pin
nd
2
th
4
rd
3
10-pin
D2D
st
1
th
5
12-pin
14-pin
nd
2
rd
3
th
4
Hard Reset
Page 13
