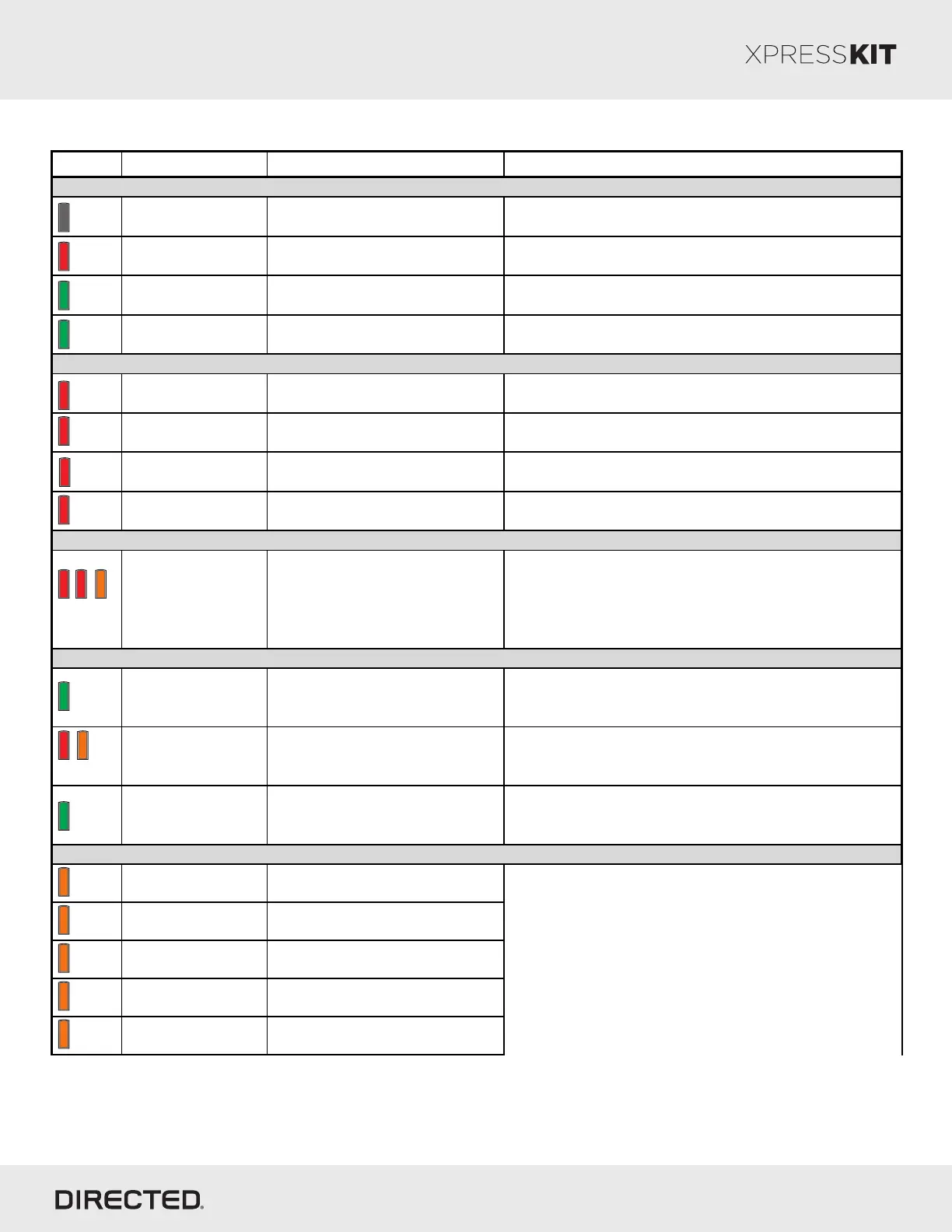

Description Troubleshooting
Module Programming
Off Module has no power. Check the power connections.
Solid red
Module is powered. Waiting for
programming to begin.
Check if the ignition input is properly connected.
Flashing green
continuously
Module has detected IGN ON.
Detection in progess.
The CAN wires may be incorrectly connected. Refer to
the wiring diagram to make the right connections.
Solid green for 3
seconds
Module was successfully
programmed with transponder.
Normal operation.
Module Programming - Error codes
Flashes red x 1 FT CAN not detected
The CAN wires may be incorrectly connected. Refer to
the wiring diagram to make the right connections.
Flashes red x 2 HS CAN not detected
The CAN wires may be incorrectly connected. Refer to
the wiring diagram to make the right connections.
Flashes red x 9 Invalid CAN network
The CAN was detected but the ignition message on CAN
is not detected. Check if the firmare is correct.
Flashes red x 11 Internal error Report issue to technical support
External Module Synchronisation
Flashes red, red,
then orange x 10
OBDII feature not supported.
Diagnostic data bus not detected. Some features are not
supported by SmartStart. This can be caused by missing
wire connections or module hardware limitation. Refer to
the wiring installation section to check the connections.
Active Ground While Running
Flashes green
GROUND OUT ON (GWR)
command received.
Otherwise, the Ground While Running (status) signal was
lost or was never received by the module. Commands
can come from RF, D2D or W2W.
Flashes red &
orange
IGNITION ON command
received.
Otherwise, the ignition signal was not received by the
module. In a W2W install, it will show only if the ignition
input wire is used.
Flashes green
quickly
START ON command received.
Otherwise, the start signal was not received by the
module. In a W2W install, it will show only if the ignition
input wire is used.
D2D and W2W Commands
Flashes orange x 1 LOCK command received.
Flashes orange x 2 UNLOCK command received.
Flashes orange x 3 TRUNK command received.
Flashes orange x 4 AUX1 command received.
Flashes orange x 5 AUX2 command received.
Normal operation.
