Xtralis VESDA-E VEU-A00 User Manual

VESDA-EVEU-A00 Product Guide
www.xtralis.com 17
4 Installation
The VEU-A00 detector is shipped with the following components:
l 1 VESDA-E VEU-A00 detector
l Installation Sheet
l Mounting bracket
l Mounting template for directly mounting the detector to the mounting surface
l Exhaust Adaptor (USonly)
l 1 End of Line resistor for the monitored GPI
Check all components for damage and refer any concerns to your authorized representative.
Depending on the nature of the installation, it may be necessary to procure the following items:
l The latest revision of this full product guide can be downloaded from the partner extranet at
www.xtralis.com.
l A 24 VDC Power Supply and backup battery, compliant with local fire protection codes and standards.
l Screws and inserts for the mounting bracket that are appropriate for the installation location.
l Type A to Type B USB Interface Lead, required for initial configuration of the detector (Figure4-1).
l Wrist strap for ESD prevention.

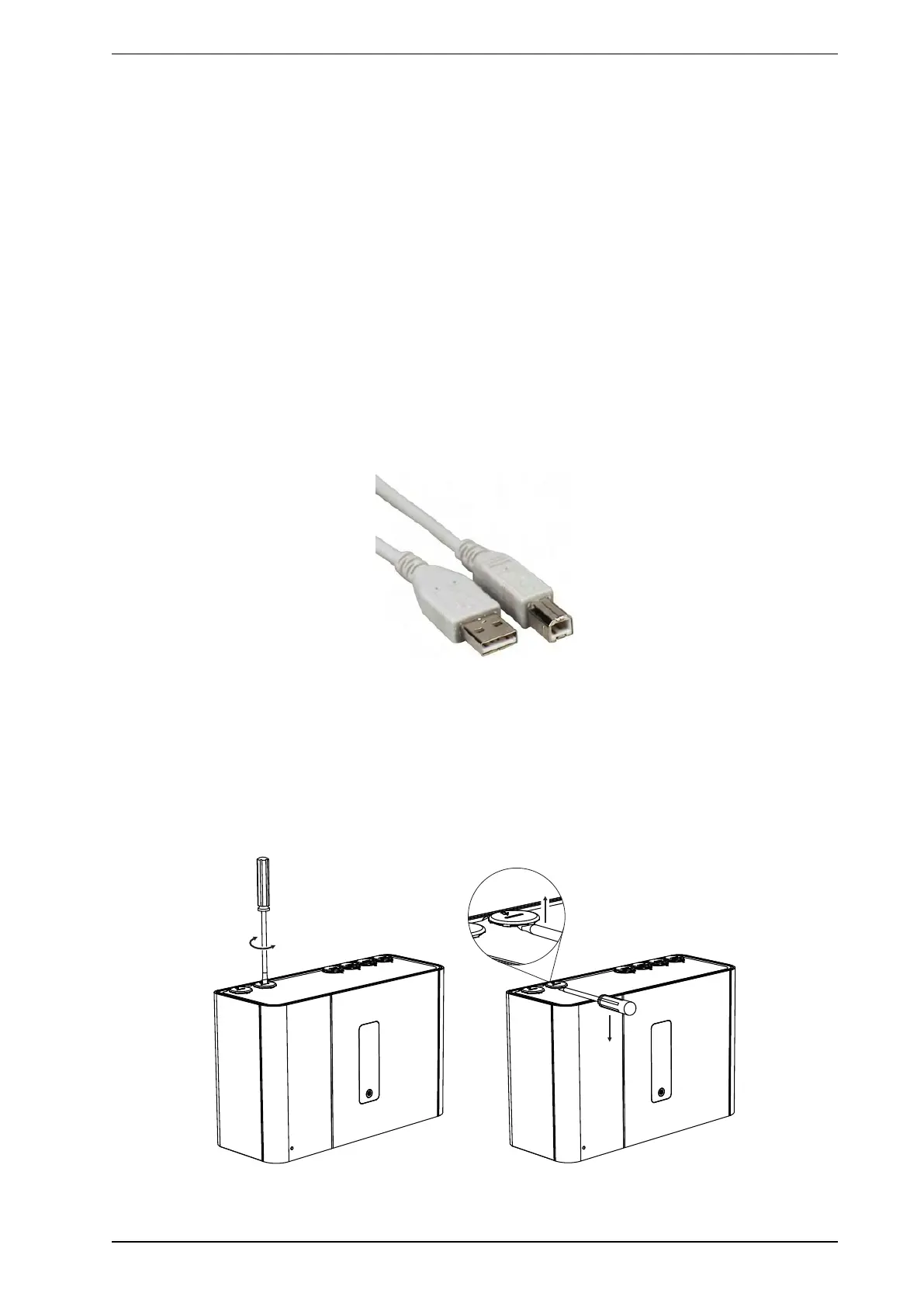

Figure4-1: Type A to Type B USBInterface Lead
4.1 Prepare the Detector
l Remove tape from the exhaust port.
l Invert the fascia if required. Refer to Section 4.2.1 for further information.
l Remove cable and pipe inlet plugs as required. Place a large screwdriver in the large slot and twist (A), or
use a small screwdriver in the side slots (B) to lever the plug out (Figure4-2). Use the edge of the
detector (C) for a lever point to avoid marking the case.
A
B
C
Figure4-2: Remove Cable and Pipe Inlet Plugs
