FTA-450L OperATing MAnuAL
15
Before you BegIn

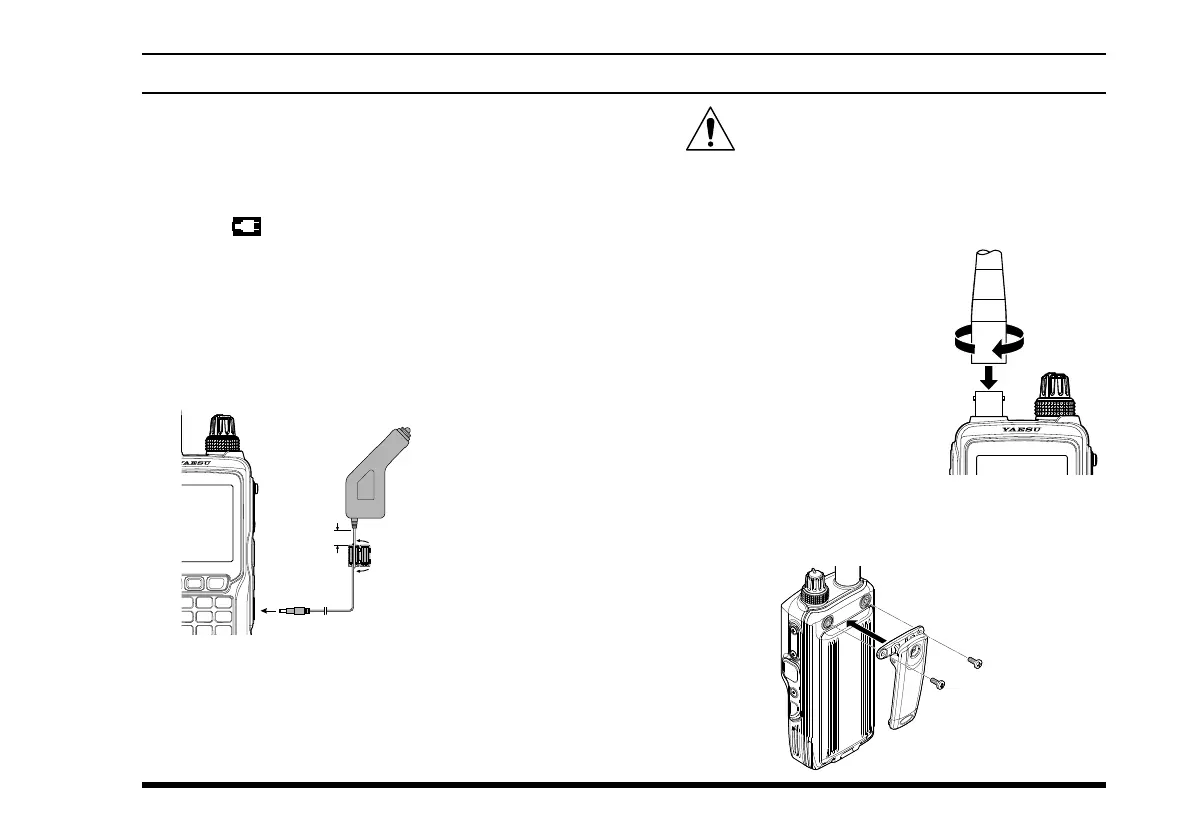

External DC Power Supply Connection
You may insert the cable plug of the optional
SDD-12
Cigarette Lighter DC/DC Converter into the
EXT DC
jack located on the right side of the transceiver. In this
case, the “ ” icon will appear in the top right corner
of the LCD display.
When making DC connections via the
SDD-12
, be ab-
solutely certain to observe the proper voltage level and
polarity guidelines.
The
SDD-12
can be connected to 12 to 24 Volt DC
power sources.
Do not connect any accessory unapproved
by YAESU to supply DC power; otherwise
the
FTA-450L
may be damaged.
Antenna Installation
To attach the supplied antenna to the
FTA-450L
,
grasp the base of the antenna
rmly, and exert a moderate
“pinching” pressure on the
base as you press the antenna
onto the radio’s antenna con-
nector. While exerting this
pressure, rotate the antenna
clockwise 1/4 turn to lock the
antenna in place.
Belt Clip Installation
You may mount the clip to the rear of the
FTA-450L
using the supplied screws.
DATA
MIC/SP
EXT
DC
DATA
MIC/SP
EXT
DC
SHB-11
Belt Clip
with two screws (M3 x 8)
SDD-12
Cigarette Lighter DC/DC
Converter (12 to 24 Volts)
Ferrite Core
Wind the cable one turn,
then snap two halves
As close
as possible
For noise reduction from exogenous noise, wind one
turn of the
SDD-12
cable around the ferrite core,
and snap its two halves together, per the illustration
above. Attach the ferrite core as close as possible to
the
SDD-12
body, as shown.
To Next Page
