Metering 23
01V96i—Owner’s Manual
Operating Basics
Metering
This section describes how to check Input and Output
Channel levels using the Meter pages.

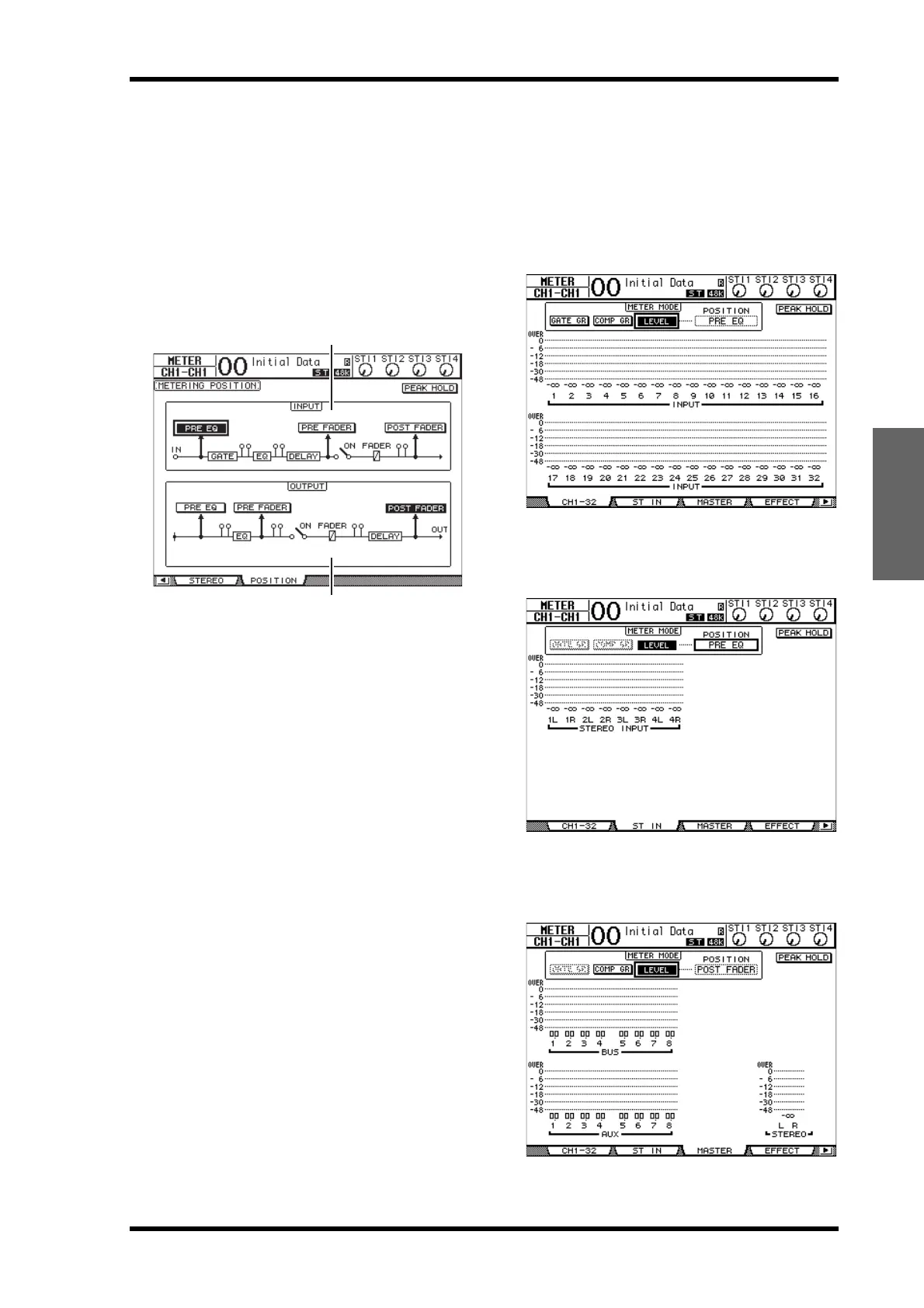

1. Press the FADER MODE [HOME] button
repeatedly until the Meter | Position
page appears.
This page enables you to set the metering position
for Input and Output Channels.
1 INPUT section
This section enables you to select the metering
position for Input Channel and ST IN Channel sig-
nals.
2 OUTPUT section
This section enables you to select the metering
position for Output Channel (Aux Out 1–8, Bus
Out 1–8, Stereo Out) signals.
2. Move the cursor to the desired parame-
ter button in the INPUT or OUTPUT sec-
tion, then press [ENTER].
You can select one of the following three positions
in each section.
• PRE EQ ................Immediately before EQ.
• PRE FADER........Immediately before the fader.
• POST FADER.....Immediately after the fader.
3. Press the FADER MODE [HOME] button
repeatedly until the page listed below
that contains the desired channels
appears.
•CH1-32 page
This page displays the Input Channel 1–32 levels
respectively.
•ST IN page
This page displays the left and right ST IN Channel
1–4 levels separately.
•Master page
This section displays the Output Channel (Aux Out
1–8, Bus Out 1–8, Stereo Out) levels altogether.
1
2

Yamaha 01V96i Specifications

General

Sample rate	96 kHz
Channels quantity	36 channels
Power consumption (typical)	90 W
DJ mixer	No
USB port	Yes
Apple docking compatibility	Not supported
USB 2.0 ports quantity	1

Weight and Dimensions

Depth	548 mm
Width	436 mm
Height	148 mm
Weight	14000 g
