Tutorial 31
01V96i—Owner’s Manual
Tutorial
Tutorial
This chapter describes operations on the 01V96i, orga-
nized according to their purpose.
Input and Output
Patching
The 01V96i allows you to freely connect external
input/output connectors to the inputs and outputs of
the internal mixer. The procedure is as follows.
Input Patching

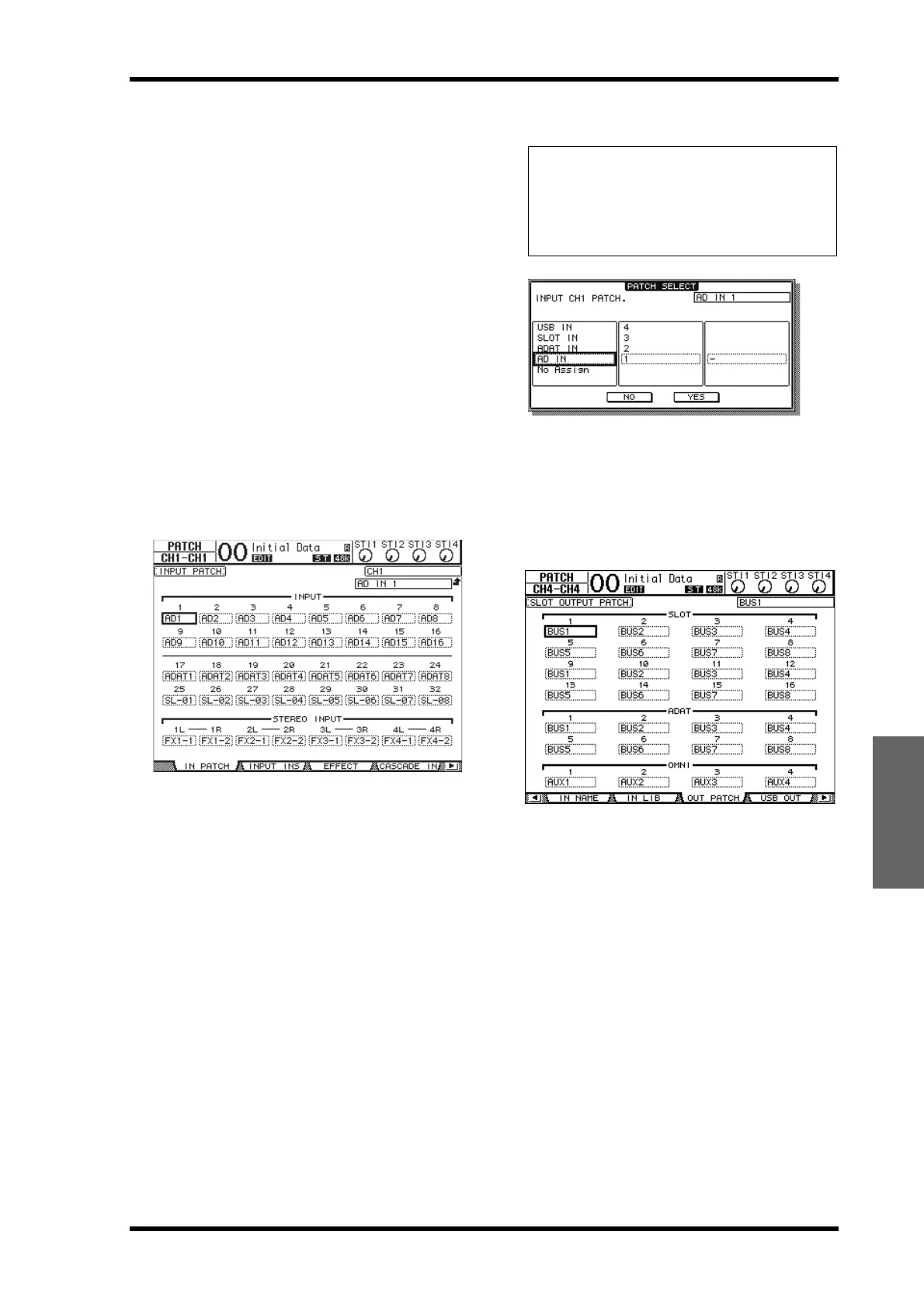

1. Press the DISPLAY ACCESS [PATCH] but-
ton repeatedly until the Patch | In Patch
page page appears.
By default, signals from the instruments or mics
connected to INPUT connectors 1–16 are sent to
Input Channels 1–16. Input signals from the ADAT
IN connector are sent to Input Channels 17–24, and
input signals from the slot are sent to Input Chan-
nels 25–32.
2. Move the cursor to the parameter box of
the input channel for which you want to
change the assignment, and use the
Parameter wheel or the [INC]/[DEC] but-
tons to modify the patching.
3. Press [ENTER] to confirm the change.
Output Patching
1. Press the [PATCH] button repeatedly
until the Patch | Out Patch page appears.
By default, the patching will be as shown in the
illustration.
2. As you did when making input patch set-
tings, move the cursor to the parameter
box of the output channel, and use the
Parameter wheel or the [INC]/[DEC] but-
tons to modify the patching.
3. Press [ENTER] to confirm the change.
Note: Alternatively, you can move the cursor to the
input channel’s parameter box and then press
[ENTER], and make a selection in the “PATCH
SELECT” box. In this case, select the desired input con-
nector and channel number, and press [INC] to con-
firm the change.
