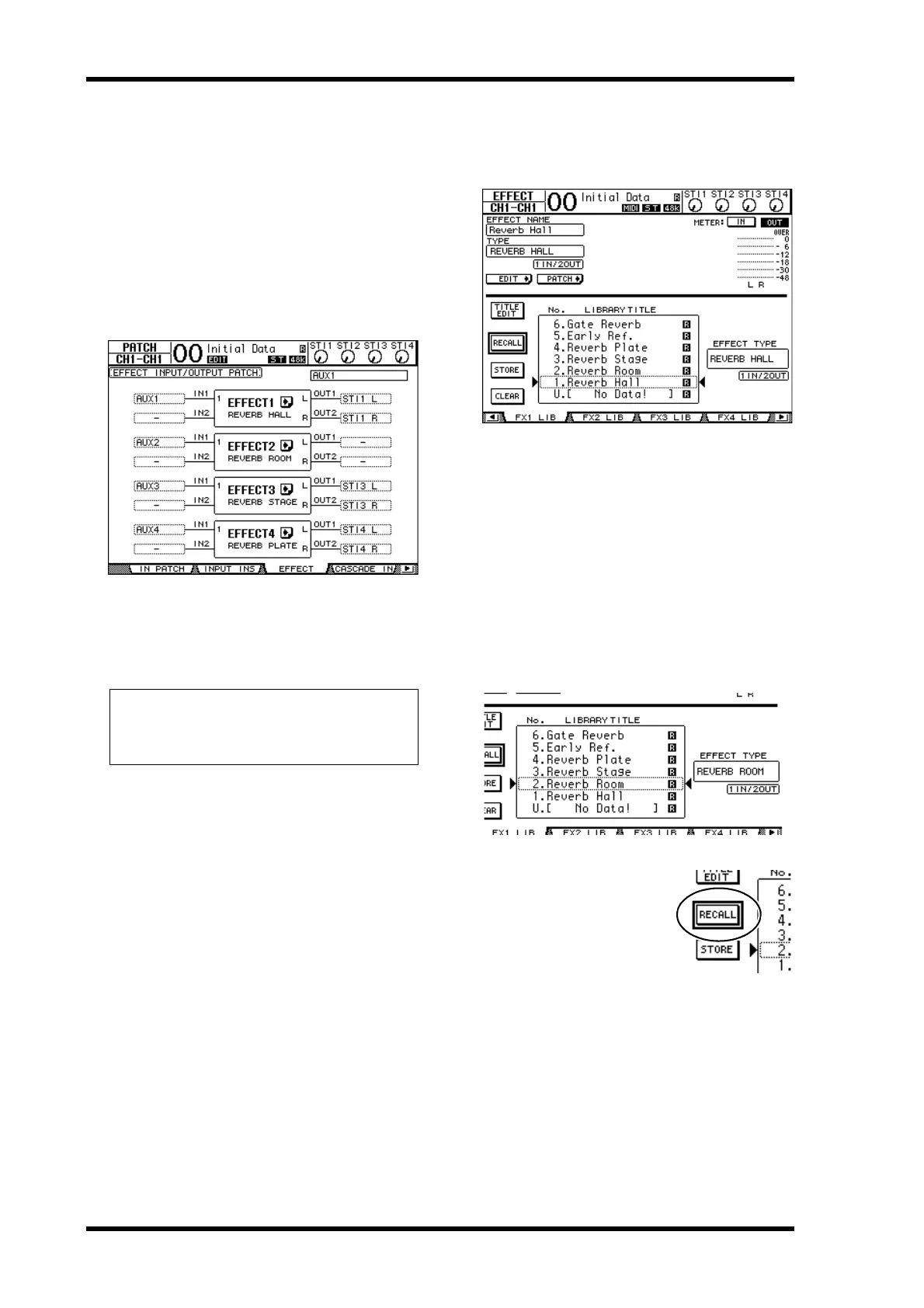

38 Tutorial
01V96i—Owner’s Manual
Using the Internal Effects
The 01V96i features four internal multi-effects proces-
sors that can be used via Aux Sends and Returns or by
inserting them into specific channels. This section
describes how to use internal Effects processor 1 via
Aux Send 1, and apply reverb to the track signals.
1. Press the DISPLAY ACCESS [PATCH] but-
ton repeatedly until the Patch | Effect
page appears.
This page enables you to patch the inputs and out-
puts of Effects processors 1–4. By default, Aux Send
1 is patched to the input of Effects processor 1, and
the output of Effects processor 1 is patched to ST IN
Channel 1 L and R, as shown in the diagram above.
2. Make sure that the [ON] button for ST IN
Channel 1 in the ST IN section is turned
on.
3. Press the DISPLAY ACCESS [EFFECT] but-
ton repeatedly until the Effect | FX1 Lib
page appears.
The Effect | FX1 Lib page enables you to recall effect
programs to be used by Effects processor 1 from the
Effects library, and store the current effects settings
of Effects processor 1 to the Effects library.
Select from the list in the center column a program
memory to which you wish to store the effects set-
tings, or a program memory that you wish to recall.
The selected program appears inside the dotted
box.
4. Rotate the Parameter wheel and select
“2. Reverb Room”
Here we’ll use room reverb as an example.
5. Move the cursor to the
RECALL button located
to the left of the list,
then press [ENTER].
Effect program “Reverb
Room” is loaded into Effects
processor 1.
6. press the [EFFECT] button repeatedly
until the Effect | FX1 Edit page appears.
Adjust the parameters as desired.
7. Press the LAYER [1–16] button.
Input Channel Layer 1–16 is selected for control
from the channel strip section.
Tip: If the patch for internal Effects processor 1 is dif-
ferent from the above, use the Parameter wheel or
[INC]/[DEC] buttons, and the [ENTER] button to
change the patch.
To Next Page
