8-12
EBU11453
Final gear oil
Checking the final gear oil
1. Place the ATV on a level surface.
2. Remove the oil filler bolt, and then check
the oil level in the final gear case.
NOTE:
_
The oil level should be at the brim of the filler
hole.
_
3. If the oil is below the brim of the filler hole,
add sufficient oil of the recommended
type to raise it to the correct level.
CAUTION:
_
Be sure no foreign material enters the final
gear case.
_
4. Install the oil filler bolt, and then tighten it
to the specified torque.

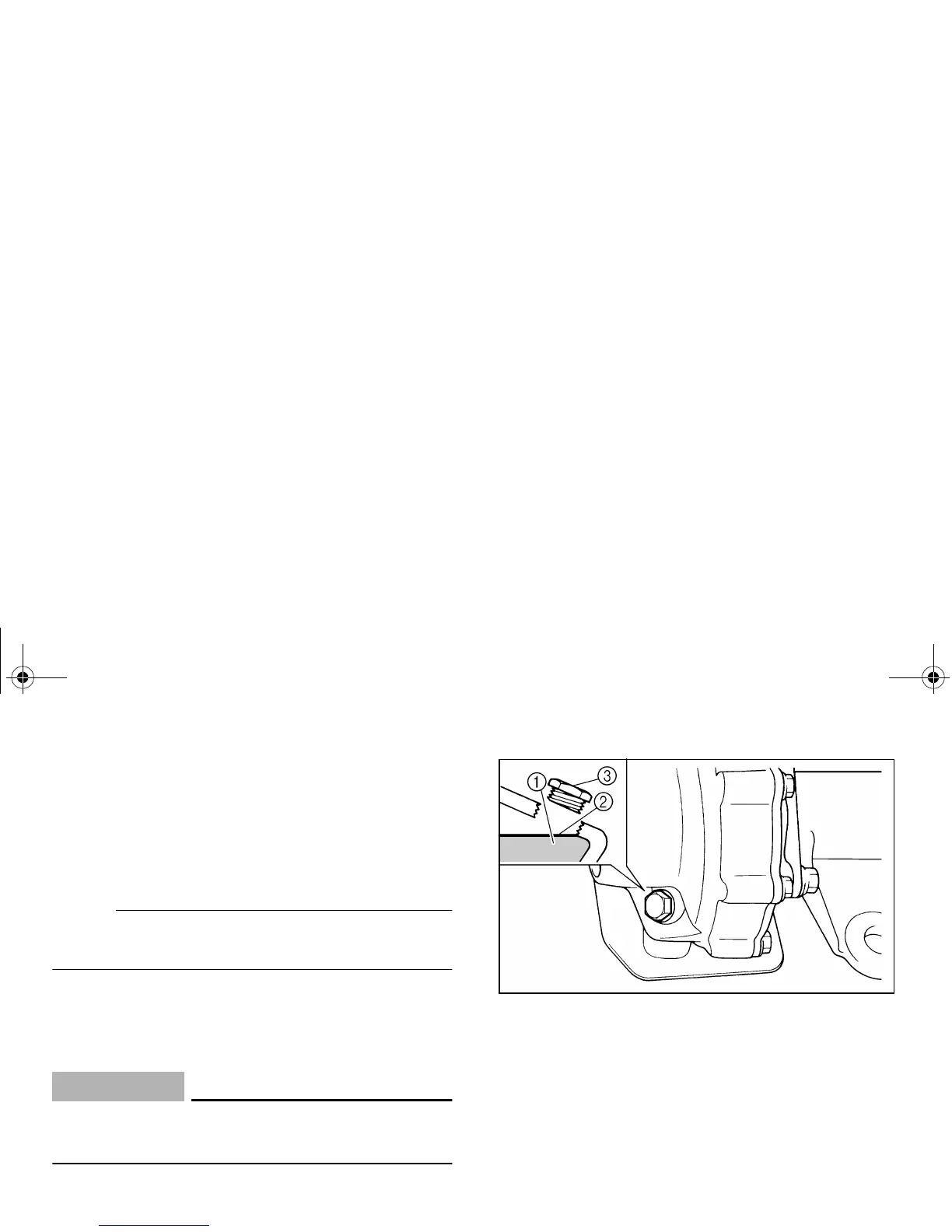

1. Final gear oil 2. Correct oil level
3. Final gear oil filler bolt
Tightening torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 16 ft·lbf)
