Fuse replacement
1. The fuse case is located under the seat.
2. If the fuse is blown, turn off the main
switch and install a new fuse of the spec-
ified amperage. Then turn on the switch-
es. If the fuse immediately blows again,
consult a Yamaha dealer.

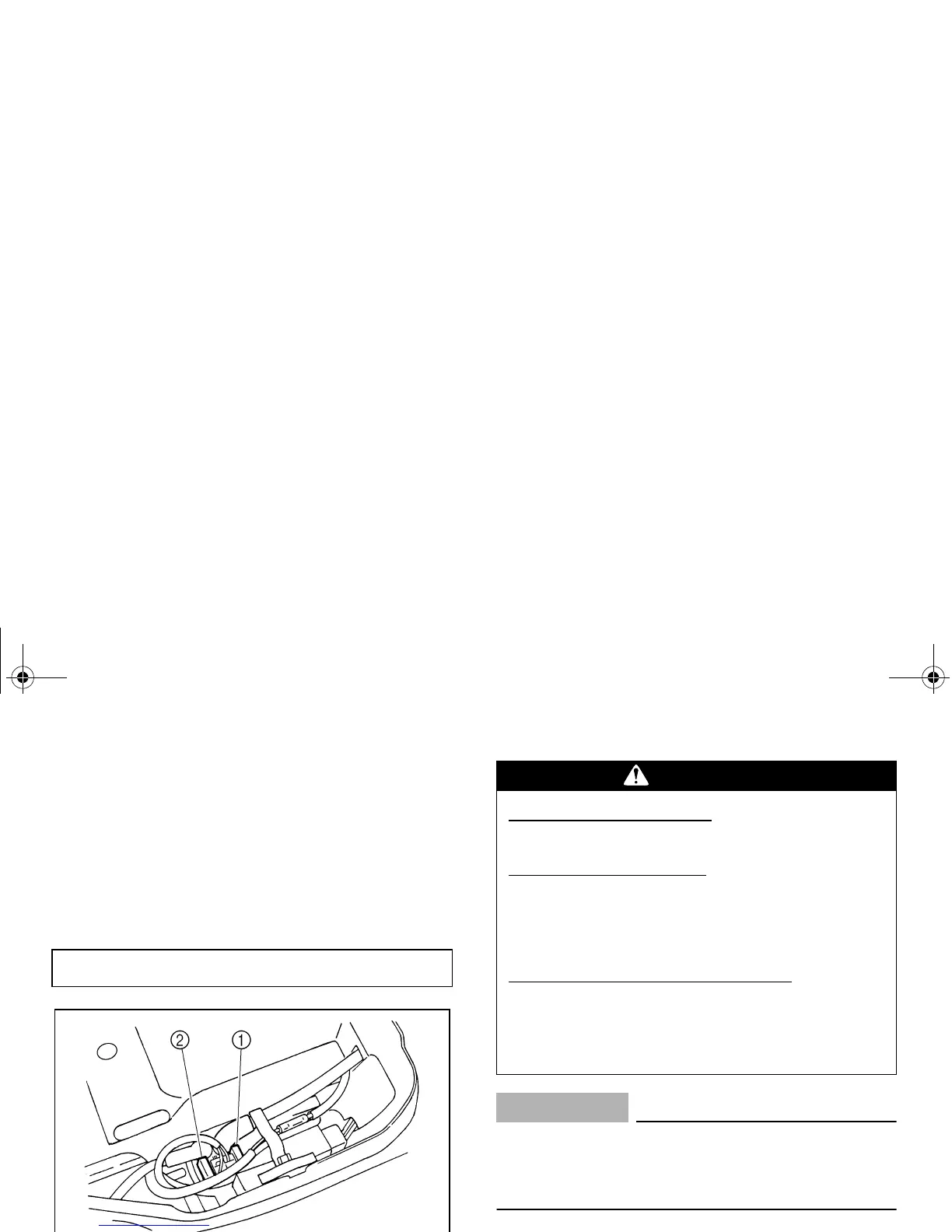

1. Fuse 2. Spare fuse
CAUTION:
To prevent accidental short-circuiting,
turn off the main switch when checking or
replacing a fuse.
Specified fuse: 20.0 A
WARNING
POTENTIAL HAZARD
Using an improper fuse.
WHAT CAN HAPPEN
An improper fuse can cause damage to
the electrical system which could lead
to a fire.
HOW TO AVOID THE HAZARD
Always use a fuse of the specified rat-
ing. Never use a material in place of the
proper fuse.
