4-16
EBU00582
Front carrier
EBU00583
Rear carrier
EBU01103

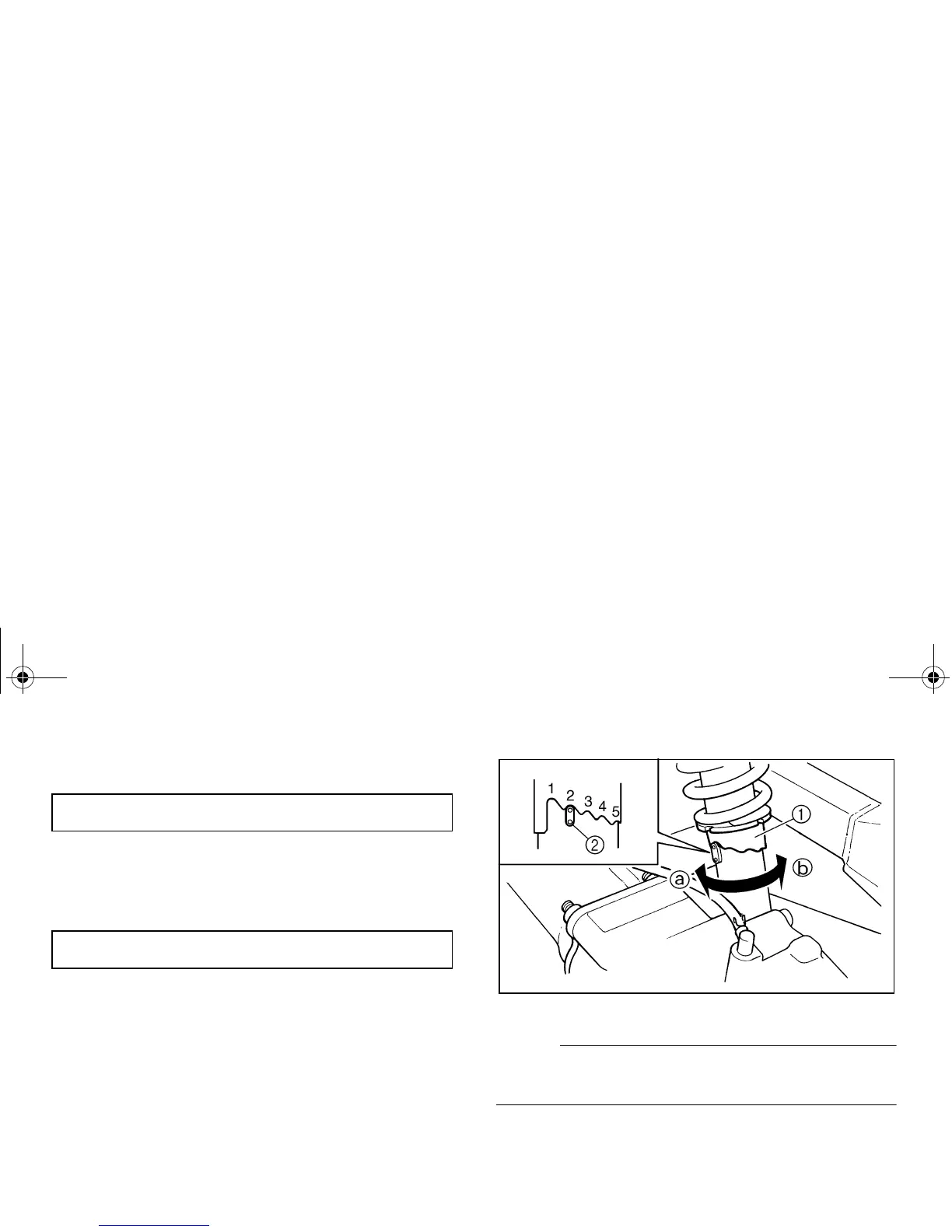

Rear shock absorber adjustment
The spring preload can be adjusted to suit the
rider’s weight and riding conditions.
Adjust the spring preload as follows:
To increase the spring preload, turn the ad-
justing ring in direction
a
.
To decrease the spring preload, turn the ad-
justing ring in direction
b
.
1. Spring preload adjusting ring 2. Position indicator
NOTE:
_
A special wrench can be obtained at a
Yamaha dealer to make this adjustment.
_
Maximum load limit: 30 kg (66 lb)
Maximum load limit: 45 kg (99 lb)
