Adjusting the brake pedal and rear brake
lever
Adjusting the brake pedal height
1. Remove the footboard. (See page 8-8.)
2. Loosen the adjusting bolt locknuts.
3. Turn the adjusting bolt so that the top of
the brake pedal is positioned 43–53 mm
(1.69–2.09 in) above the top of the foot-
board bracket.

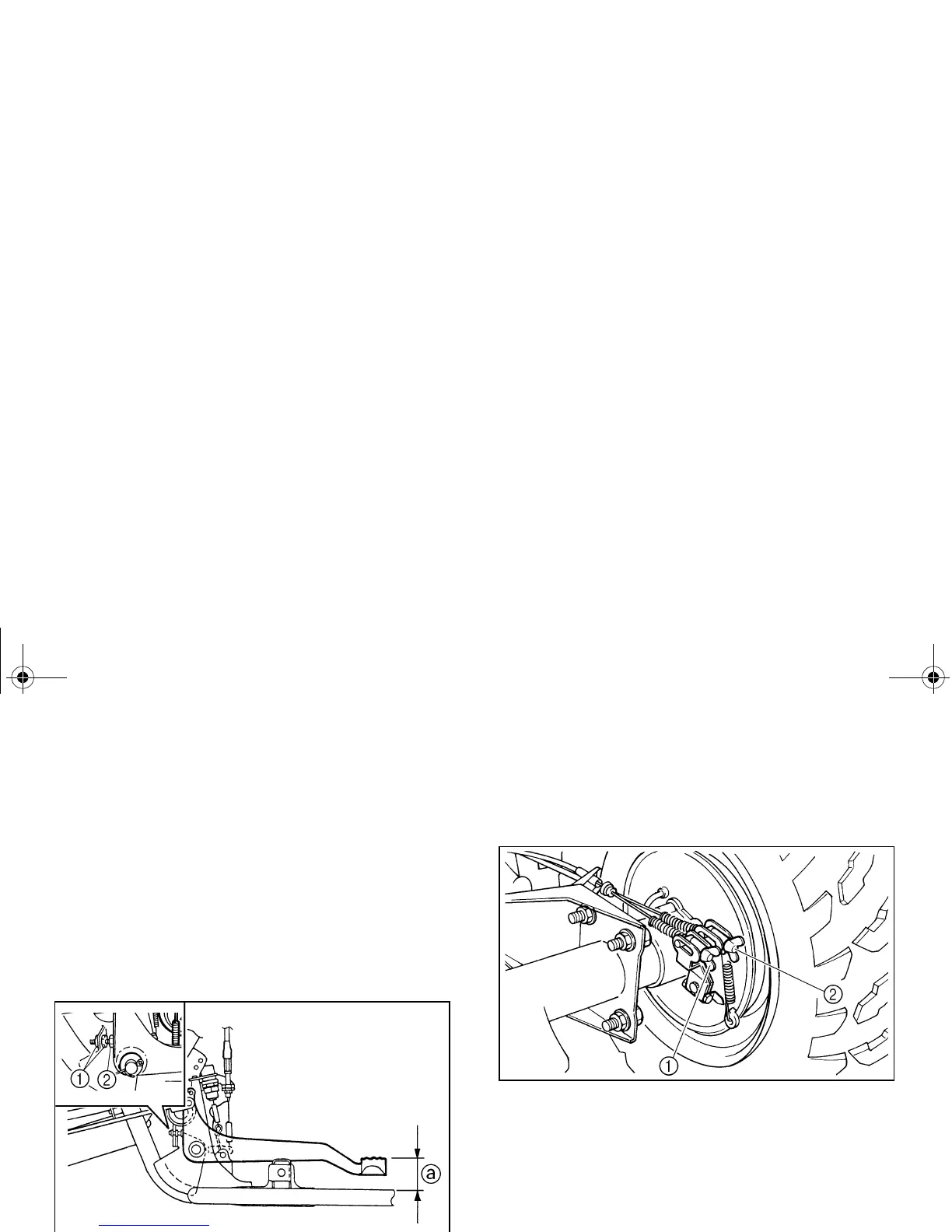

1. Locknut (× 2) 2. Adjusting bolt
a. Brake pedal position
4. Tighten the adjusting bolt locknuts.
Adjusting the brake pedal free play
1. Fully loosen the brake cable adjusting
nut.
1. Adjusting nut (brake cable) 2. Adjusting nut (brake rod)
