Yamaha F200CET User Manual

3-46

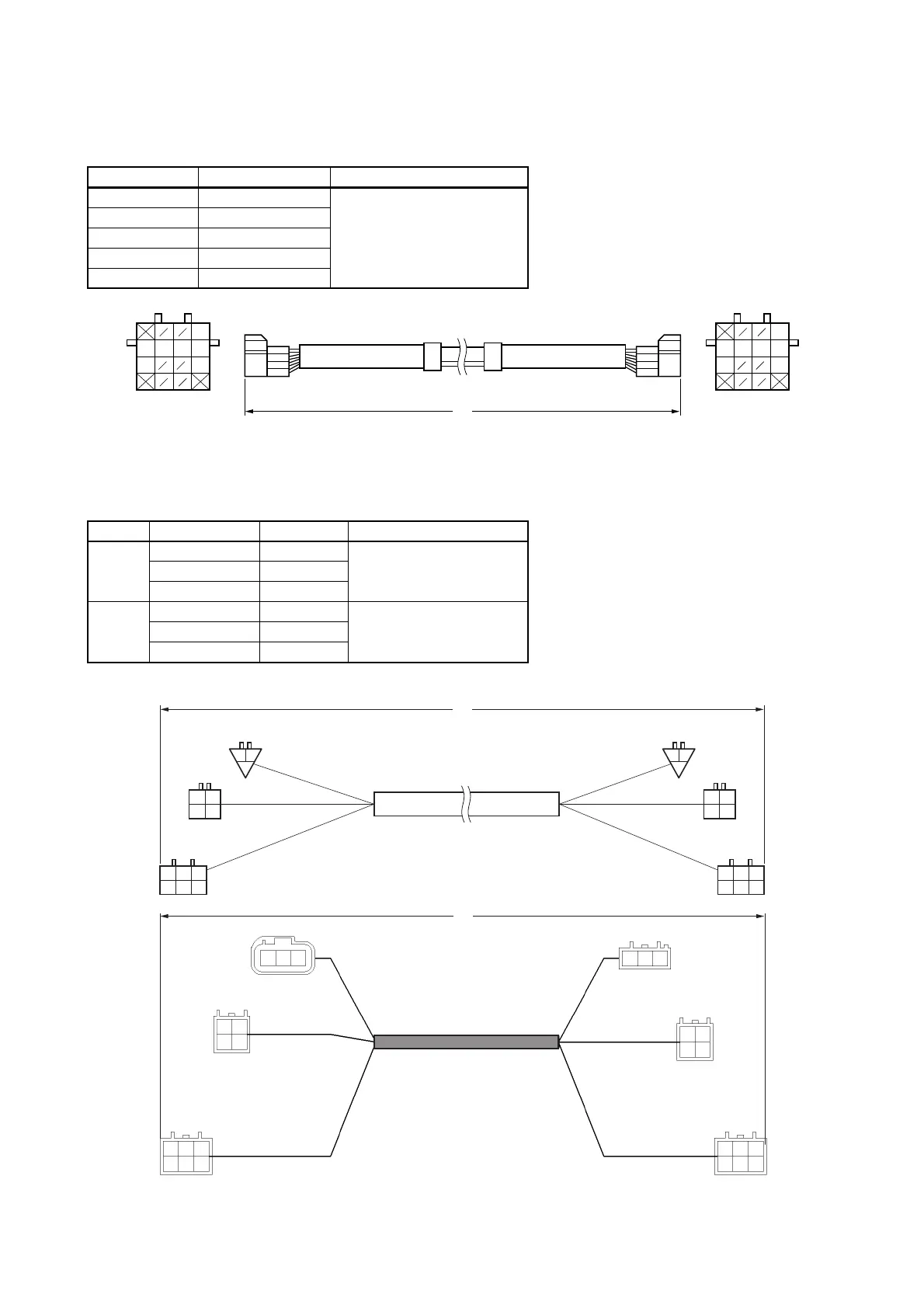

DIGITAL ELECTRONIC REMOTE CONTROL WIRE HARNESS
MAIN WIRE HARNESS
Used to connect between engine and remote control unit
DUAL STATION WIRE-HARNESS (3-4-6P)
Used to connect between main RC and 2nd RC
Part No. Length (L) Remarks
6X6-8258A-00 6 m (20 ft)
For DEC unit
6X6-8258A-10 7 m (23 ft)
6X6-8258A-20 8 m (26 ft)
6X6-8258A-30 10 m (32 ft)
6X6-8258A-40 12 m (38 ft)
Ref. No. Part No. Length (L) Remarks
1
6X6-8258A-A1 5 m (16 ft)
For previous DEC unit6X6-8258A-C1 8 m (26 ft)
6X6-8258A-E1 12 m (38 ft)
2
6X6-8258A-G1 5 m (16 ft)
For new DEC unit6X6-8258A-H1 8 m (26 ft)
6X6-8258A-J1 12 m (38 ft)
(L)
BR
L
B
R
W
W
B
W
R
W
Y
RB
Br
L
R
B
W
BR
L
B
R
W
W
B
W
R
W
Y
RB
Br
L
R
B
W
B R B
RBW
B R B
RBW
L W
L W
L W
L W
Br
X
Y Br
X
Y
(L)
1
L
L
W
YBrBr
W
L
L
W
YBrBr
W
W
B
B
R
R
B
W
B
B
R
R
B
(L)
2
